Firing Order: Notes

FIRING ORDER

Application

Firing Order

4-Cylinder ⁽¹⁾

Except Camry & Camry Solara

⁽²⁾ 1-3-4-2-

Camry & Camry Solara

⁽³⁾ 1-3-4-2

V6 ⁽⁴⁾

Avalon

⁽²⁾⁽⁵⁾ 1-2-3-4-5-6

Camry, Camry Solara & Sienna

⁽⁶⁾⁽⁷⁾ 1-2-3-4-5-6

Tacoma, Tundra & 4Runner

⁽⁶⁾⁽⁸⁾ 1-2-3-4-5-6

V8 ⁽⁹⁾

Land Cruiser & Tundra

⁽²⁾⁽¹⁰⁾ 1-8-4-3-6-5-7-2

⁽¹⁾	Cylinder No. 1 is located at timing belt or timing chain end of engine. Cylinder No. 4 is located at flywheel end of engine.

⁽²⁾	System uses a Distributorless Ignition System (DIS) with ignition coil on spark plug for each cylinder.

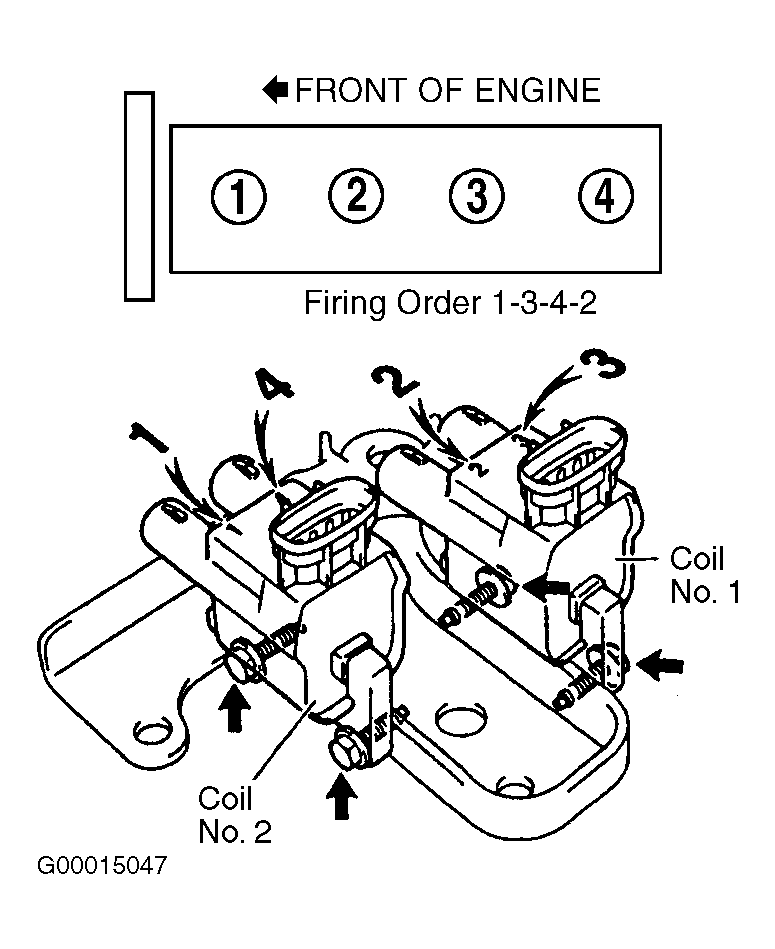

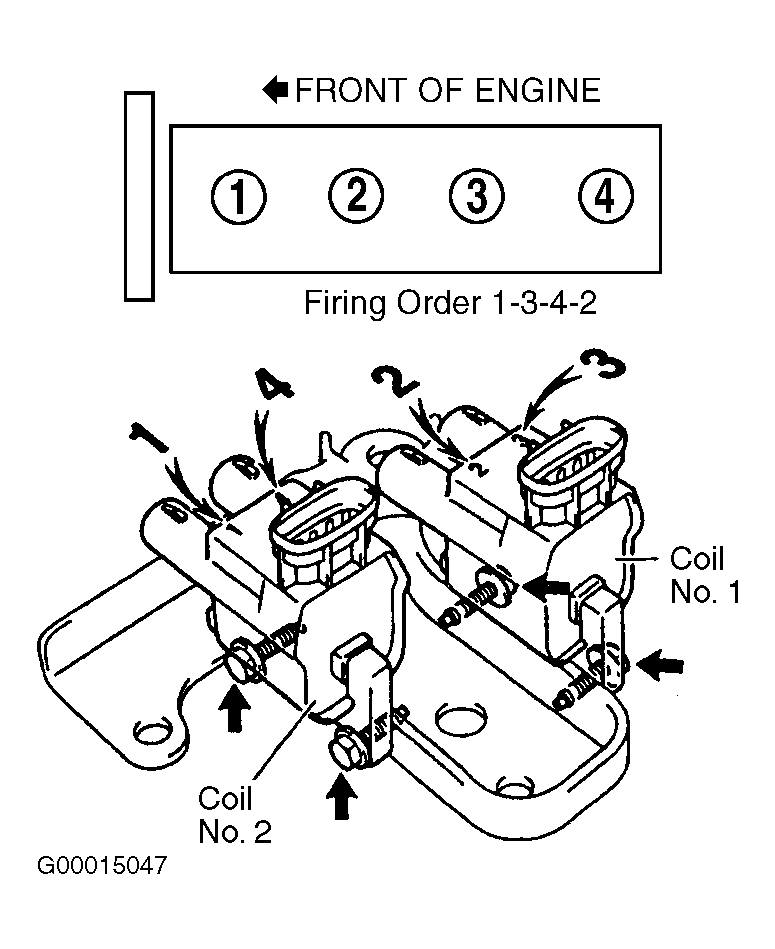

⁽³⁾	System uses a Distributorless Ignition System (DIS) with 2 ignition coils. Cylinders No. 1 and 4 use the same ignition coil. Cylinders No. 2 and 3 use the same ignition coil. See Figure

⁽⁴⁾

Cylinder No. 1 is front cylinder on right side of engine when viewed from flywheel end of engine. Cylinder No. 2 is front cylinder on left side of engine when viewed from flywheel end of engine. Cylinders No. 1, 3 and 5 are on right side of engine. Cylinders No. 2, 4 and 6 are on left side of engine.

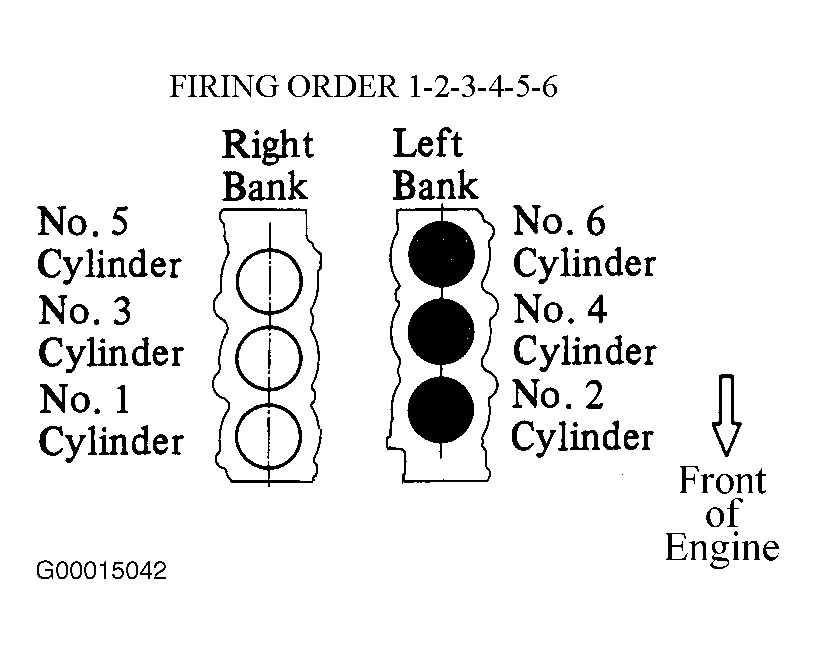

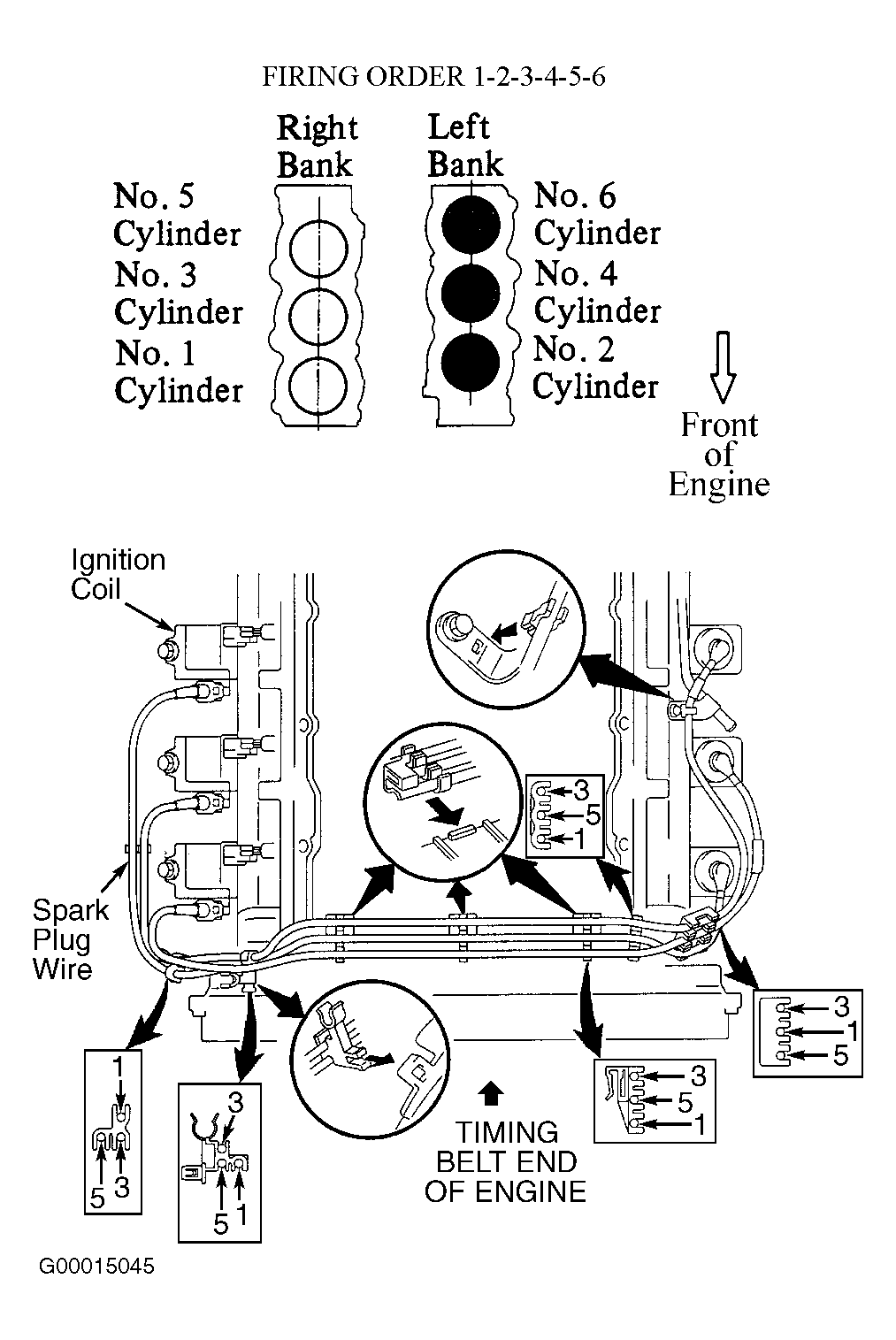

⁽⁵⁾	See Figure.

⁽⁶⁾	System uses a Distributorless Ignition System (DIS) with 3 ignition coils. Two cylinders fire simultaneously using same ignition coil.

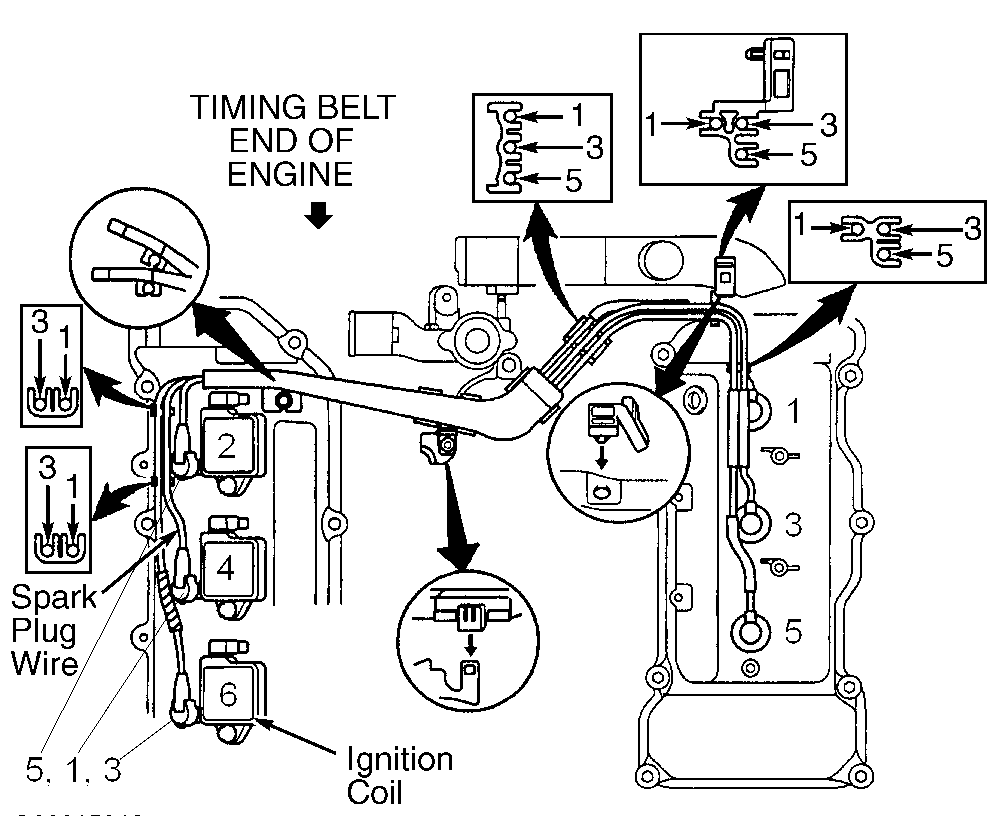

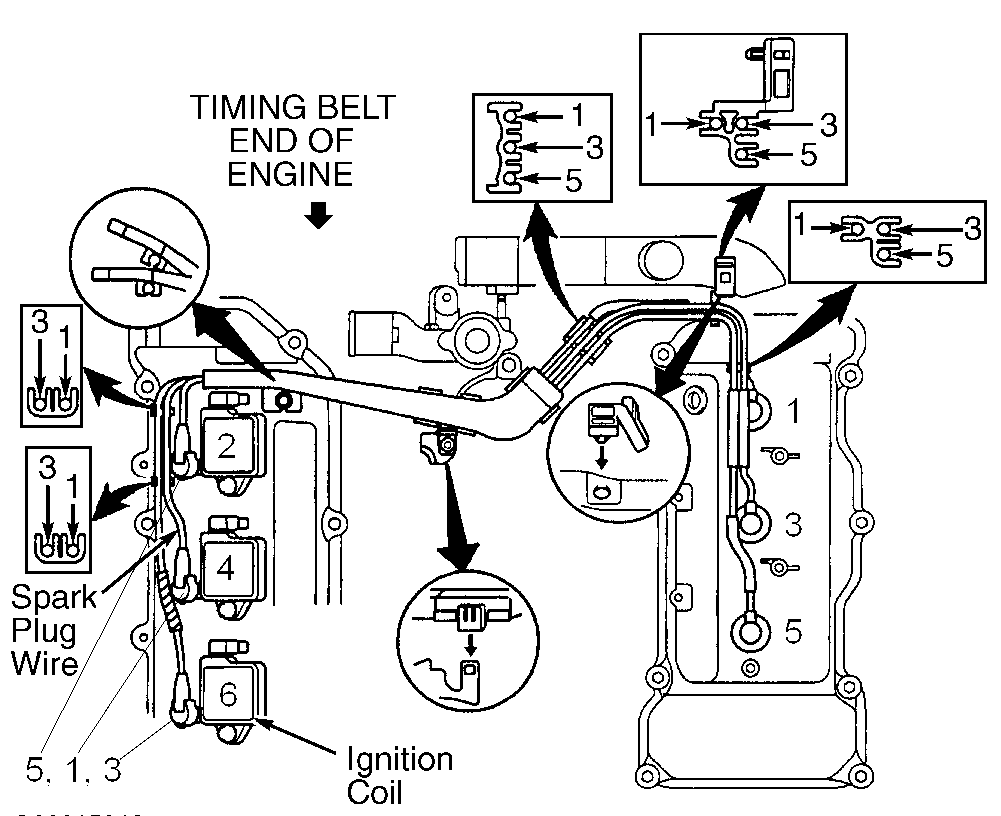

⁽⁷⁾	See Figure.

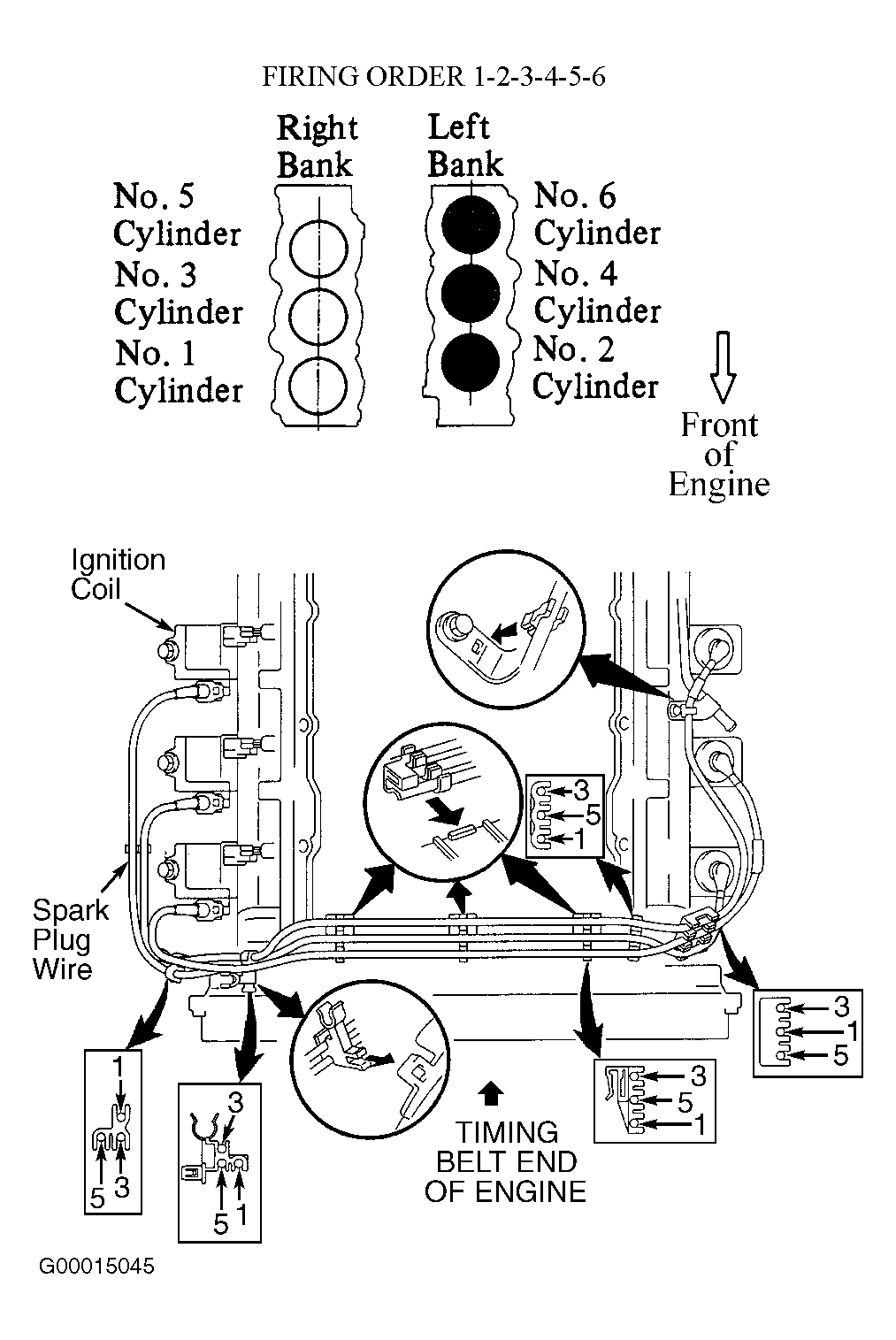

⁽⁸⁾	See Figure.

⁽⁹⁾

Cylinder No. 1 is front cylinder on left side of engine when viewed from flywheel end of engine. Cylinder No. 2 is front cylinder on right side of engine when viewed from flywheel end of engine. Cylinders No. 1, 3, 5 and 7 are on left side of engine. Cylinders No. 2, 4, 6 and 8 on right side of engine.

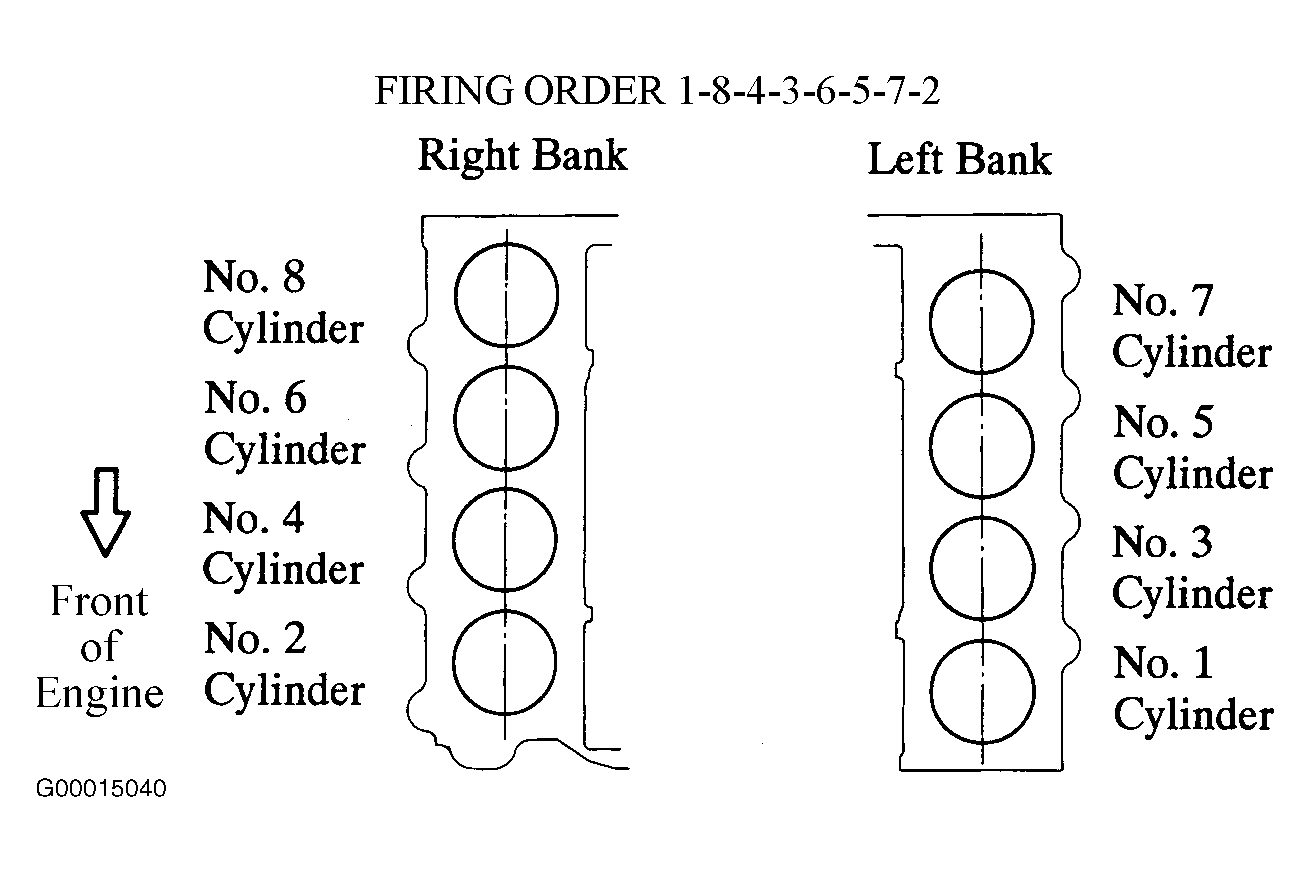

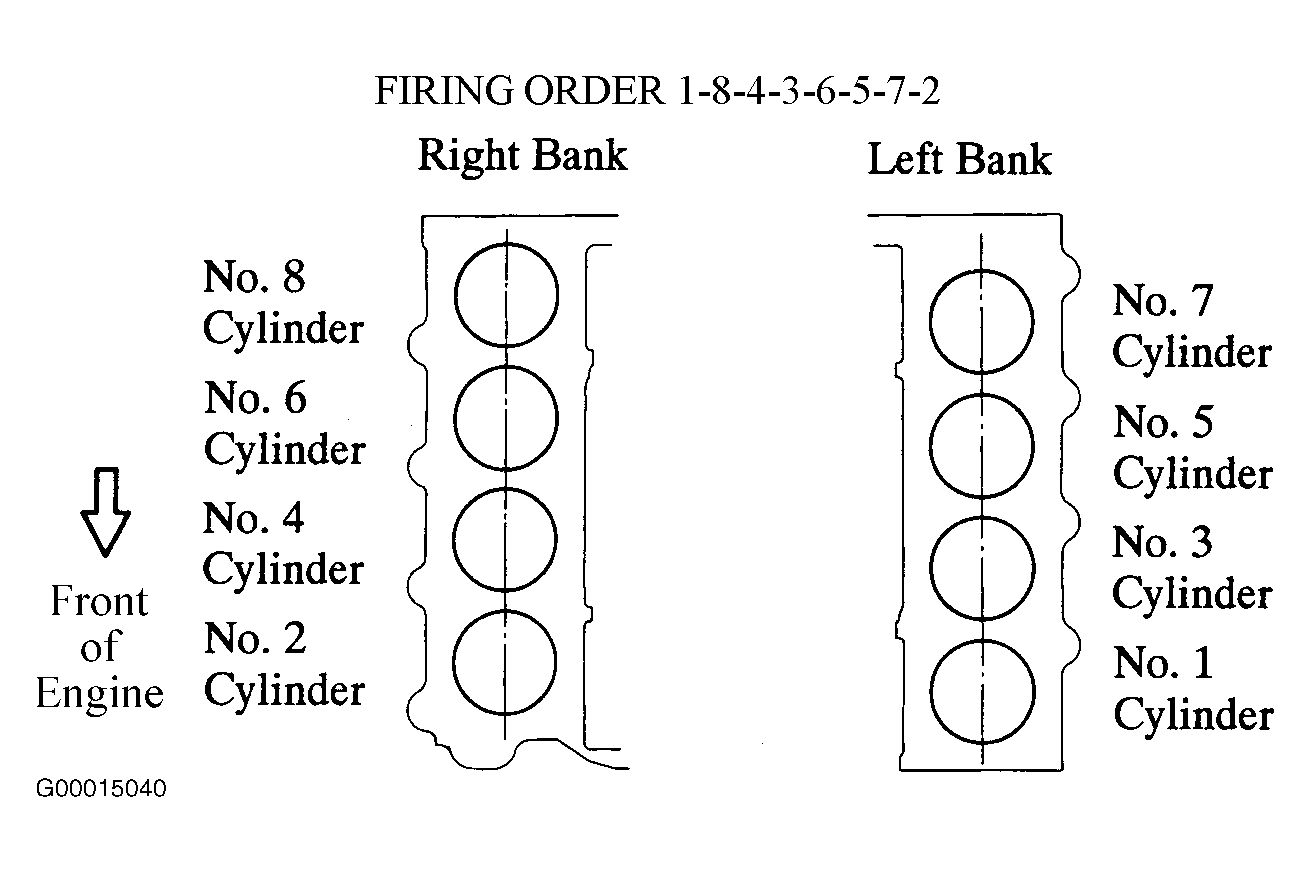

⁽¹⁰⁾	See Figure.
