Circuit Opening Relay

Ensure ignition is off. Remove circuit opening relay. See CIRCUIT OPENING RELAY LOCATION table. See Fig 1-Fig 7 .

CIRCUIT OPENING RELAY LOCATION ⁽¹⁾

Application

Location

Camry CNG & Gasoline Models, & Camry Solara

In Fuse/Relay Box At Driver-Side Front Corner Of Engine Compartment, Near Battery & Air Cleaner

Celica

In Fuse/Relay Box At Driver-Side Front Corner Of Engine Compartment, Just In Front Of Strut Tower, Near Battery

Corolla

Center Relay In Relay Box Behind Driver-Side Kick Panel

ECHO

In Fuse/Relay Box Behind Driver's Side Of Instrument Panel

RAV4

Top Rear Relay In Relay Box Below Driver's Side Of Instrument Panel, Behind Kick Panel

Tacoma

Behind Lower Instrument Panel Cover, Next To Driver's Side Of Steering Column

4Runner

Below Right Corner Of Fuse/Relay Box, Behind Lower Instrument Panel Cover At Driver's Side Of Instrument Panel To Left Of Steering Column, Just Above Hood Release Lever

⁽¹⁾	Circuit opening relay may be marked as CIR OPN relay.

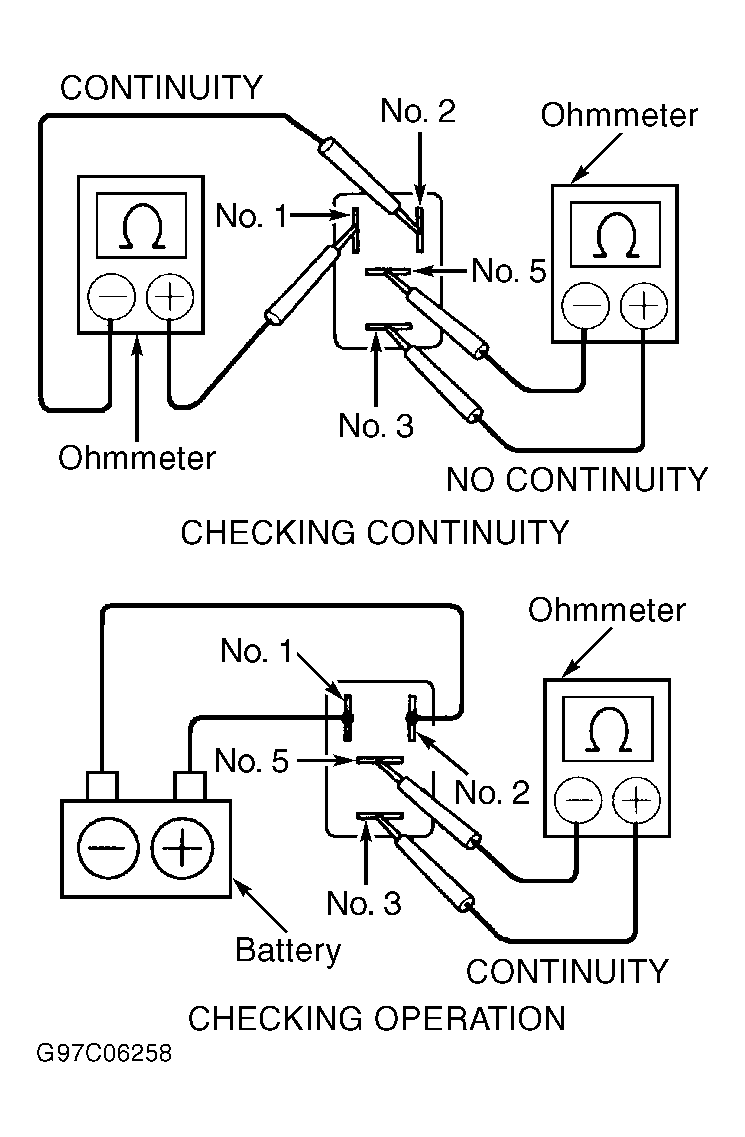

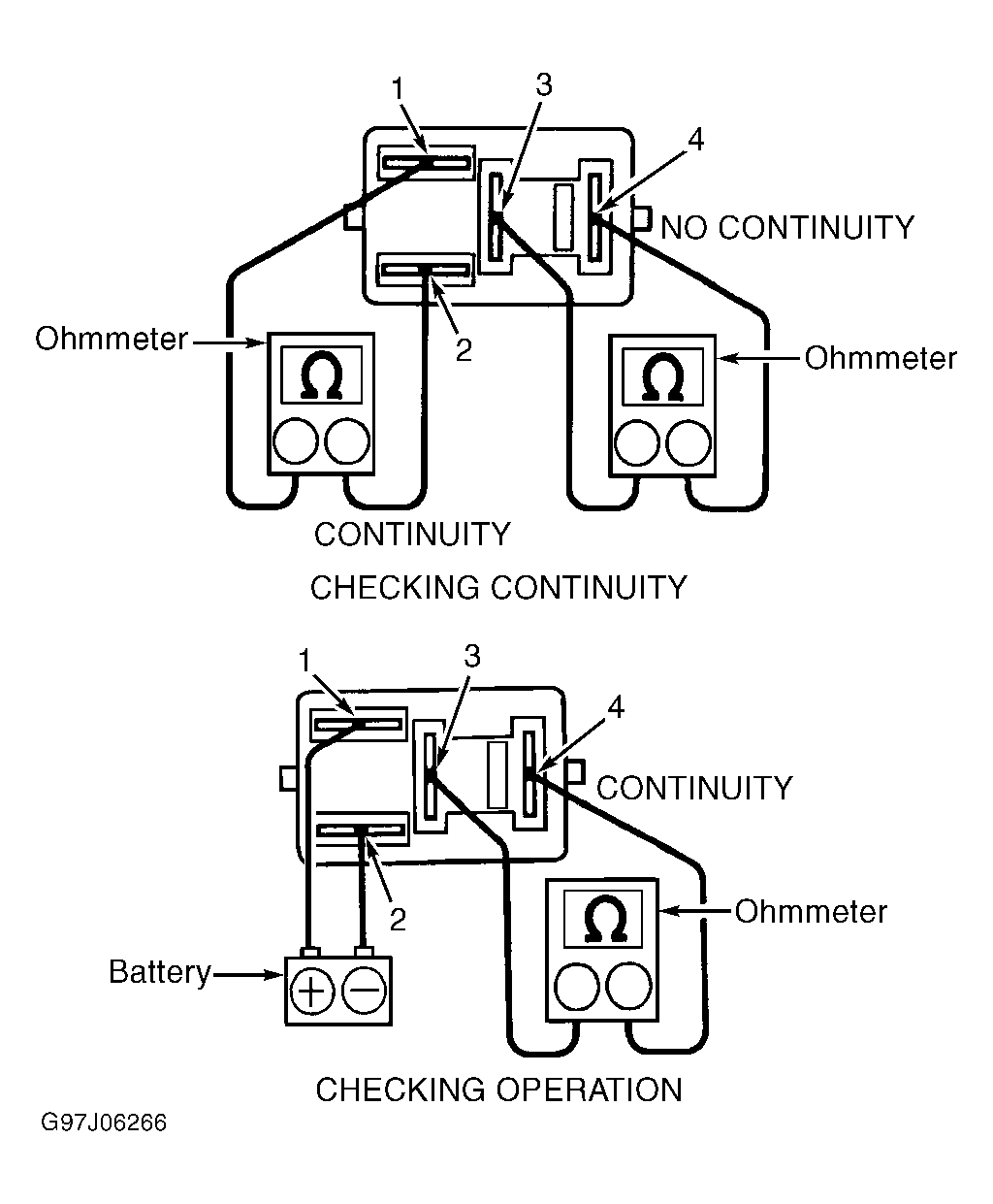

To test circuit opening relay continuity, using ohmmeter, check for continuity and no continuity between specified terminals on circuit opening relay. See Figure-Figure .
To test circuit opening relay operation, apply battery voltage and ground to circuit opening relay. Using ohmmeter, check for continuity between specified terminals on circuit opening relay. See Figure-Figure . Replace circuit opening relay if defective.

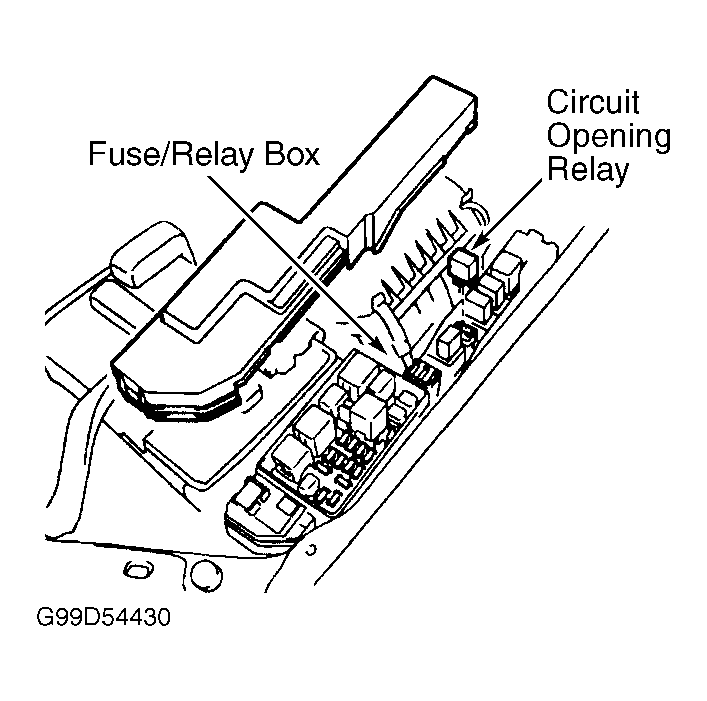

Fig 1: Locating Circuit Opening Relay (Camry CNG & Gasoline Models, & Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

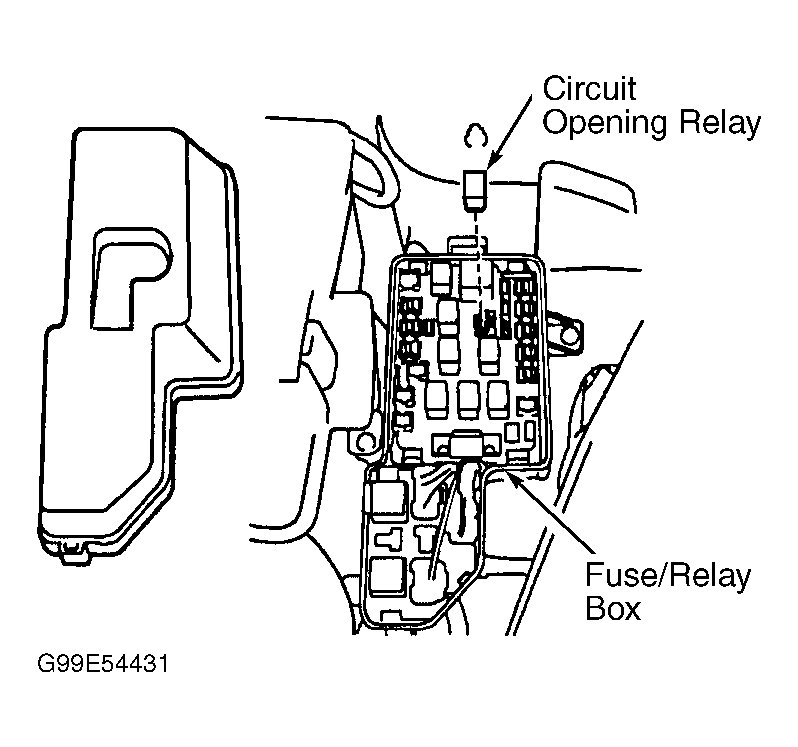

Fig 2: Locating Circuit Opening Relay (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

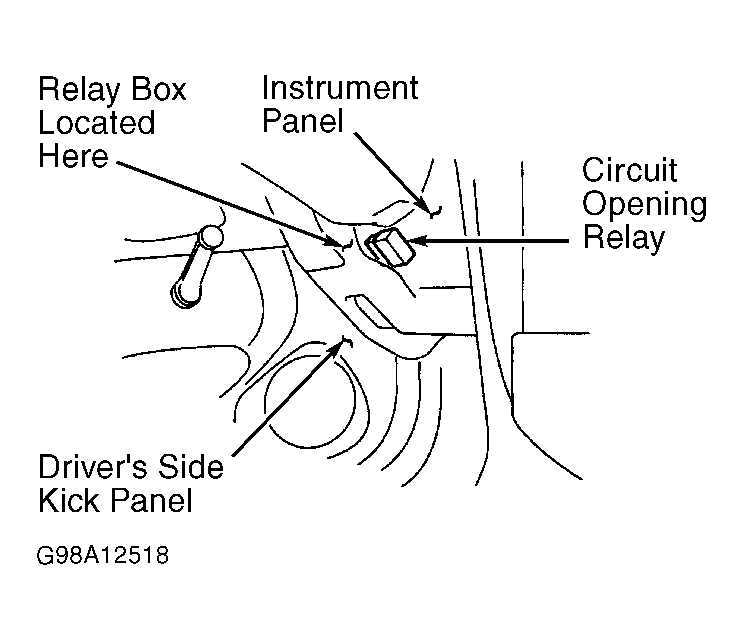

Fig 3: Locating Circuit Opening Relay (Corolla)

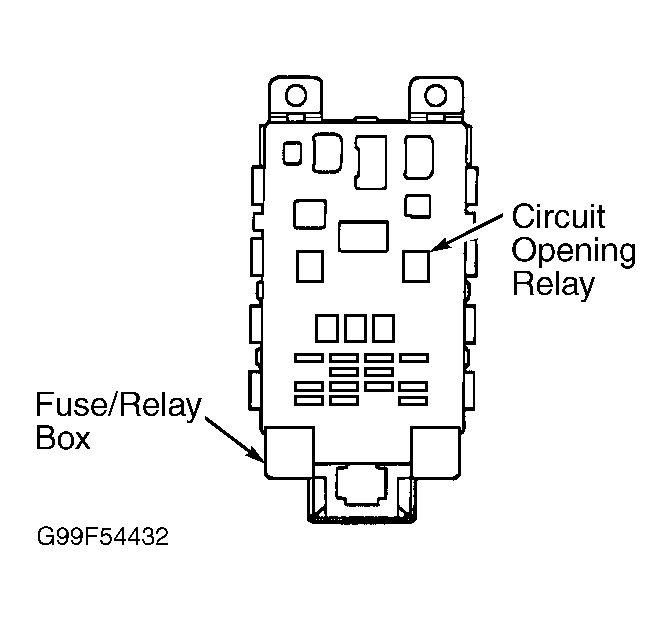

Fig 4: Locating Circuit Opening Relay (ECHO)

Fig 5: Locating Circuit Opening Relay (RAV4)

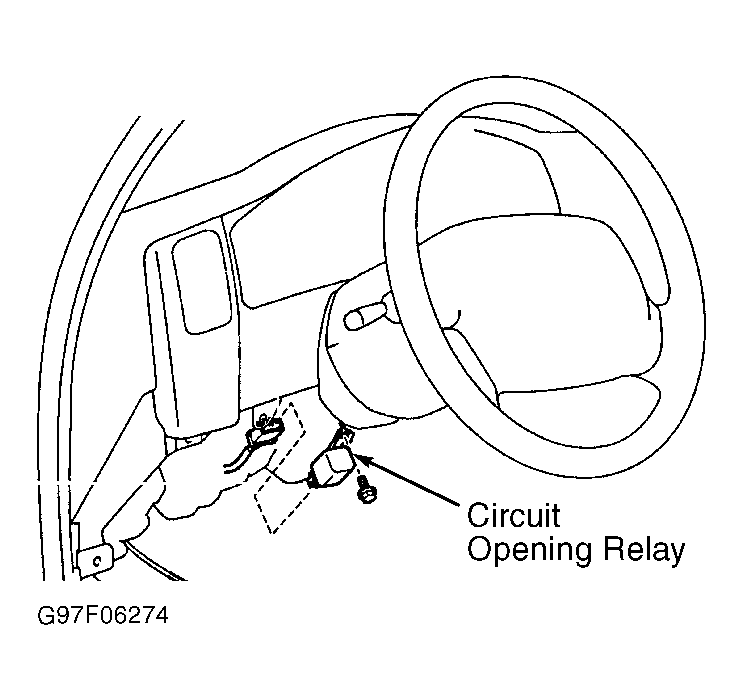

Fig 6: Locating Circuit Opening Relay (Tacoma)

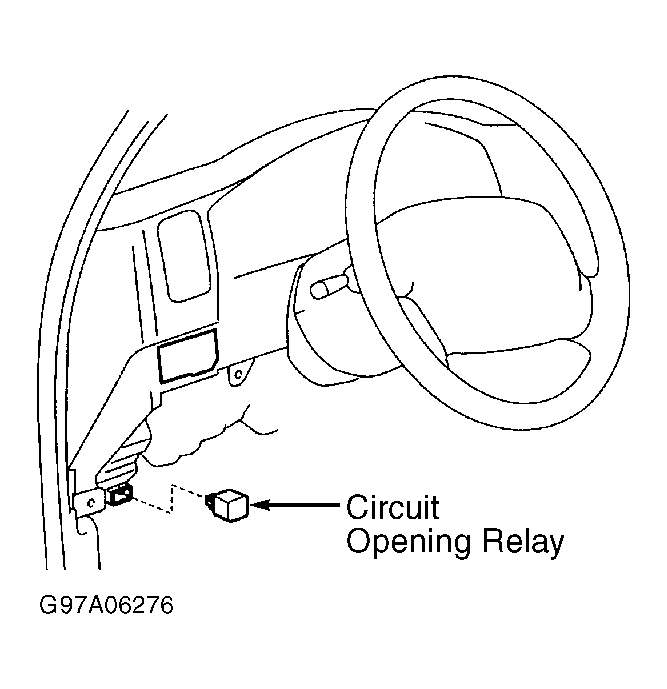

Fig 7: Locating Circuit Opening Relay (4Runner)
