IG2 Relay: RAV4

Remove IG2 relay from relay box located at driver-side front corner of engine compartment, just in front of strut tower. See Fig 1.
To test IG2 relay continuity, using ohmmeter, check for continuity and no continuity between specified terminals on IG2 relay. See Fig 2.
To test IG2 relay operation, apply battery voltage and ground to IG2 relay. Using ohmmeter, check for continuity between specified terminals on IG2 relay. See Fig 2. Replace IG2 relay if defective.

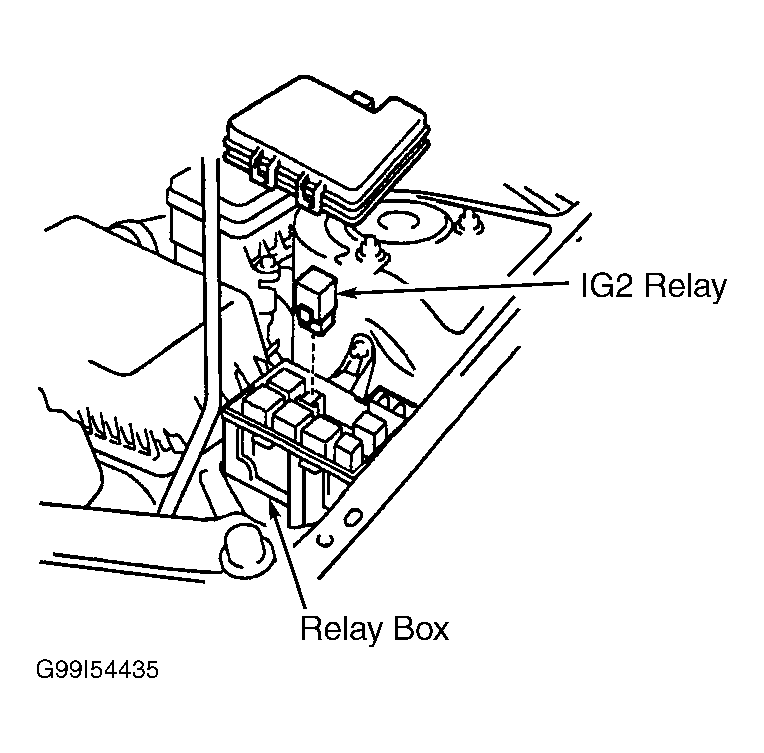

Fig 1: Locating IG2 Relay (RAV4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Testing IG2 Relay (RAV4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
