Diagnostic Tests: Notes

NOTE: Before performing any diagnostic test, see SELF-DIAGNOSTICS - INTRODUCTION article for diagnostic system functions and system diagnostic procedures. For component location, see appropriate illustration in THEORY & OPERATION article. References to California emissions apply to vehicles with California emissions, which may be verified by underhood Emission Control label. Vehicles with California emissions may be available in other states.

NOTE: For information on engine immobilizer system, see COMPUTERIZED ENGINE CONTROLS in THEORY & OPERATION article.

NOTE: To identify ECM terminals referenced in testing, see illustration. See Fig 1.

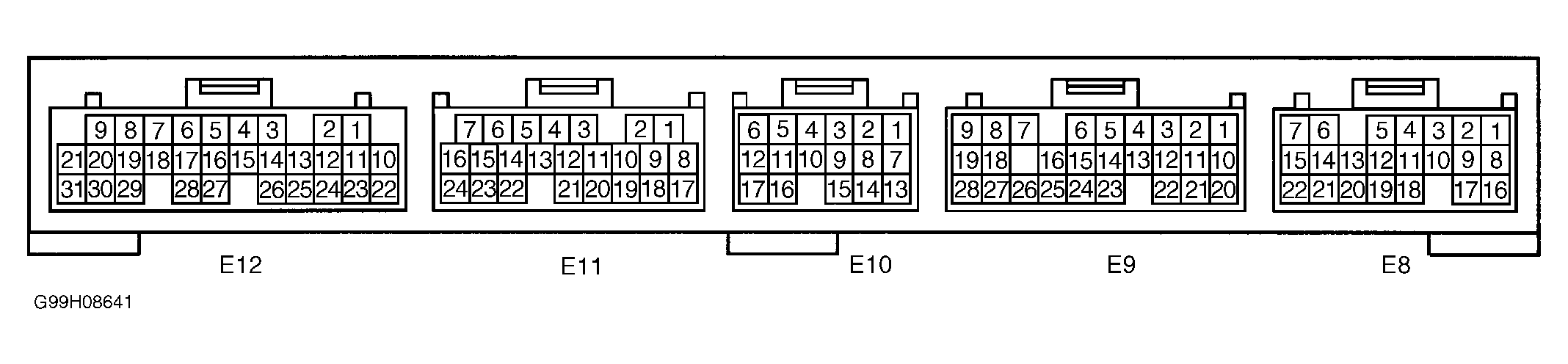

Fig 1: Identifying Engine Control Module (ECM) Terminals (Component Side)
