Power Window Motor Operation: RAV4

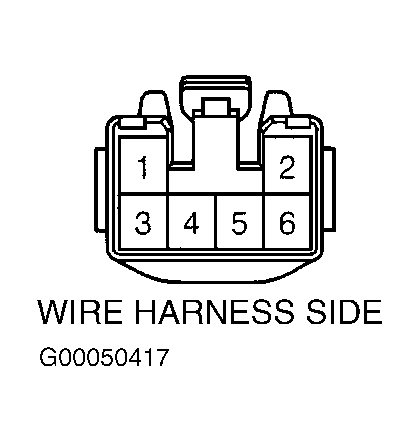

Disconnect 6-pin power window motor harness connector. Test power window motor operation on wire harness side of connector. See POWER WINDOW MOTOR OPERATION (RAV4) table. See Fig 1. If operation is not as specified, replace motor.
POWER WINDOW MOTOR OPERATION (RAV4)
| Application | Power To Terminal No. | Ground Terminal No. | Motor Operating Direction |
|---|---|---|---|
| Driver & Rear Right Door | 1 | 4 | Counterclockwise |
| Driver & Rear Right Door | 4 | 1 | Clockwise |
| Passenger & Rear Left Door | 5 | 4 | Clockwise |
| Passenger & Rear Left Door | 4 | 5 | Counterclockwise |
