Power Window Master Switch Circuit Test: 4Runner
NOTE:
4Runner is equipped with 2 master switches (one 7-pin and one 14-pin). For the purpose of these tests, the 14-pin connector is used.

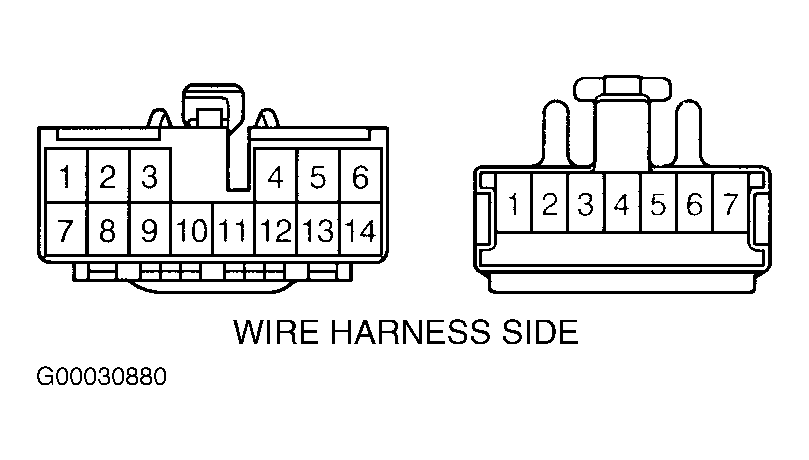

Disconnect power window master switch 14-pin connector. See Fig 1. Connect positive lead from battery to connector terminals No. 3 (Blue wire) and 10 (Blue/Red wire). Connect negative lead from battery to connector terminal No. 4 (White/Black wire). Check for continuity at switch. See POWER WINDOW MASTER SWITCH CIRCUIT CONTINUITY TEST (4RUNNER) , POWER WINDOW MASTER SWITCH CIRCUIT VOLTAGE TEST (4RUNNER) and POWER WINDOW MASTER SWITCH POWER SUPPLY TEST (4RUNNER)
tables. If results are not as specified, replace power window master switch. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION.
POWER WINDOW MASTER SWITCH CIRCUIT CONTINUITY TEST (4RUNNER)
| Application & Switch Position |
Terminals No. |
| Driver's Switch |
| Locked & Unlocked |
| UP |
2 & 4 |
| DOWN |
1 & 4 |
| Left Rear Switch |
| Locked |
| UP |
11 & 4 |
| DOWN |
9 & 4 |
| Unlocked |
| UP |
11 & 4 |
| DOWN |
9 & 4 |
| Right Rear Switch |
| Locked |
| UP |
14 & 4 |
| DOWN |
13 & 4 |
| Unlocked |
| UP |
14 & 4 |
| DOWN |
13 & 4 |
POWER WINDOW MASTER SWITCH VOLTAGE TEST (4RUNNER)
| Application & Switch Position |
Terminals No. |
| Driver's Switch |
| Locked & Unlocked |
| UP |
1 & 3 |
| DOWN |
2 & 3 |
| Front Passenger's Switch |
| Locked & Unlocked |
| UP |
7 & 10 |
| DOWN |
8 & 10 |
| Left Rear Switch |
| Locked & Unlocked |
| UP |
9 & 10 |
| DOWN |
11 & 10 |
| Right Rear Switch |
| Locked & Unlocked |
| UP |
13 & 10 |
| DOWN |
14 & 10 |
POWER WINDOW MASTER SWITCH POWER SUPPLY TEST (4RUNNER)
| Connector Terminal No. To Ground |
Condition |
Result |
| 3 |
Constant |
battery voltage |
| 4 |
Constant |
Continuity |
| 10 |
Ignition Switch Position In LOCK Or ACC Position |
No Voltage |
| 10 |
Ignition Switch In ON Position |
battery voltage |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
