Component Locations

For body control system component locations, see illustration. See Fig 1. For driver door control system and passenger door control system component locations, see Fig 2.

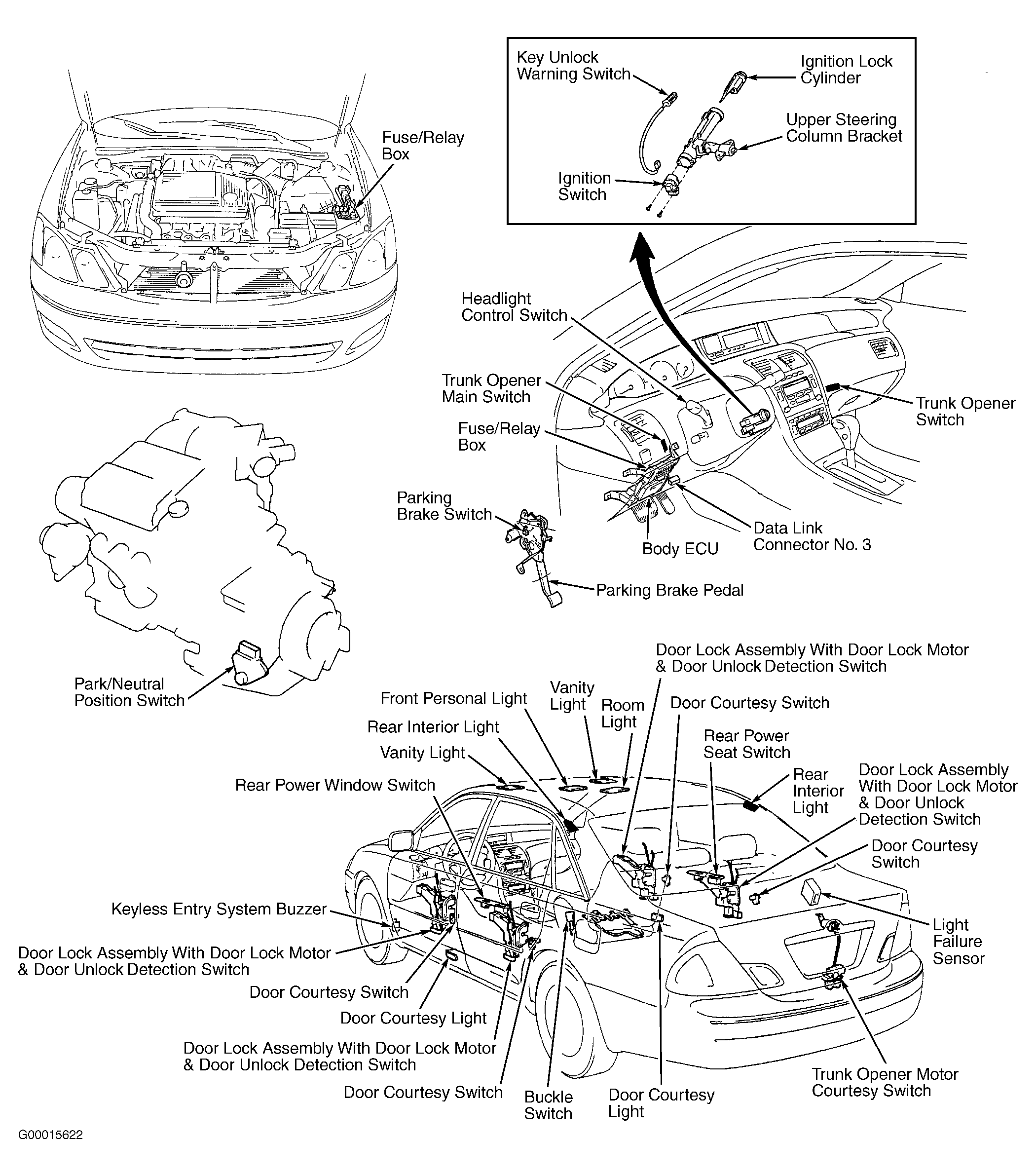

Fig 1: Locating Body Control System Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

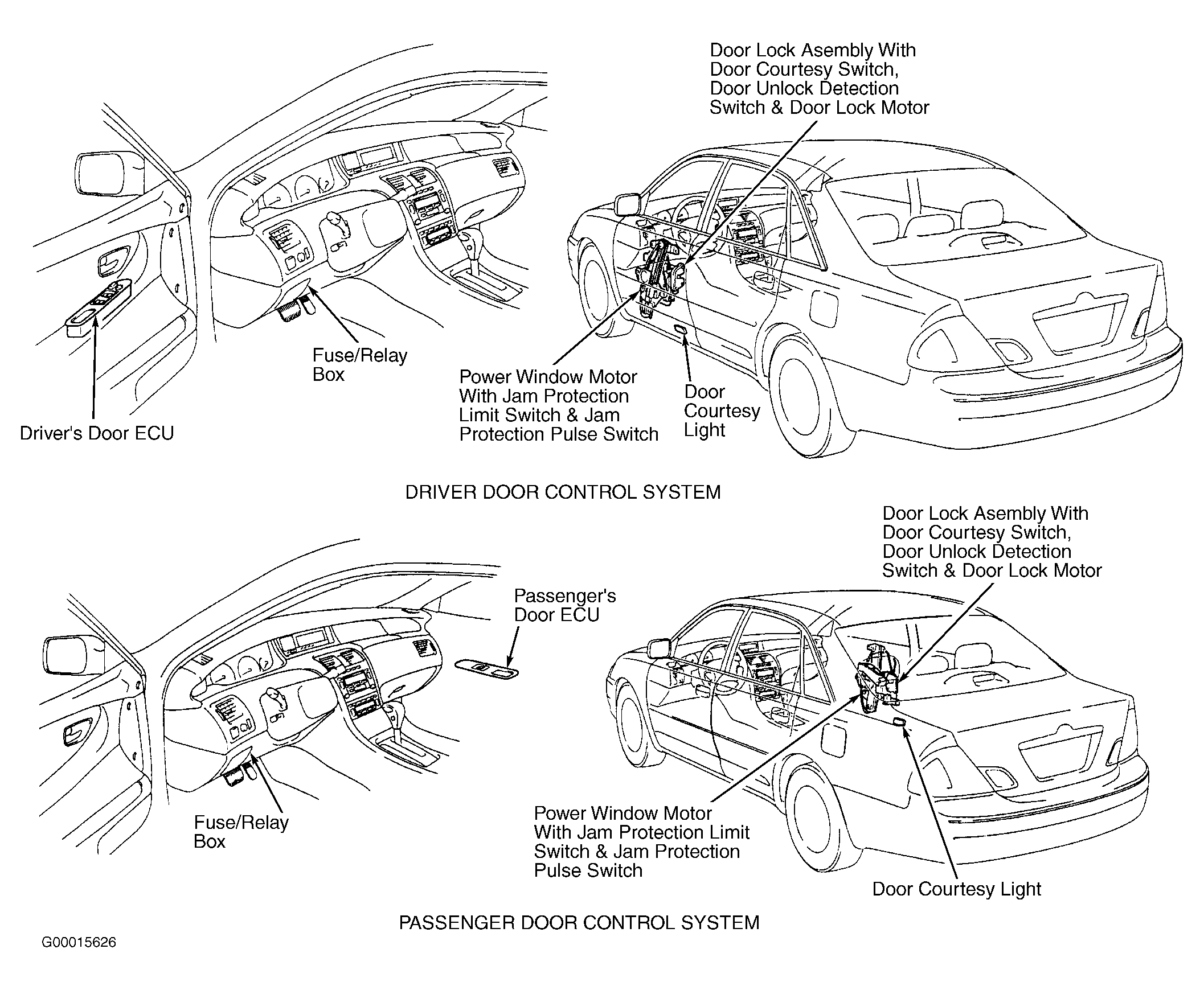

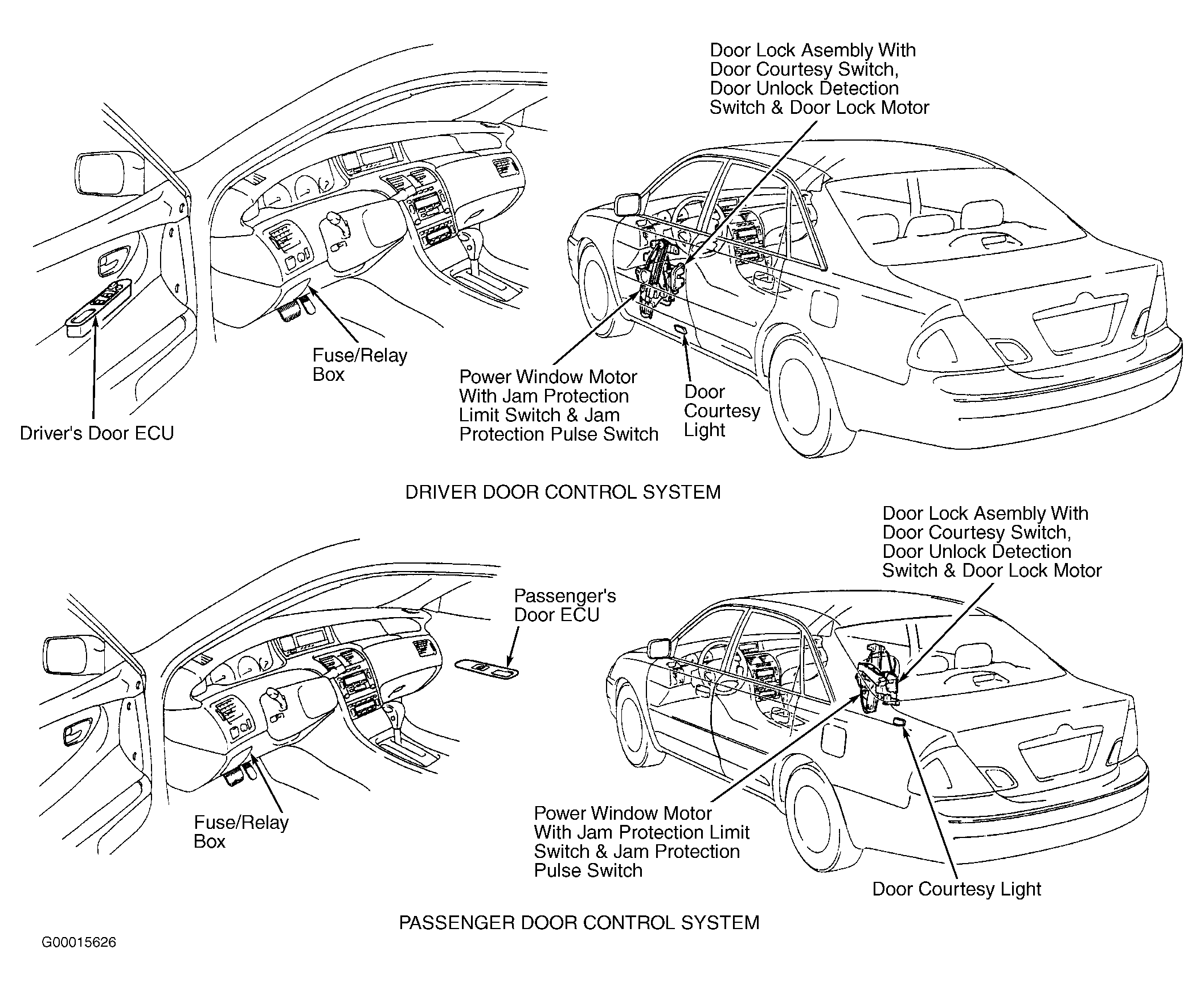

Fig 2: Locating Driver Door Control System & Passenger Door Control System Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
