Keyless Entry System Buzzer
NOTE:
Keyless entry system buzzer may also be referred to as wireless door lock buzzer.
- Disconnect electrical connector for keyless entry system buzzer. Keyless entry system buzzer is located near driver's side kick panel or near passenger's side front corner of engine compartment, just behind the headlight assembly and contains a Gray 2-pin electrical connector with White/Black and Pink/Blue wires.

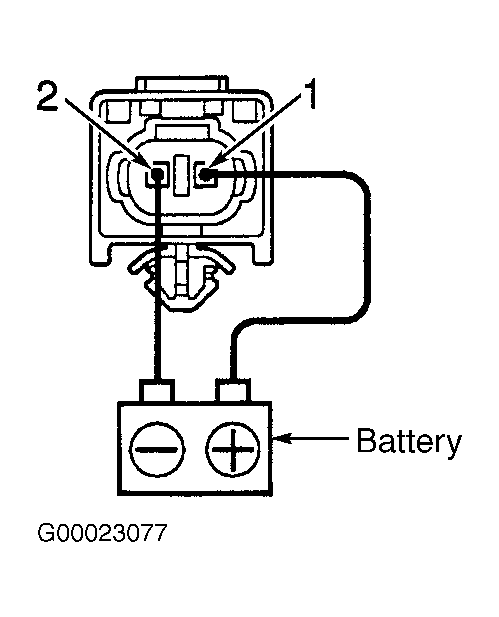

- Using jumper wires, connect positive battery terminal to terminal No. 1 and negative battery terminal to terminal No. 2 on keyless entry system buzzer and check that keyless entry system buzzer operates. See Fig 1. Replace keyless entry system buzzer if defective.
