Rear Power Window Switch

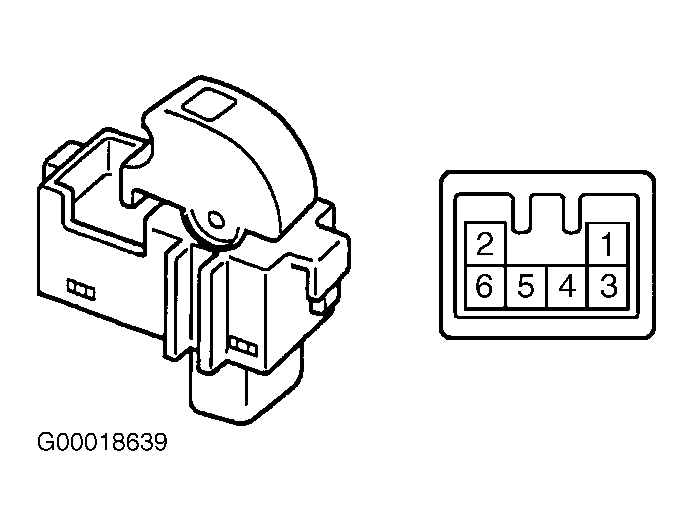

- Remove rear power window switch from door panel and disconnect electrical connector. Note electrical terminal identification on rear power window switch. See Fig 1.
- Using ohmmeter, check that continuity and no continuity exists between specified terminals in relation to the switch position. See REAR POWER WINDOW SWITCH CONTINUITY table. Replace rear power window switch if continuity is not as specified.REAR POWER WINDOW SWITCH CONTINUITY
Switch Position Terminals No. Specification UP 2 & 6; 4 & 5 Continuity OFF 2 & 6; 4 & 6 No Continuity DOWN 2 & 5; 4 & 6 Continuity
