Trunk Opener Motor
NOTE:
Trunk opener motor may also be referred to as luggage opener motor, luggage compartment door opener motor or luggage compartment door unlock motor.
- Trunk opener motor is located on the trunk lid. See Figure. Disconnect electrical connector at trunk opener motor.

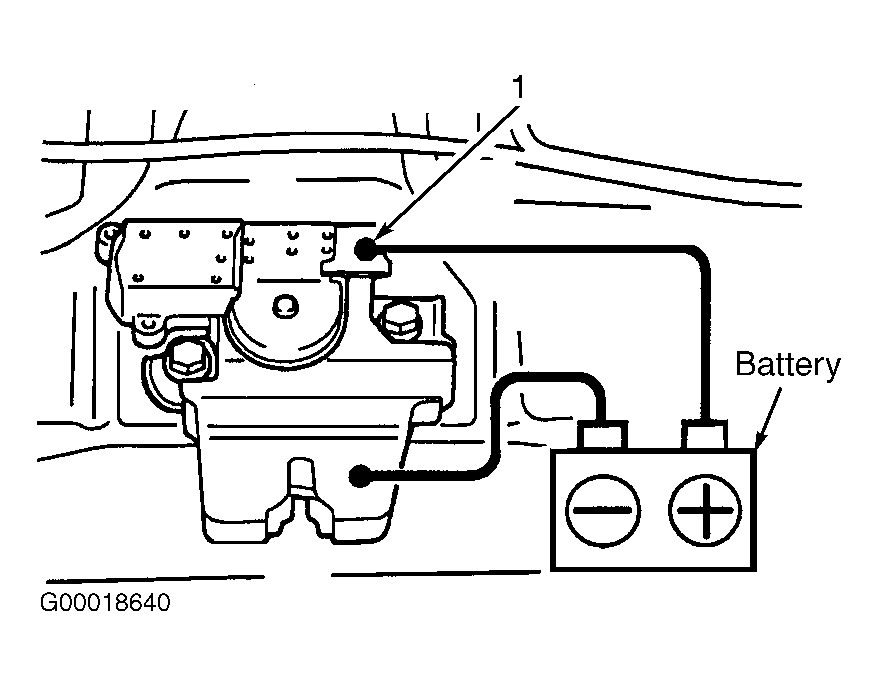

- Using jumper wires, connect positive battery terminal to terminal No. 1 on trunk motor and negative battery terminal to body of trunk motor and check that trunk motor operates. See Fig 1. Replace trunk motor if trunk motor does not operate.
