Front Wheel Alignment: Inspection

NOTE: w/ VSC:
Be sure to perform the steering angle sensor zero point calibration after adjusting the front wheel alignment (PRE-CHECK ).

MEASURE VEHICLE HEIGHT

VEHICLE HEIGHT

Application

Specification

Front ⁽¹⁾

213 (8.39) mm (in.)

Rear ⁽²⁾

266 (10.47) mm (in.)

⁽¹⁾	Front measuring point. Measure the distance from the ground to the center of the front side lower suspension arm mounting bolt.

⁽²⁾	Rear measuring point. Measure the distance from the ground to the center of the front side strut rod mounting bolt.

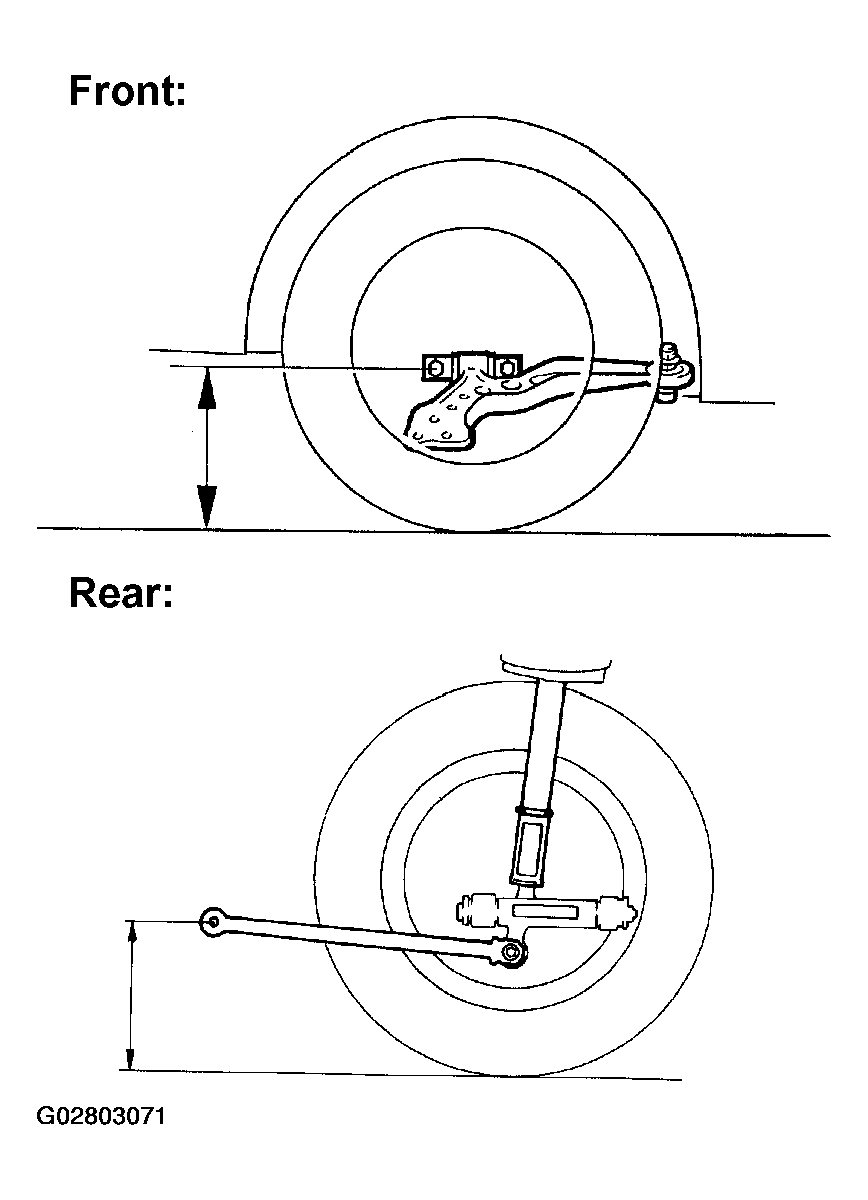

Fig 1: Identifying Front And Rear Measuring Points

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

If the vehicle height is not the specified value, try to adjust it by pushing down on or lifting the body.

INSTALL CAMBER-CASTER-KINGPIN GAUGE OR POSITION VEHICLE ON WHEEL ALIGNMENT TESTER
Follow the specific instructions of the equipment manufacturer.

INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION

CAMBER, CASTER AND STEERING AXIS INCLINATION

Application		Specification
Camber		-0°37' +/- 45' (-0.62° +/- 0.75°)
	Right-Left Error	45' (0.75°) or less
Caster		2°10' +/- 45' (2.17° +/- 0.75°)
	Right-Left Error	45' (0.75°) or less
Steering Axis Inclination		13°04' +/- 45' (13.07° +/- 0.75°)
	Right-left error	45' (0.75°) or less

If the caster and steering axis inclination are not within the specified values, after the camber has been correctly adjusted, recheck the suspension parts for damaged and/or worn out parts.

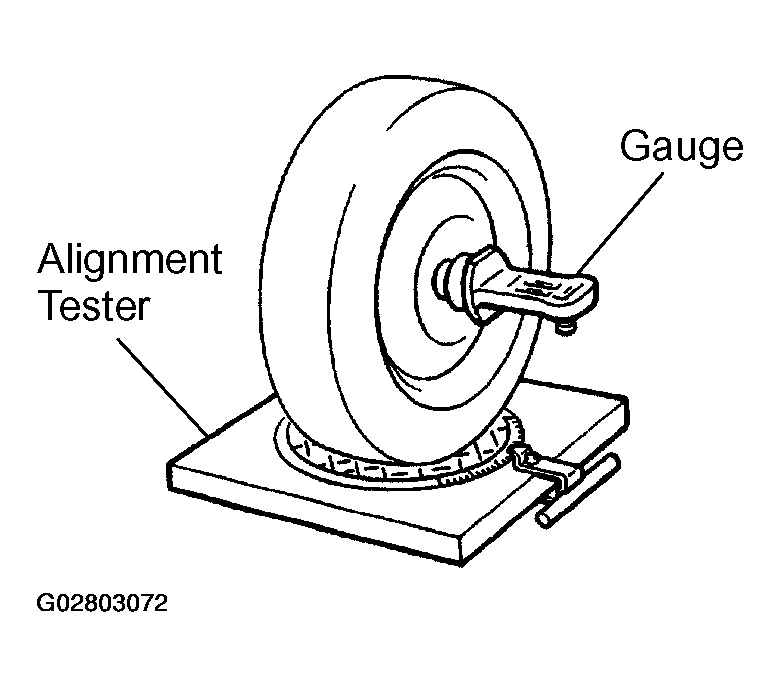

Fig 2: Installing Camber-Caster-Kingpin Gauge And Positioning Vehicle On Alignment Tester

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ADJUST CAMBER
NOTE: After the camber has been adjusted, inspect the toe-in.
1. Remove the front wheel and ABS speed sensor clamp.
2. Remove the 2 nuts on the lower side of the shock absorber.

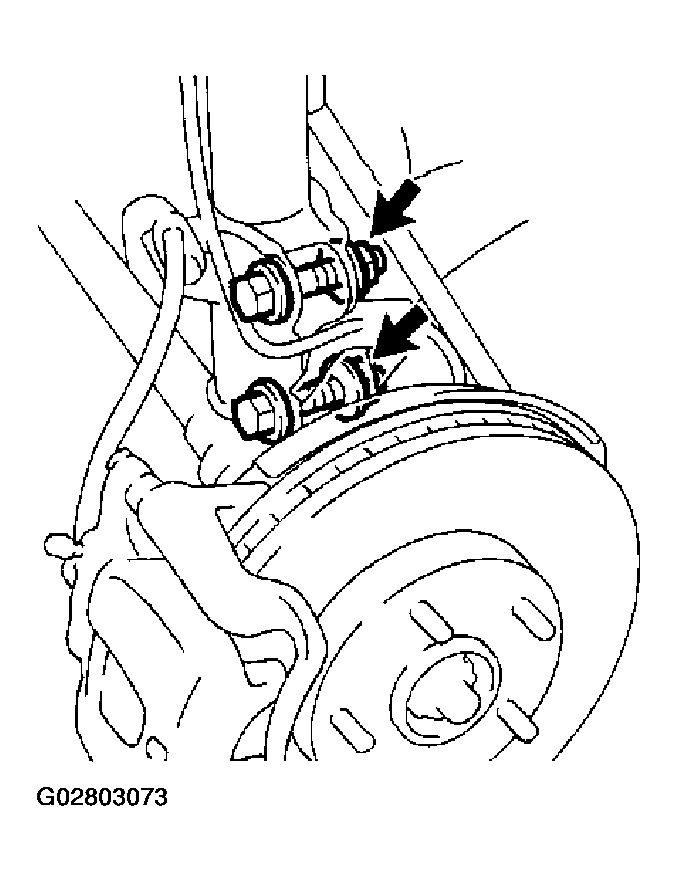

  Fig 3: Locating Nuts On Lower Side Of The Shock Absorber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Coat the threads of the nuts with engine oil.
4. Temporarily install the 2 nuts.
5. Adjust the camber by pushing or pulling the lower side of the shock absorber in the direction in which the camber adjustment is required.

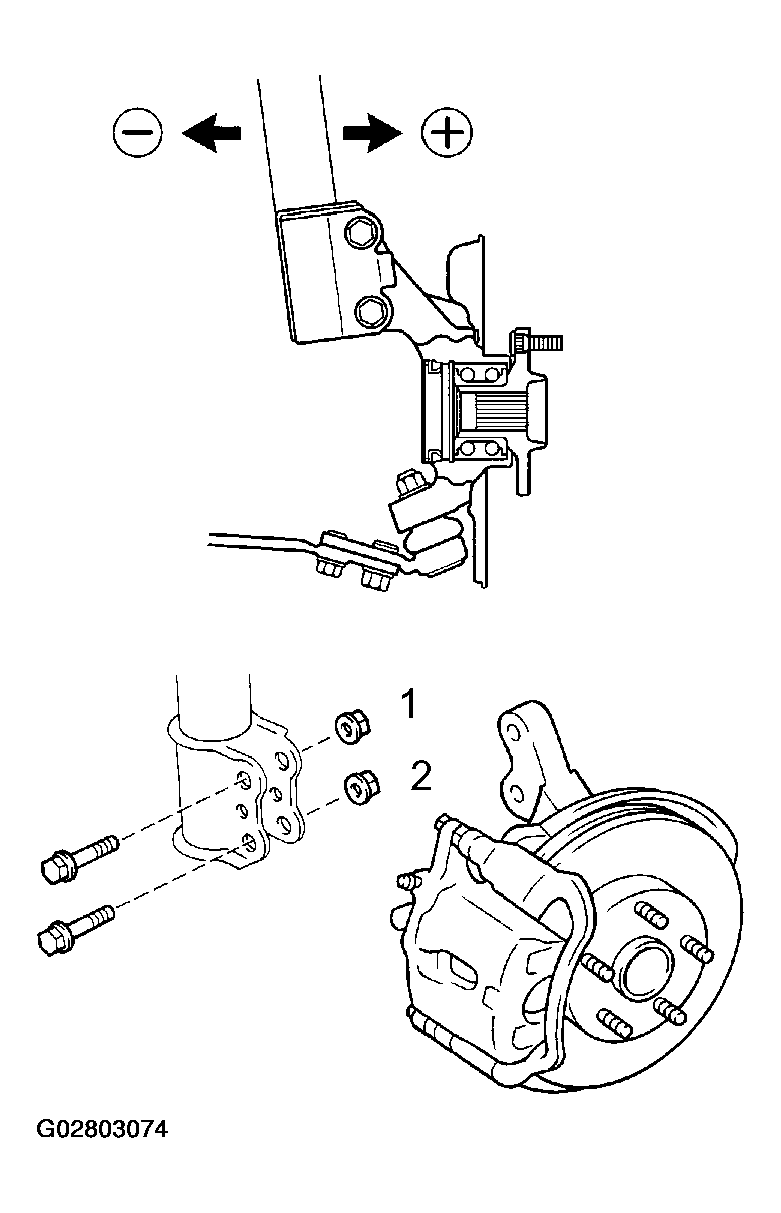

  Fig 4: Identifying Direction Of Lower Side Of Shock Absorber For Adjusting Camber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Tighten the nuts.
  Torque: 211 N.m (2,150 kgf.cm, 156 ft.lbf)
7. Install the ABS speed sensor clamp and front wheel.
  Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
8. Check the camber.
  HINT:
  - Try to adjust the camber to the center of the specified value.
  - Adjusting value for the set bolts is 6' - 30' (0.1° - 0.5°).
    If the camber is not within the specified value, using the following table, estimate how much additional camber adjustment will be required, and select the camber adjusting bolt.

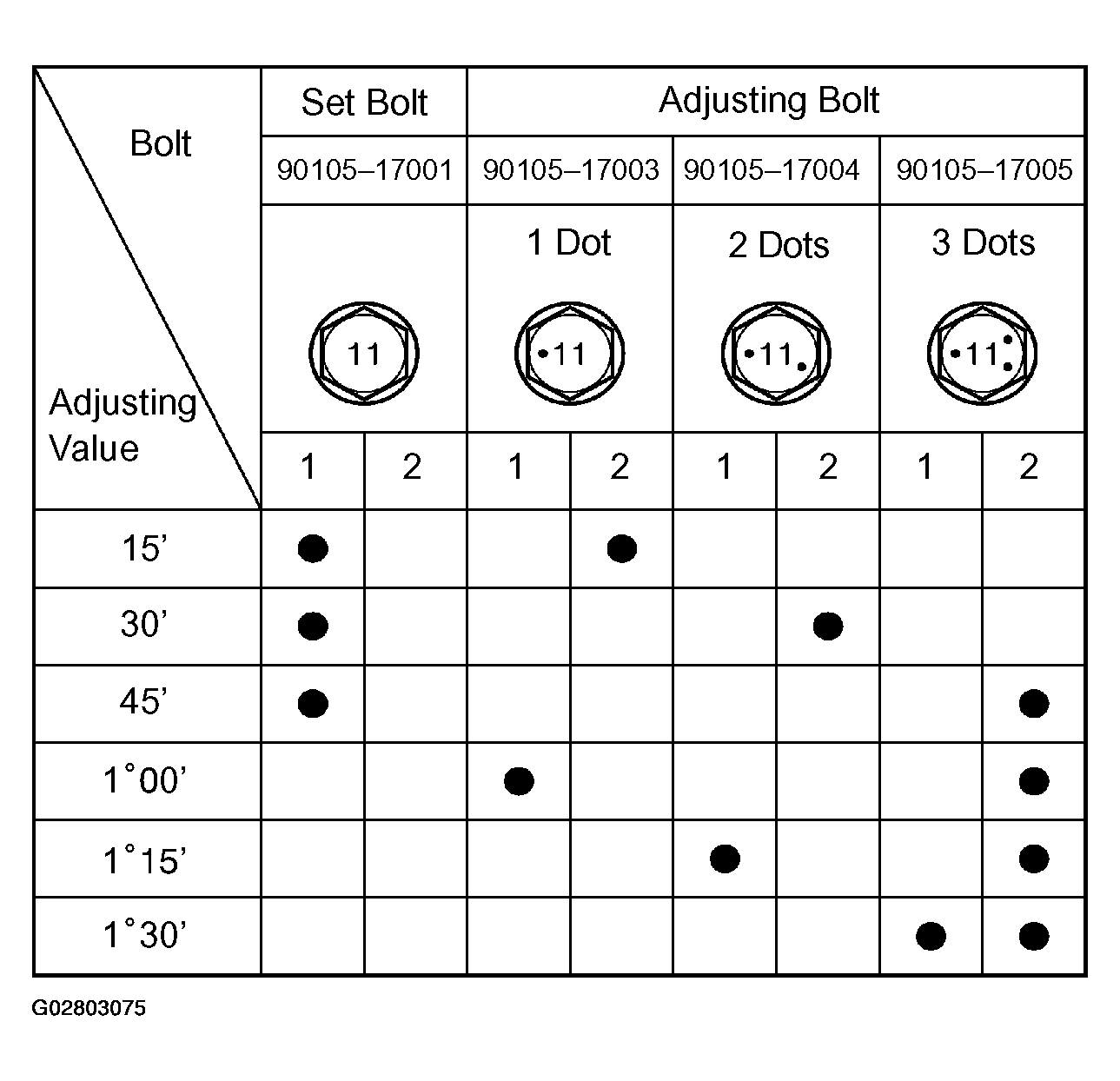

  Fig 5: Adjusting Bolt Value Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Do the steps mentioned above again. Between step (b) and (c), replace 1 or 2 selected bolts.
HINT:

When replacing the 2 bolts, replace 1 bolt for each time.

INSPECT TOE-IN

TOE IN

Application	Specification
Toe-in (total)	A + B:0° +/- 12' (0° +/- 0.2°) C - D: 0 +/- 2 mm (0 +/- 0.08 in.)

If the toe-in is not within the specified value, adjust it at the rack ends.

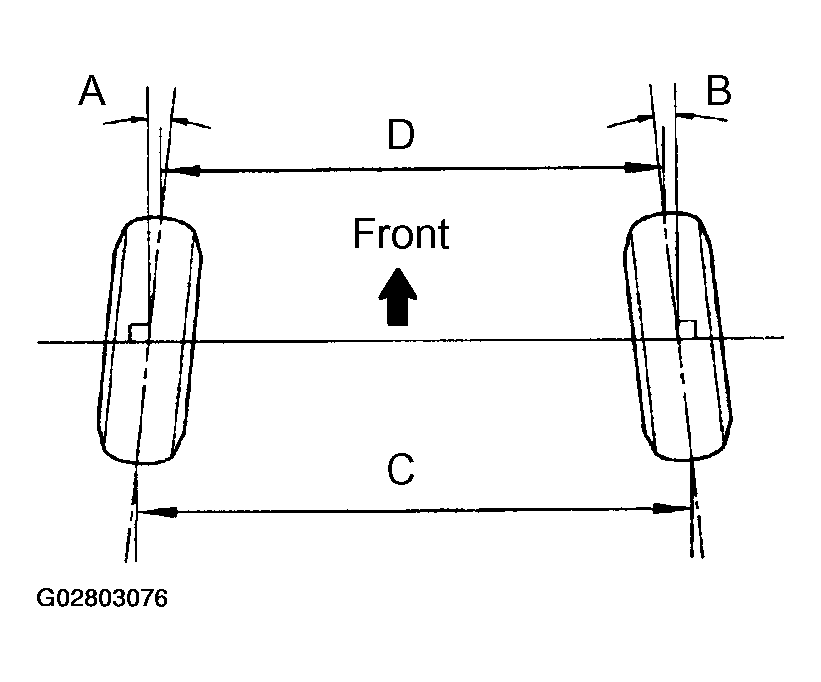

Fig 6: Inspecting Toe In

ADJUST TOE-IN
1. Remove the rack boot set clips.
2. Loosen the tie rod end lock nuts.
3. Turn the right and left rack ends by an equal amount to adjust the toe-in.
  HINT:

  Try to adjust the toe-in to the center of the specified value.

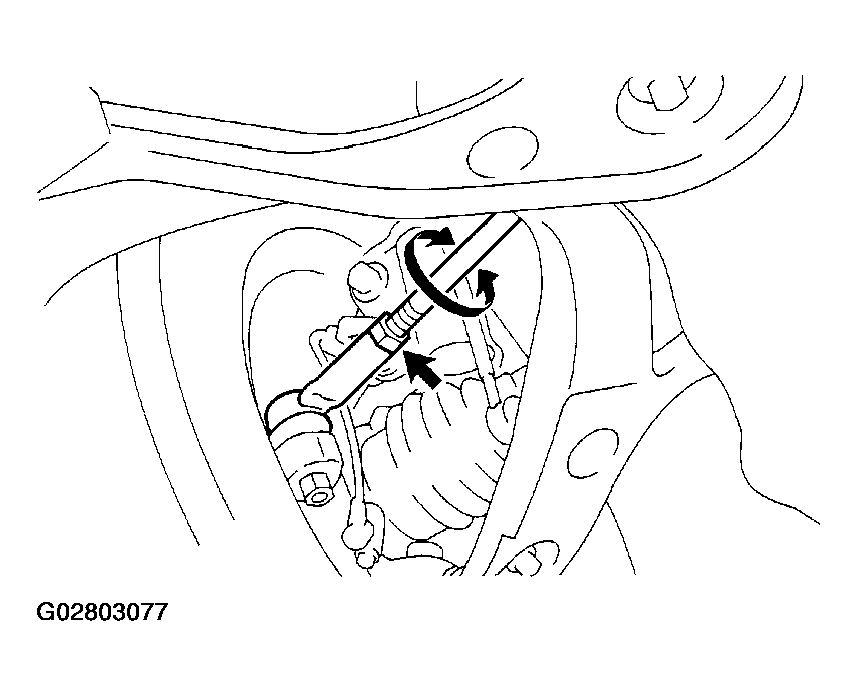

  Fig 7: Turning Right And Left Rack Ends For Adjusting Toe In
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Make sure that the lengths of the right and left rack ends are the same.
  Rack end length difference: 1.5 mm (0.059 in.) or less
5. Torque the tie rod end lock nuts.
  Torque: 74 N.m (750 kgf.cm, 54 ft.lbf)
6. Place the boots on the seats and install the clips.
HINT:

Make sure that the boots are not twisted.

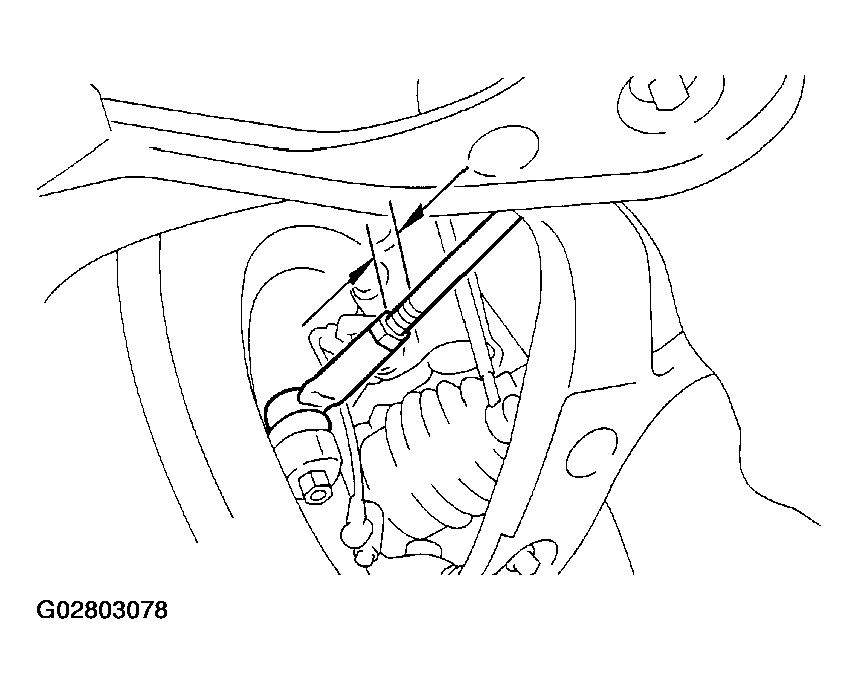

Fig 8: Identifying Rack End Length Difference
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT WHEEL ANGLE

Turn the steering wheel fully, and measure the turning angle.

WHEEL TURNING ANGLE

Application	Specification
Inside wheel	35°45' +/- 1 ° (35.75° +/- 1°)
Outside wheel: Reference	31°23' (31.38°)

If the right and left inside wheel angles differ from the specified value, check the right and left rack end lengths.

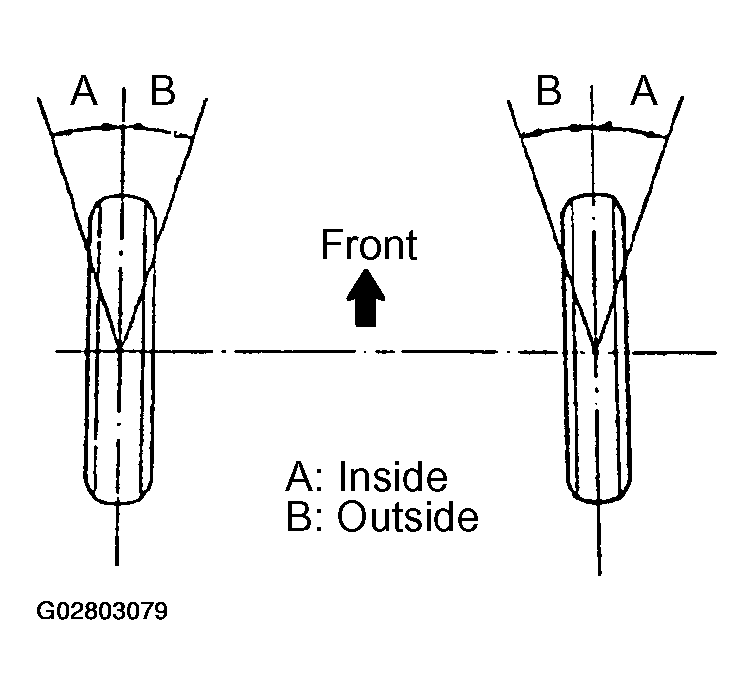

Fig 9: Identifying Wheel Turning Angle
