Front Brake Speed Sensor: Components

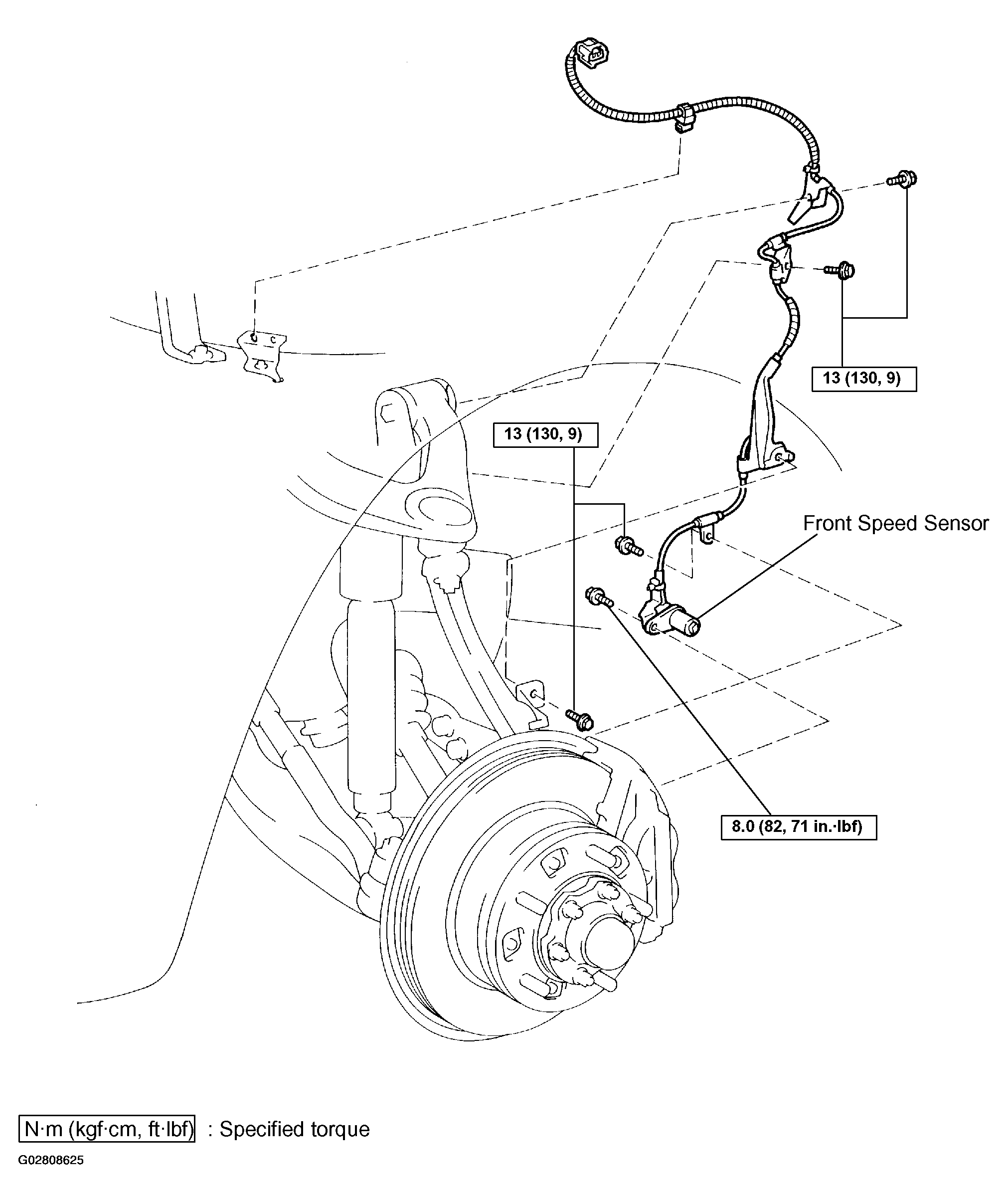

Fig 1: Identifying Components For Front Speed Sensor Removal
G02808625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
