Power Door Lock Control Switch

NOTE: Power door lock control switch may also be referred to as door lock control switch.

Power door lock control switch is located driver's side of instrument panel. See Figure. Disconnect electrical connector from power door lock control switch. Note power door lock control switch electrical terminal identification. See Fig 1.

Using ohmmeter, check that continuity and no continuity is as specified between indicated power door lock control switch electrical terminals in relation to power door lock control switch position. See POWER DOOR LOCK CONTROL SWITCH CONTINUITY table. Replace power door lock control switch if defective.

POWER DOOR LOCK CONTROL SWITCH CONTINUITY

Switch Position

Switch Terminals No.

Specification

LOCK

1 & 3; 5 & 6

Continuity

OFF

⁽¹⁾

UNLOCK

1 & 6; 3 & 5

Continuity

⁽¹⁾	There should be no continuity between any terminals.

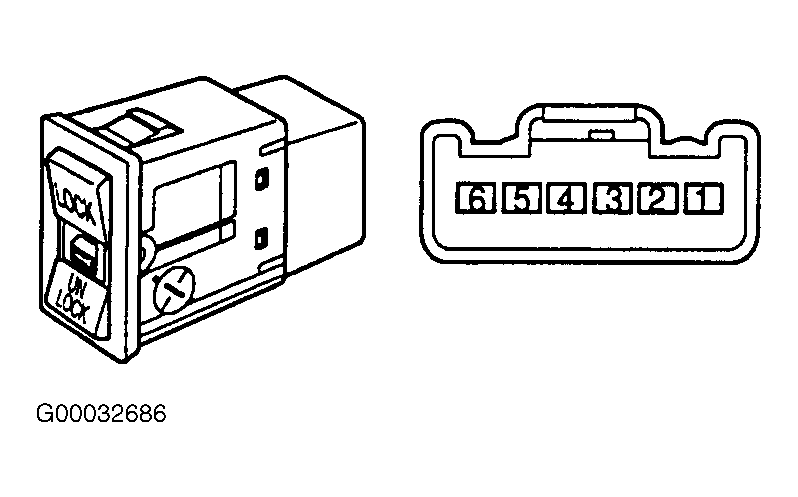

Fig 1: Identifying Power Door Lock Control Switch Electrical Terminals
