Power Window Control Switch

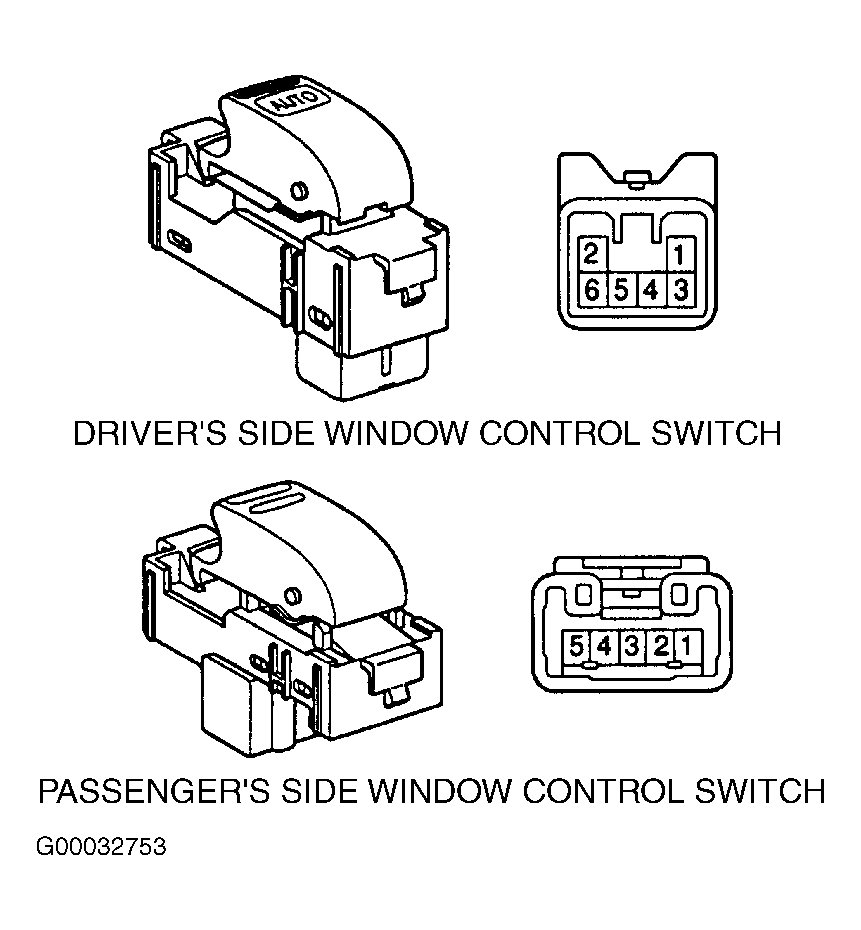

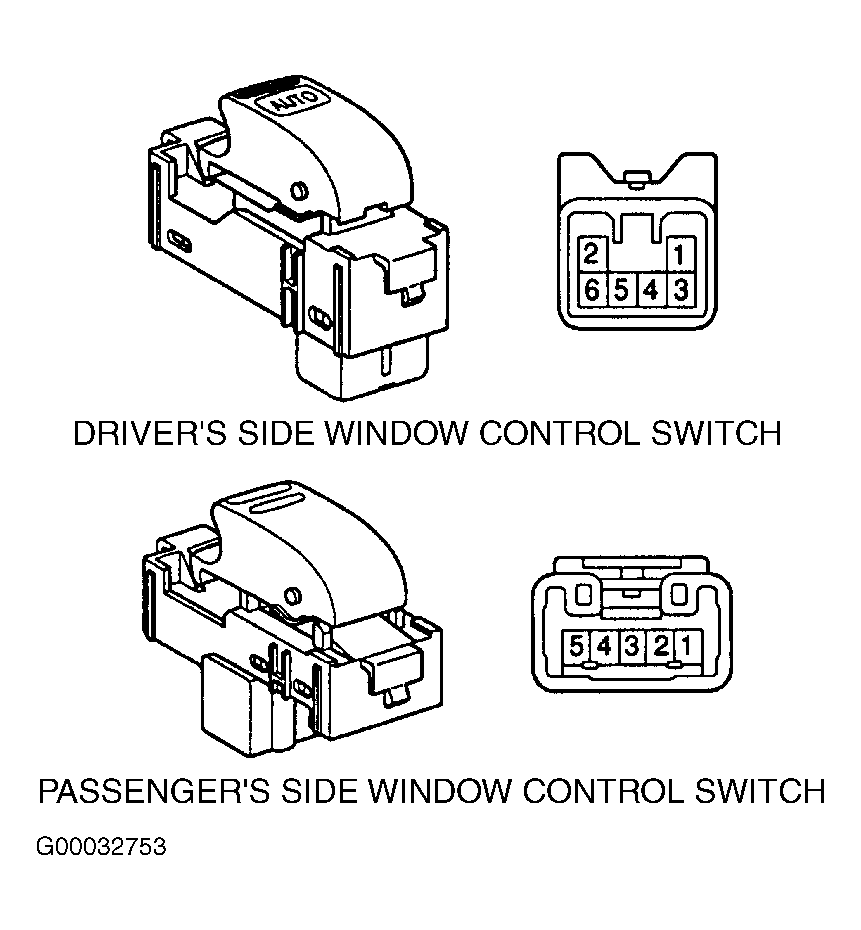

- Power window control switches are located on center console. See Figure. Disconnect electrical connector from power window control switch. Note power window control switch electrical terminal identification. See Fig 1.
- Using ohmmeter, check that continuity is as specified between indicated power window control switch electrical terminals in relation to window switch application and switch position. See POWER WINDOW CONTROL SWITCH CONTINUITY table. Replace power window control switch if continuity is not as specified.POWER WINDOW CONTROL SWITCH CONTINUITY
Application & Switch Position Switch Terminals No. Specification Driver's Side Window Switch UP 3 & 6 Continuity OFF No Continuity No Continuity DOWN 3 & 4 Continuity AUTO 3 & 4; 3 & 5 Continuity Passenger's Side Window Switch UP 1 & 2; 3 & 4 Continuity OFF 1 & 2; 3 & 5 Continuity DOWN 1 & 4; 3 & 5 Continuity
