Window Lock Switch

  1. Window lock switch is located driver's side of instrument panel. See Figure. Disconnect electrical connector from window lock switch. Note window lock switch electrical terminal identification. See Fig 1.
  2. Using ohmmeter, check that continuity exists between electrical terminals No. 7 and 10 with switch button released to on position and that no continuity exists with switch button depressed to off position. Replace window lock switch if defective.

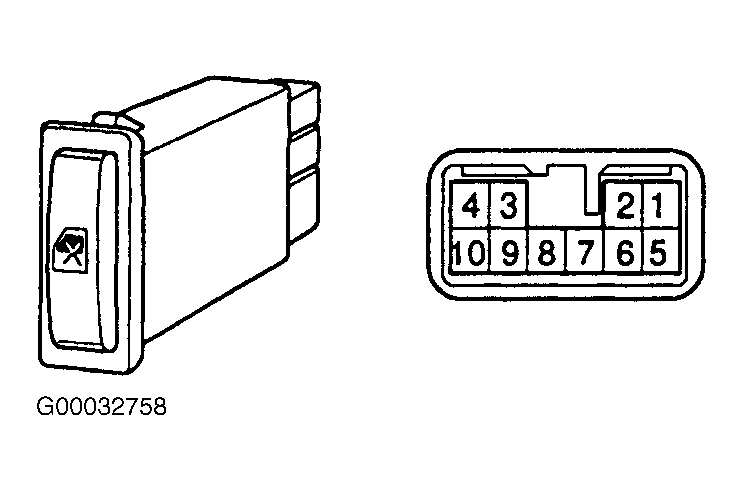

    Fig 1: Identifying Window Lock Switch Electrical Terminals
    G00032758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
