Key Unlock Warning Switch

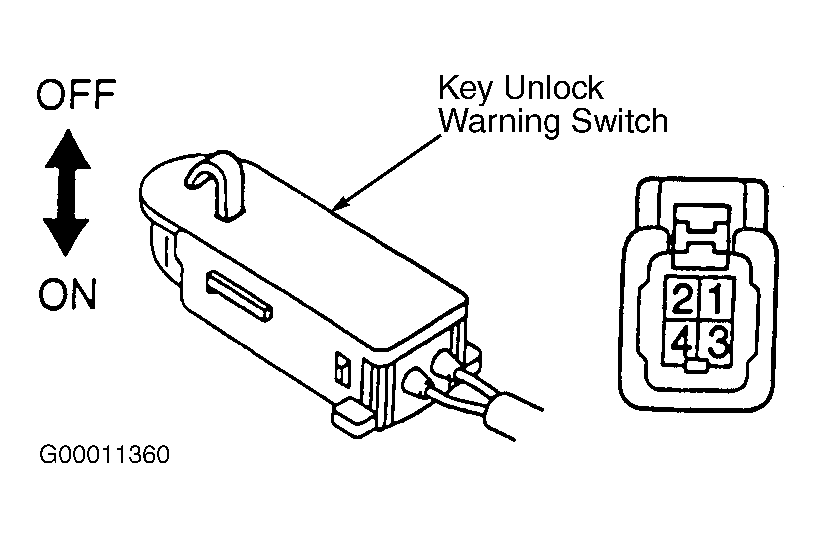

- Disconnect electrical connector for key unlock warning switch. Key unlock warning switch is located on upper steering column bracket, near ignition lock cylinder.See Figure. Key unlock warning switch may also be referred to as unlock warning switch.
- Connect ohmmeter between terminals No. 1 and 2 at electrical connector for key unlock warning switch. See Fig 1. Check that no continuity exists with ignition key removed from ignition lock cylinder. Check that continuity exists with ignition key installed in ignition lock cylinder. Replace key unlock warning switch if defective. See KEY UNLOCK WARNING SWITCH under REMOVAL & INSTALLATION.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
