Power Window Switch
NOTE:
Power window master switch is located on driver's side front door and power window switches are located on all other passenger doors. For testing of power window master switch, see POWER WINDOW MASTER SWITCH .

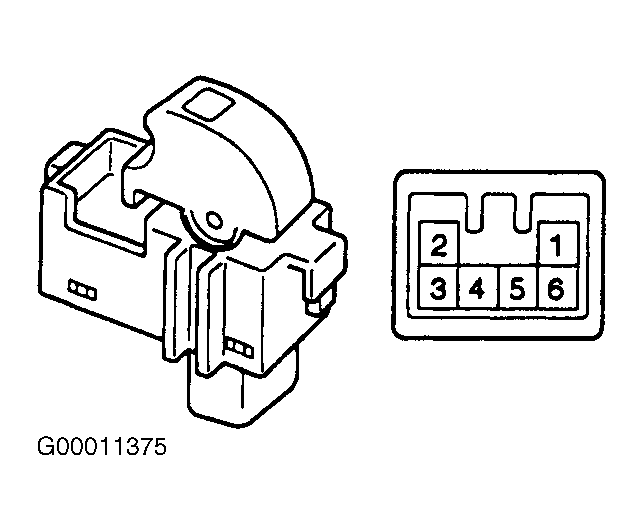

- Disconnect electrical connector from power window switch. Note power window switch electrical terminal identification. See Fig 1.
- Using ohmmeter, check that continuity is as specified between indicated power window switch electrical terminals in relation to window switch position. See POWER WINDOW SWITCH CONTINUITY table. Replace power window switch if continuity is not as specified.POWER WINDOW SWITCH CONTINUITY
Switch Position Switch Terminals No. Specification UP 2 & 3; 4 & 5 Continuity OFF 2, 3 & 5 Continuity DOWN 2 & 4; 3 & 5 Continuity
