Trouble Shooting: PRIUS

WARNING: On Prius, when performing any inspection or service procedure on this vehicle, ensure service precautions are followed to prevent personal injury or death due to the extremely high voltage. See SERVICE PRECAUTIONS (PRIUS) .

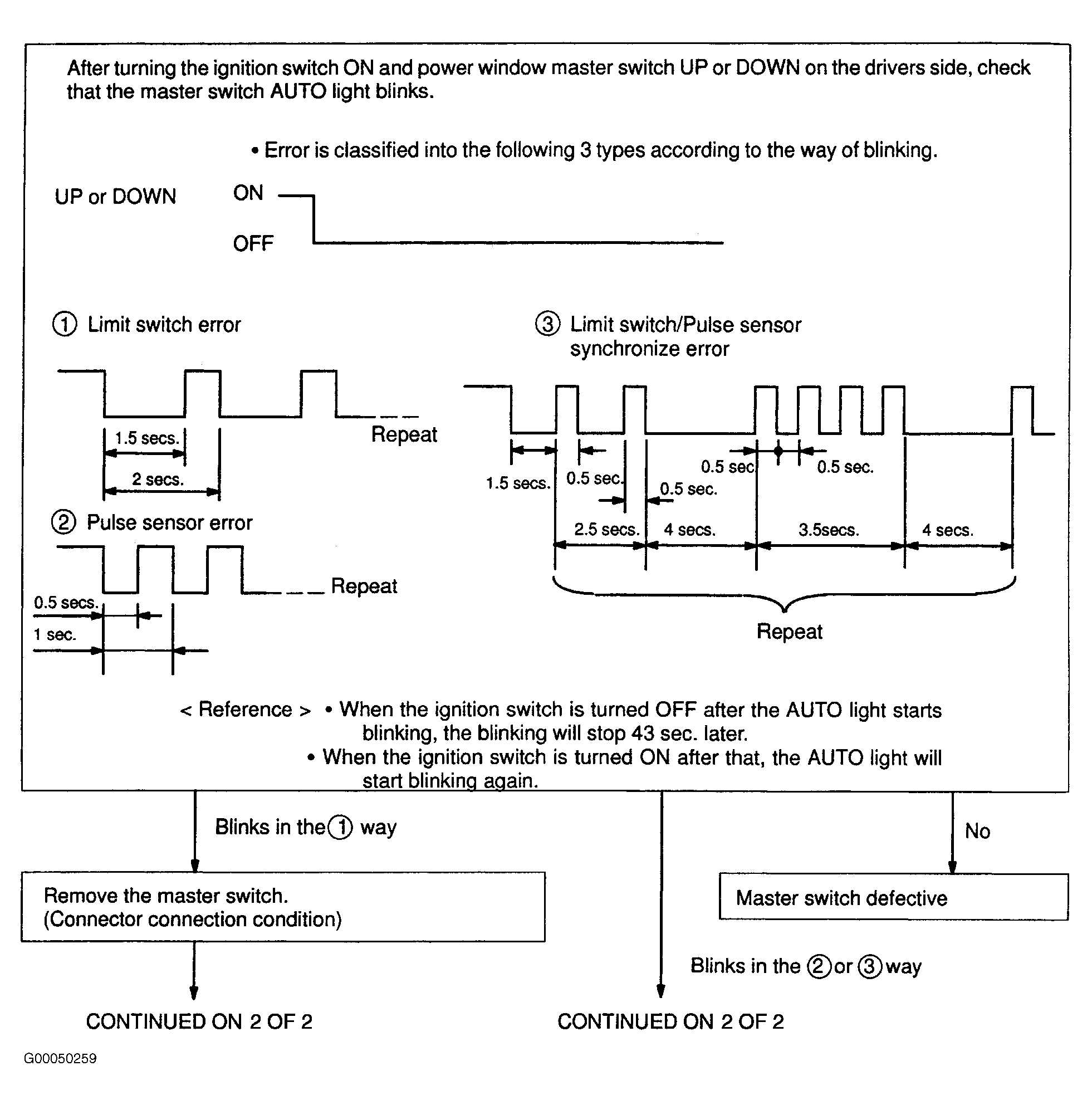

Fig 1: One Touch Power Window Does Not Move Up Or Down (Prius - 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

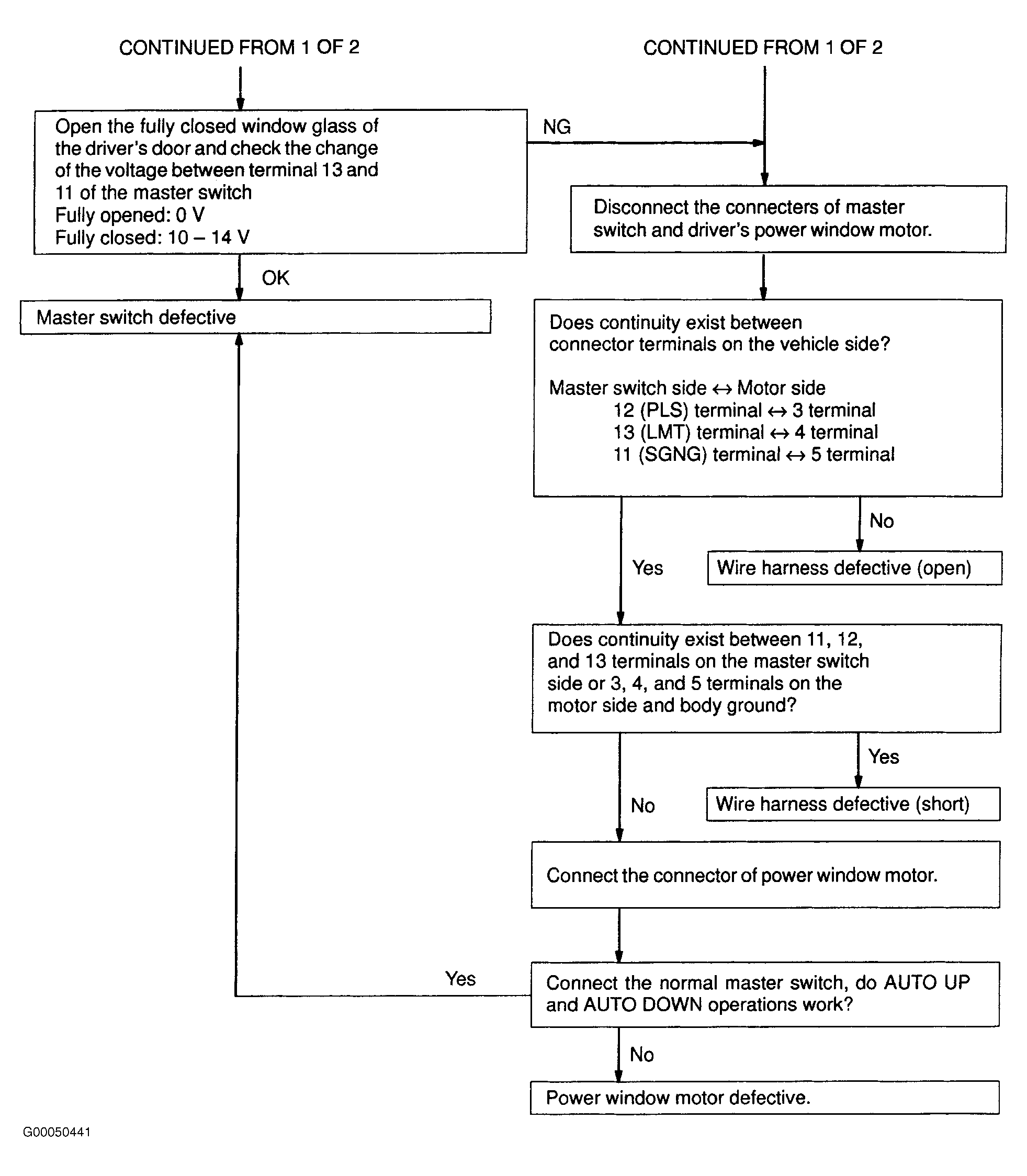

Fig 2: One Touch Power Window Does Not Move Up Or Down (Prius - 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

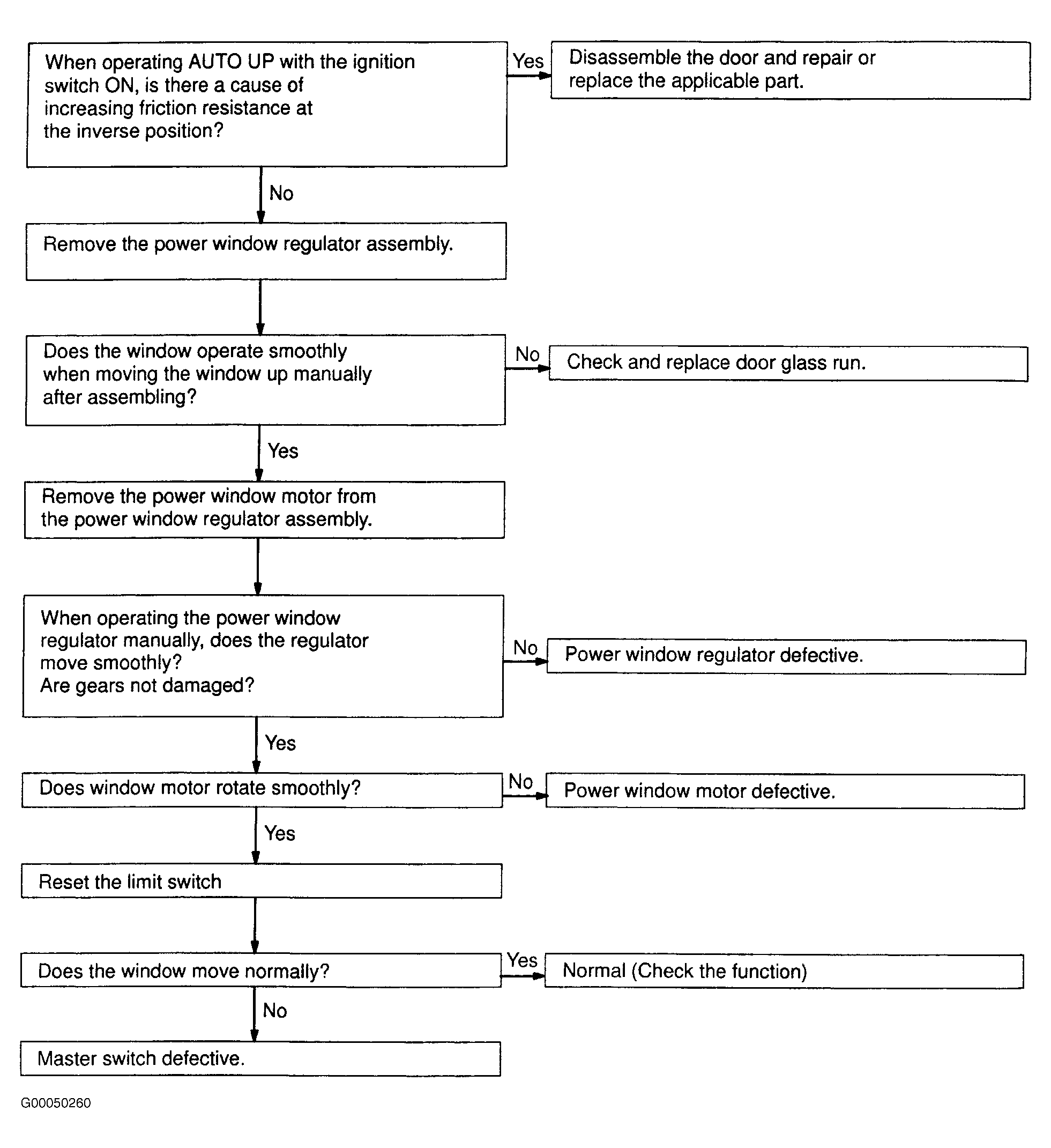

Fig 3: Power Window Moves Down During AUTO UP Operation (Prius)

Fig 4: DOWN Function Does Not Work When Objects Are Caught In Window Glass (Prius)
