Testing Procedures

For wiring diagram, see Fig 1. For testing procedures, see Fig 2 and Fig 3 .

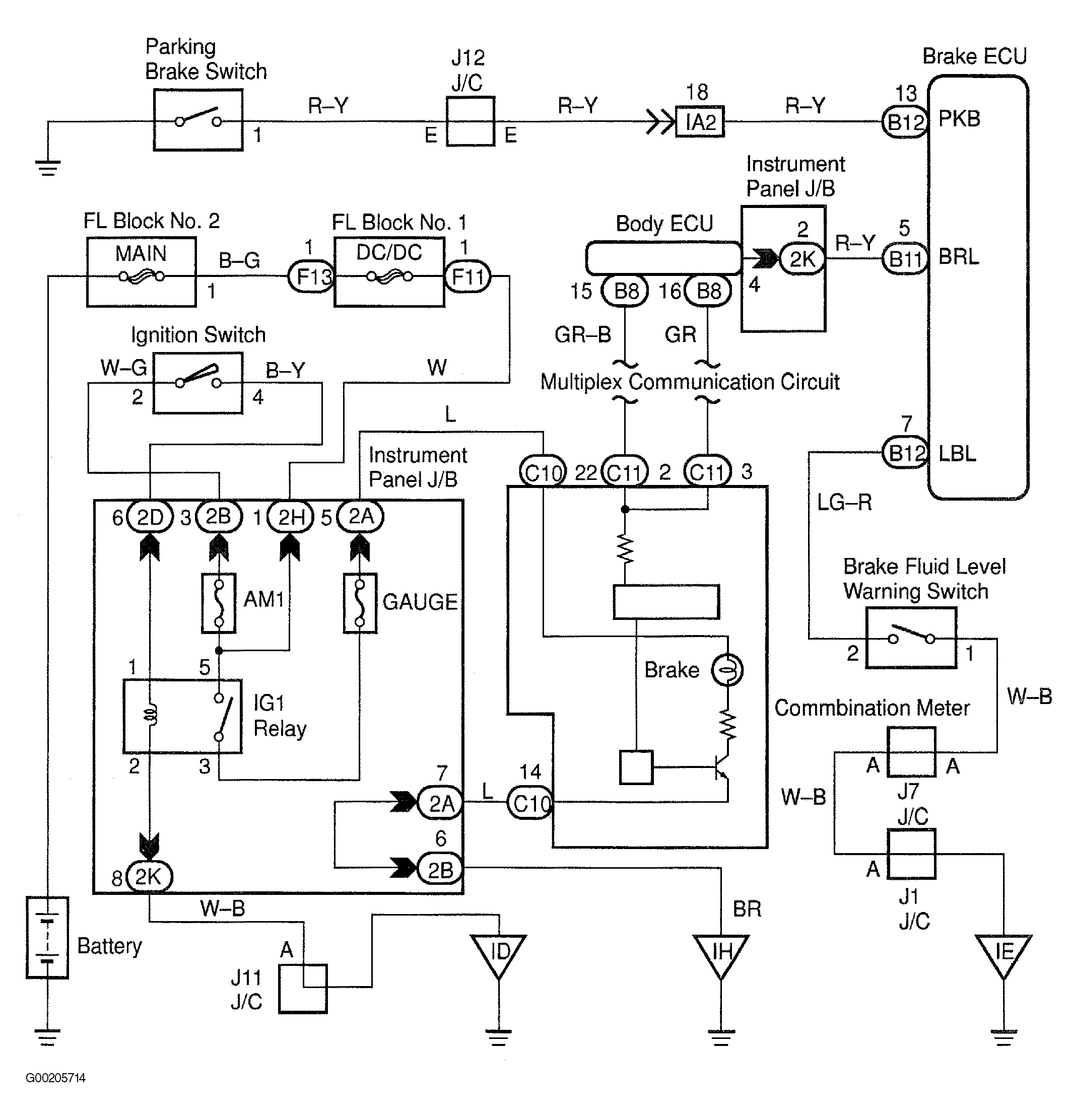

Fig 1: Brake Warning Light Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

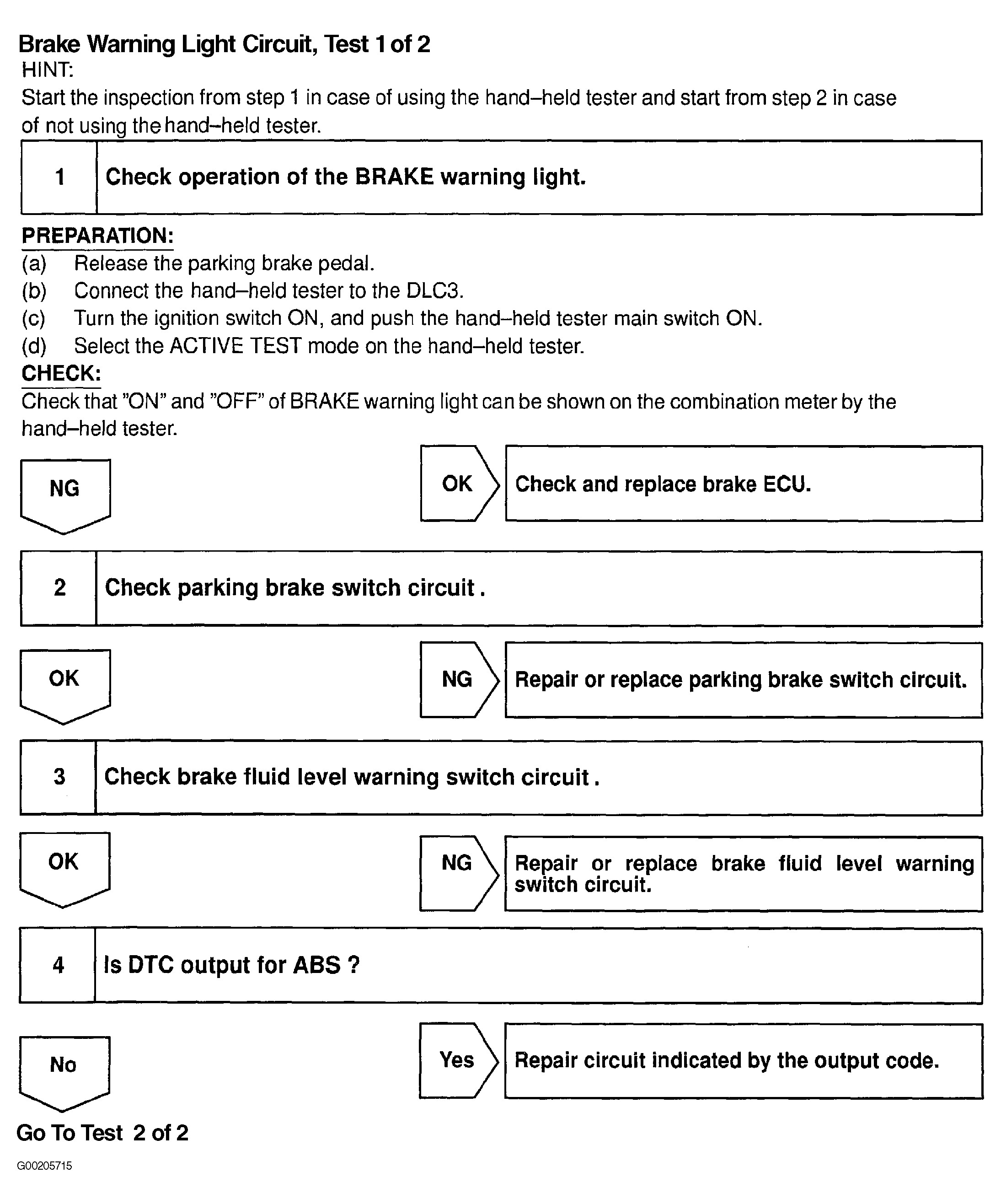

Fig 2: Brake Warning Light Circuit Testing Procedure (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

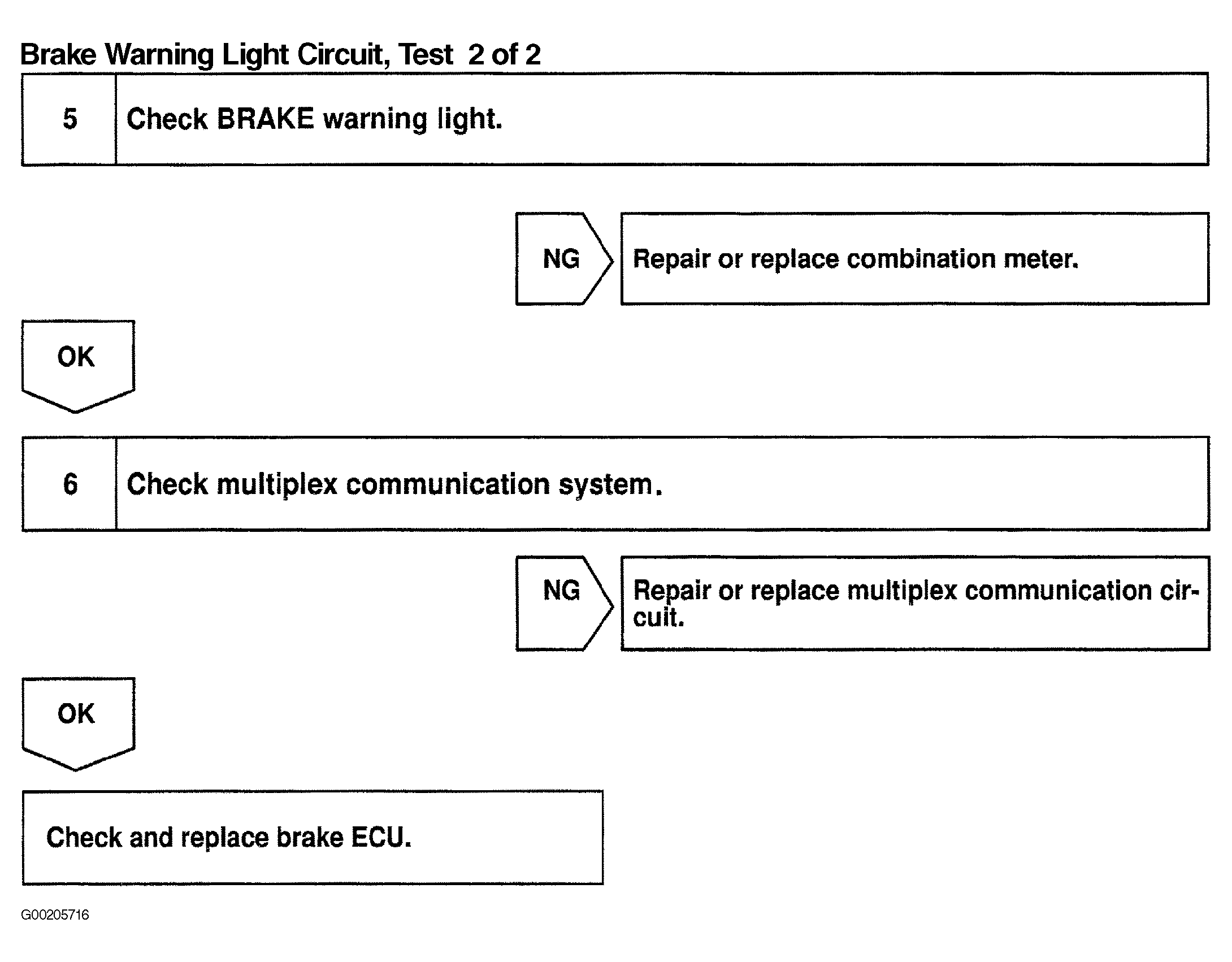

Fig 3: Brake Warning Light Circuit Testing Procedure (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
