Diagnostic Trouble Code Chart

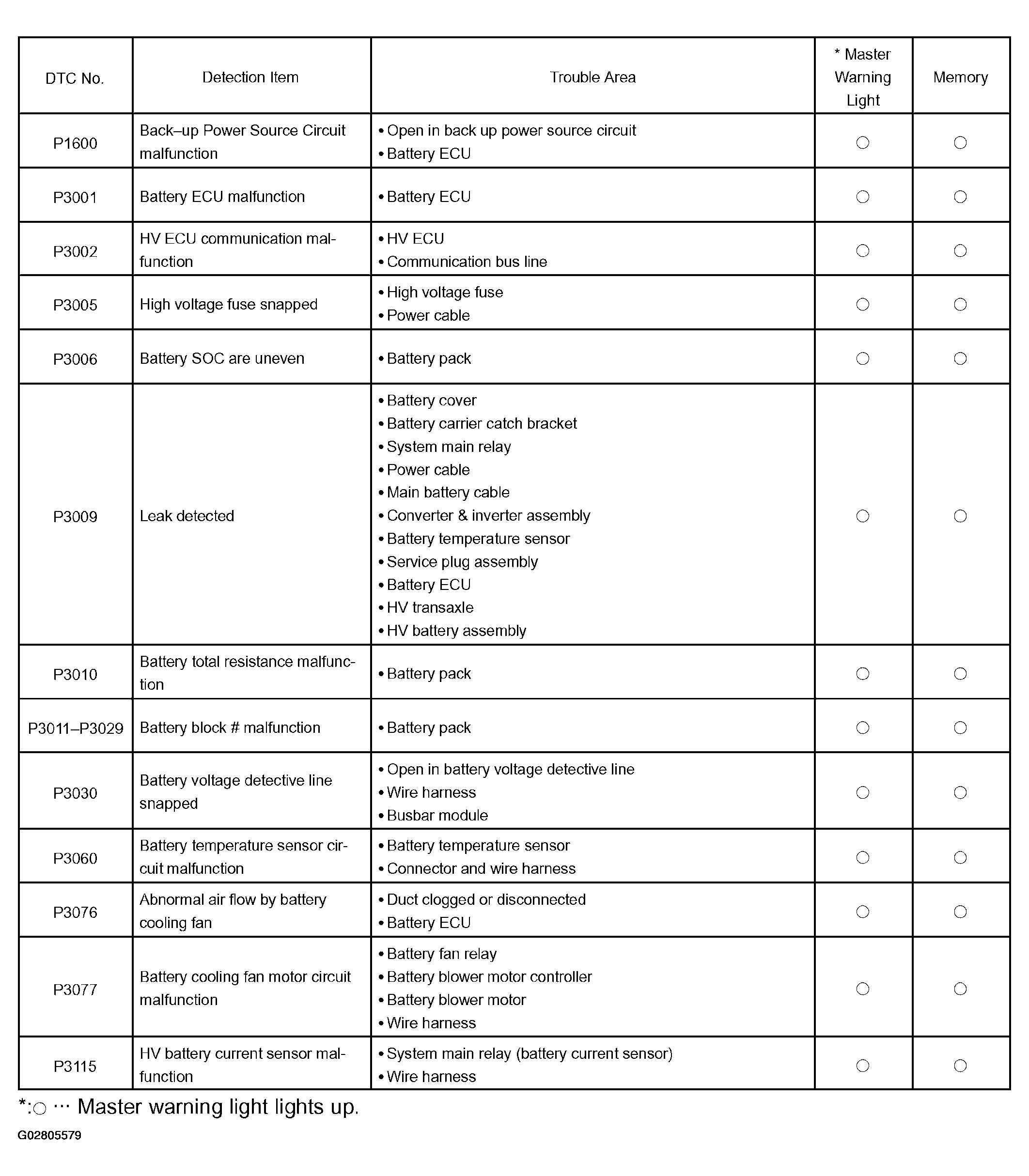

DIAGNOSTIC TROUBLE CODES
| DTC | Description |
|---|---|
| P1600 | Back Up Power Source Circuit Malfunction |
| P3001 | Battery ECU Malfunction |
| P3002 | HV ECU Communication Malfunction |
| P3005 | High Voltage Fuse Snapped |
| P3006 | Battery SOC Are Uneven |
| P3009 | Leak Detected |
| P3010 | Battery Total Resistance Malfunction |
| P3011-P3029 | Battery Block # Malfunction |
| P3030 | Battery Voltage Detective line Snapped |
| P3060 | Battery Temperature sensor Circuit Malfunction |
| P3076 | Abnormal Air Flow by Battery Cooling Fan |
| P3077 | Battery Cooling Fan Motor Circuit Malfunction |
| P3115 | HV Battery Current Sensor Malfunction |
