Engine Lubrication System: Installation

  1. INSTALL OIL PUMP
    1. Place the drive and driven rotors into timing chain cover with the marks facing the oil pump cover side.

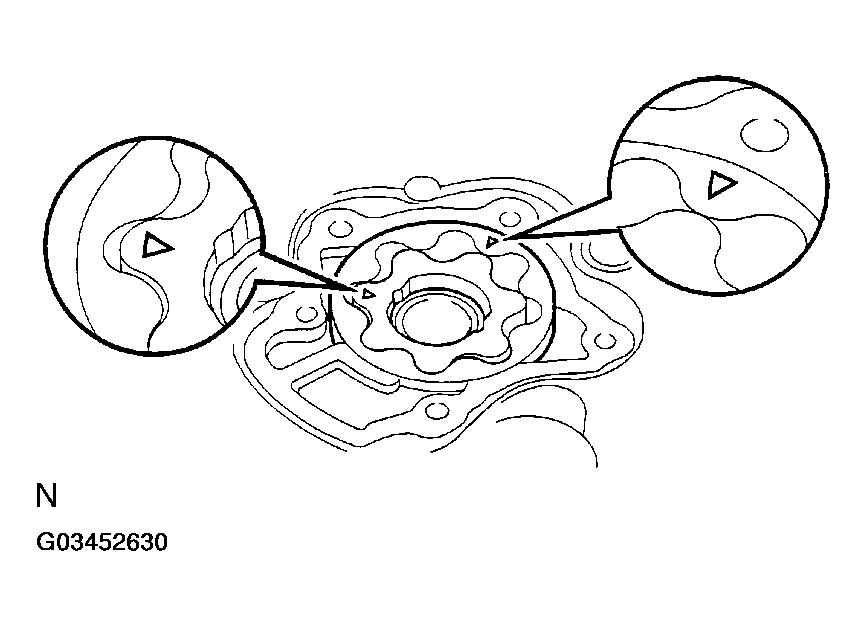

      Fig 1: Identifying Drive And Driven Rotor Installation Marks
      G03452630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the oil pump cover to the timing chain cover with the 2 bolts and 3 screws.

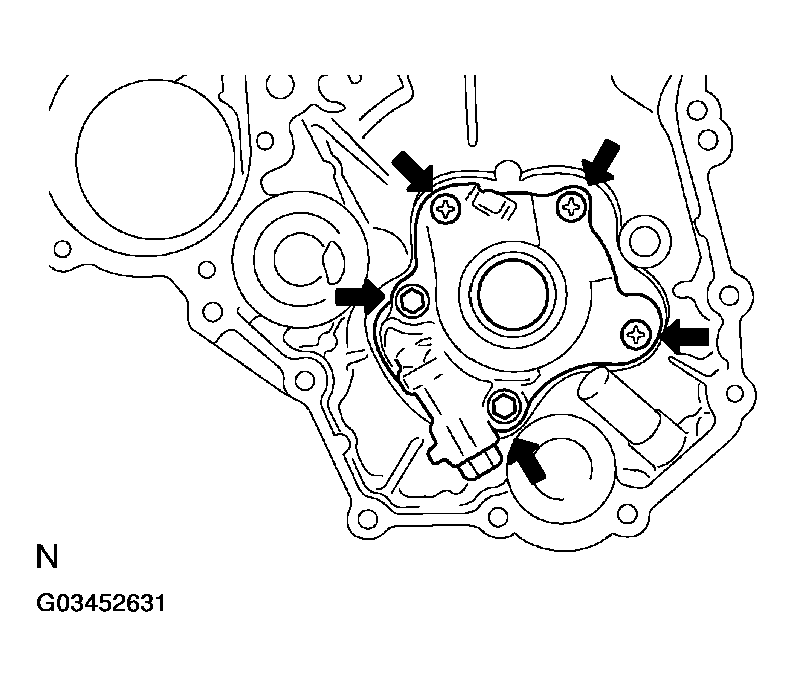

      3. Fig 2: Installing Oil Pump Cover
      G03452631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: Bolt 8.8 N.m (90 kgf.cm, 78 in..lbf) Screw 10.3 N.m (105 kgf.cm, 8 ft.lbf)

  2. INSTALL TIMING CHAIN COVER (See  INSTALLATION  )
  3. FILL WITH ENGINE OIL
  4. CHECK FOR LEAKS
