Oil Pump Components

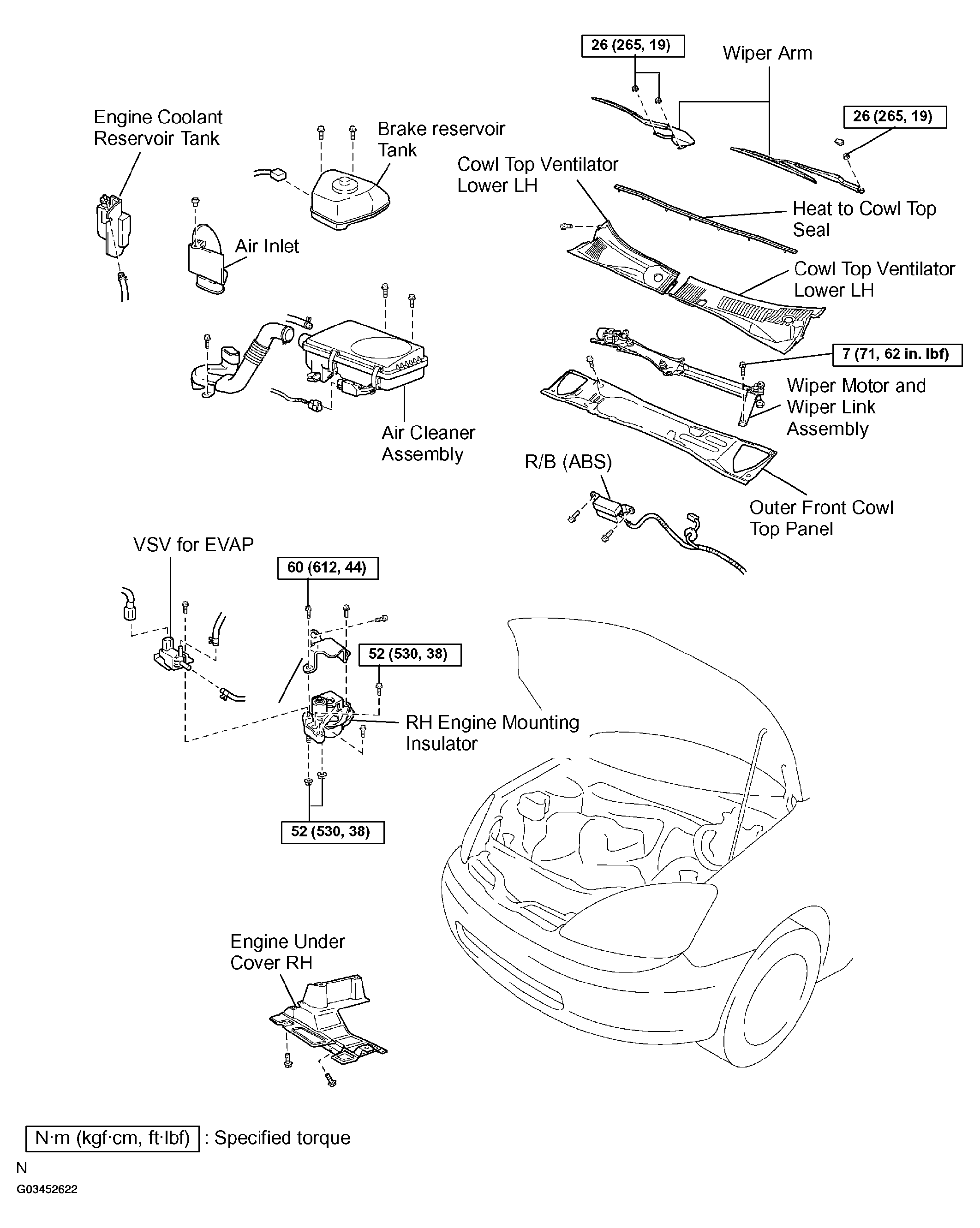

Fig 1: Replacement Components For Oil Pump Removal And Torque Specifications (1 Of 2)
G03452622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

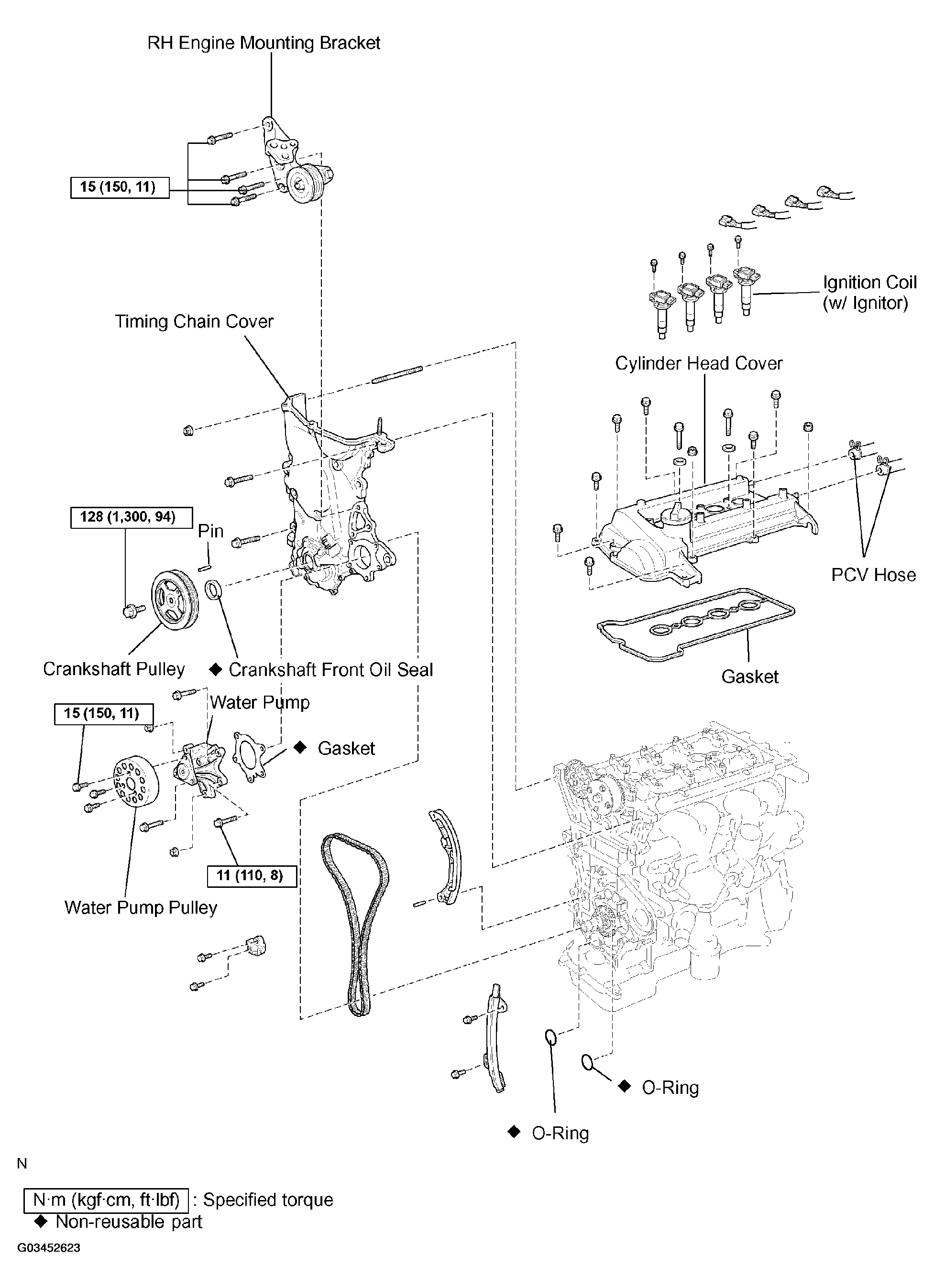

Fig 2: Replacement Components For Oil Pump Removal And Torque Specifications (2 Of 2)
G03452623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

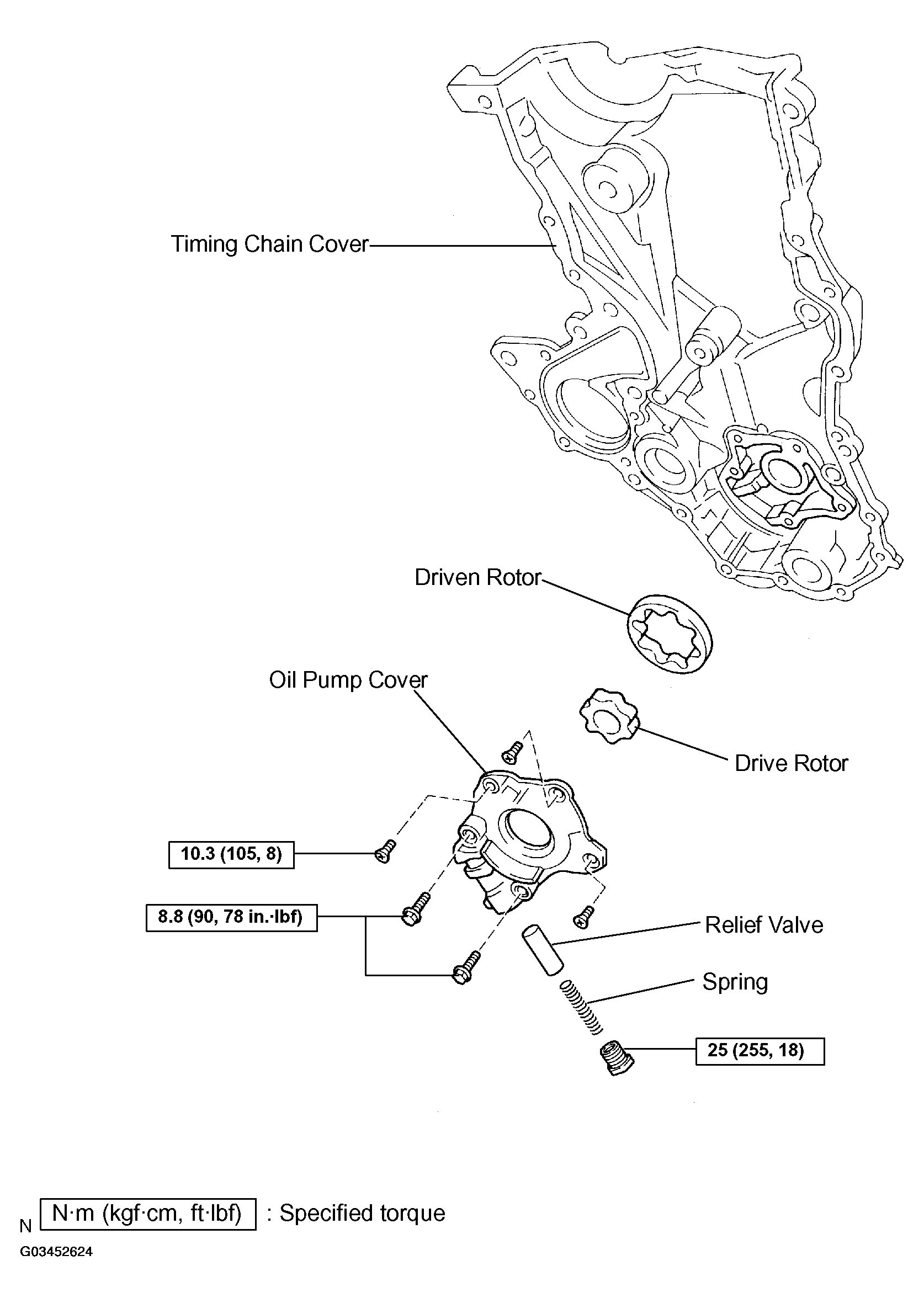

Fig 3: Removing Oil Pump
G03452624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
