Vehicle Lift And Support Locations

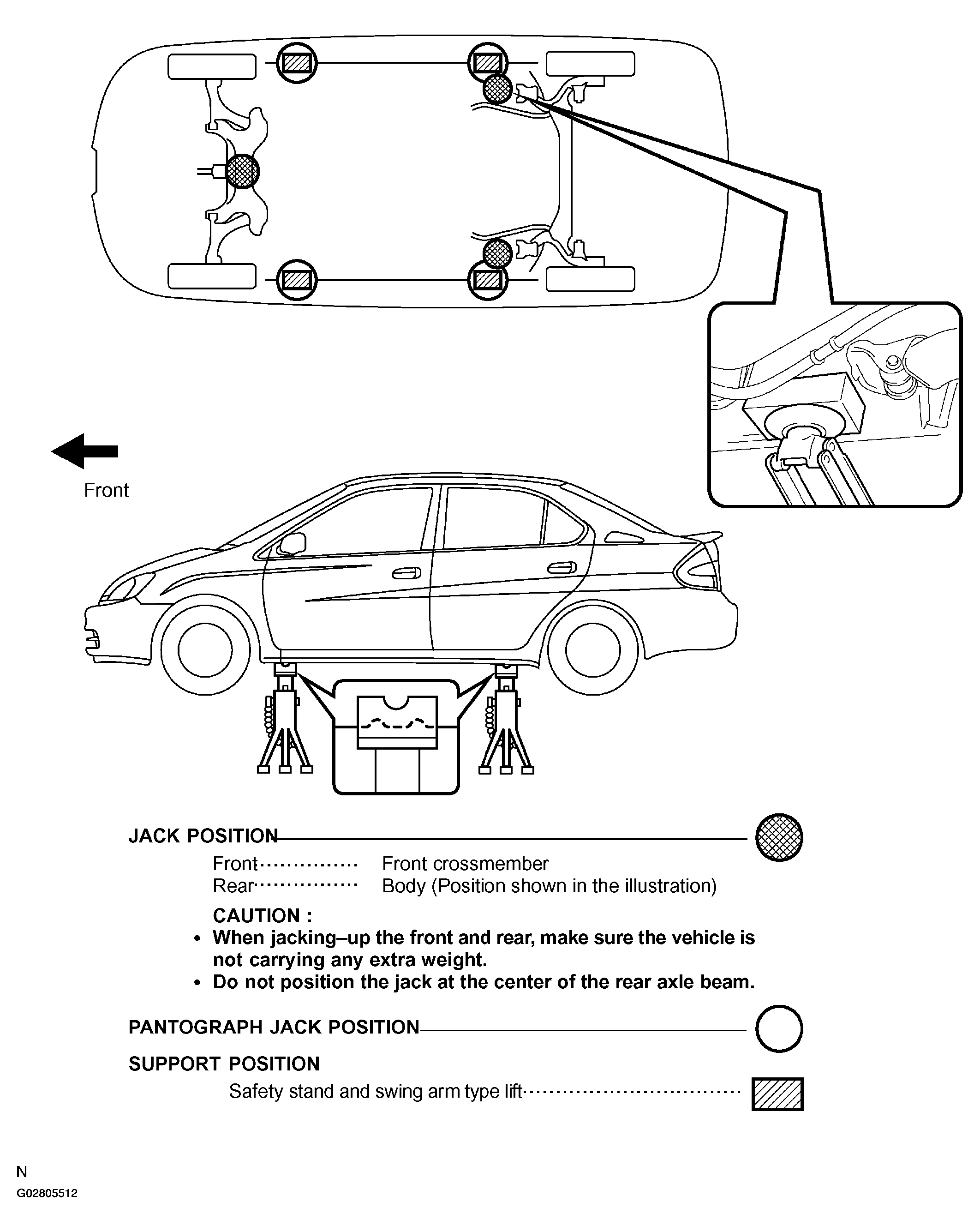

Fig 1: Identifying Vehicle Lift And Support Locations
G02805512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

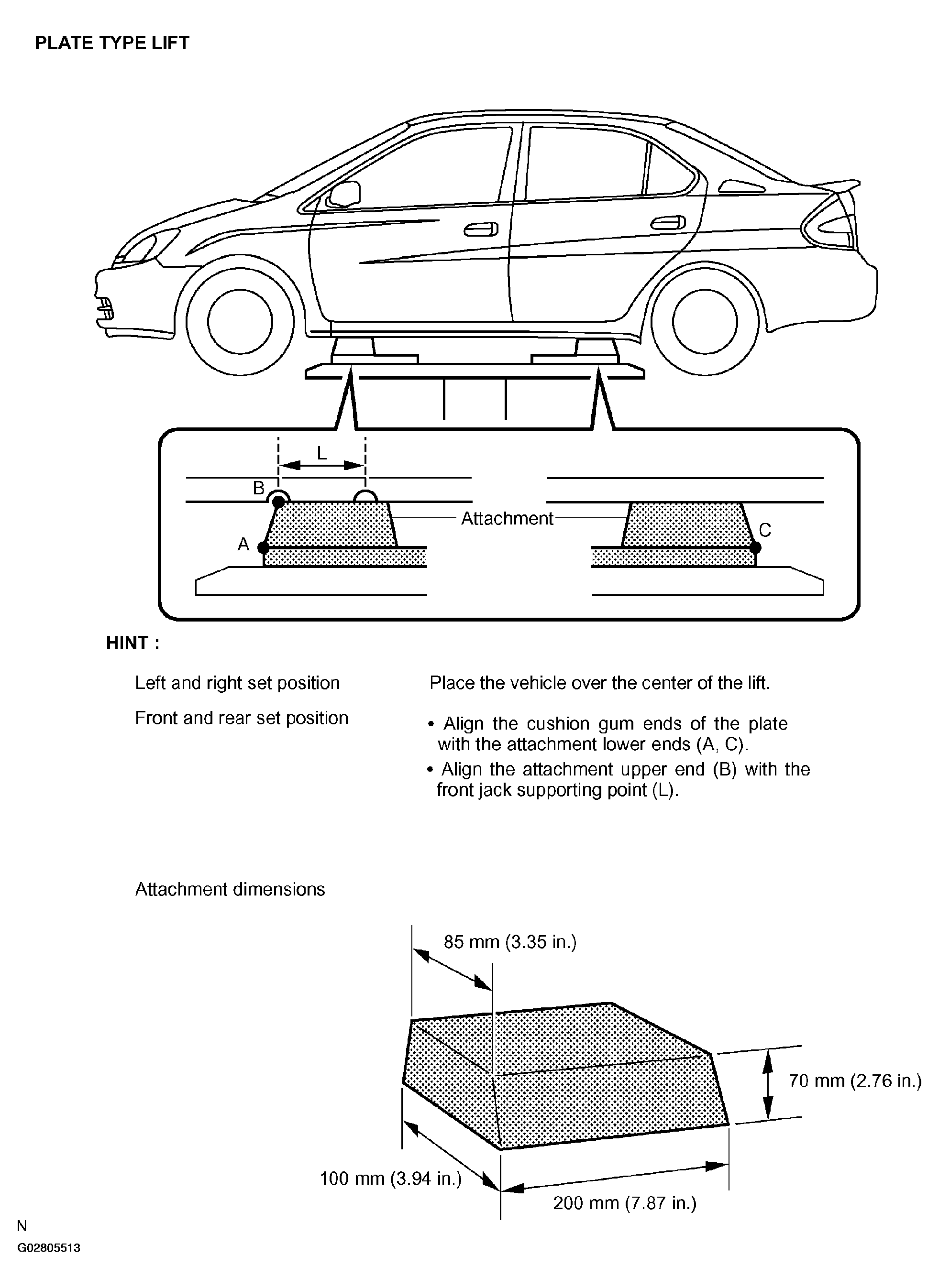

Fig 2: Identifying Plate Type Lift
G02805513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
