Adjust Shift Lever Operation

  1. Remove the steering column lower cover and instrument lower finish panel RH (See REMOVAL , REMOVAL & INSTALLATION (PRIUS) ).
  2. Shift into the P position.
  3. Loosen the control cable adjusting nut.

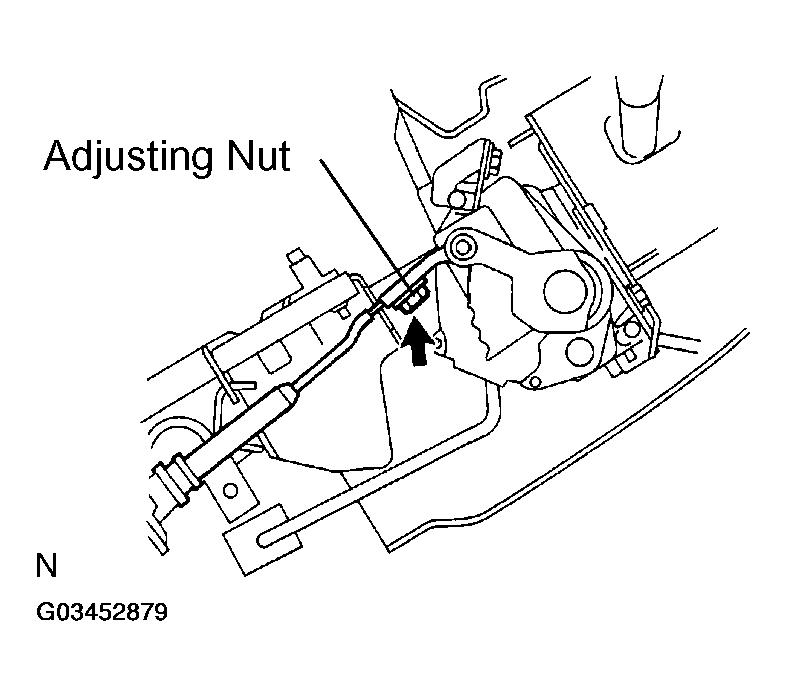

    4. Fig 1: Locating Shift Lever Operation Adjusting Nut
    G03452879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Release the parking brake and push the vehicle back and forth to check that it does not move.
  5. After the check, depress the brake pedal.
  6. While pushing the shift lever toward P range side, lightly pull the rod of the control cable once and release it.
  7. While pushing the shift lever toward P range side, tighten the adjusting part of the control cable.
  8. Install the steering column lower cover and instrument lower finish panel RH (See INSTALLATION , REMOVAL & INSTALLATION (PRIUS) ).
