Column Shift Assembly: Removal

NOTE: Do not disassemble the shift lever assembly.
  1. REMOVE STEERING WHEEL PAD (See  REMOVAL  )
  2. REMOVE STEERING WHEEL (See  REMOVAL  )
  3. REMOVE INSTRUMENT LOWER FINISH PANEL (See  REMOVAL & INSTALLATION (PRIUS)  )
  4. REMOVE COLUMN LOWER AND UPPER PANELS (See  REMOVAL  )
  5. REMOVE COMBINATION SWITCH (See  REMOVAL  )
  6. REMOVE SHIFT LEVER ASSEMBLY
  1. Remove the 3 bolts.

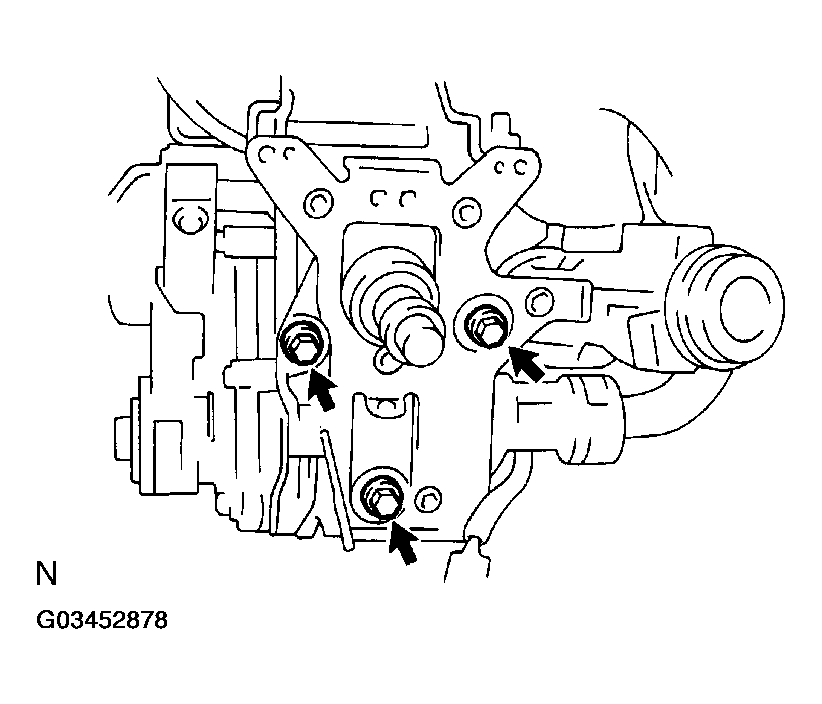

    Fig 1: Removing Shift Lever Assembly
    G03452878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Disconnect the shift lever connector.
  3. Disconnect the shift lever assembly and transmission control cable (See REMOVAL ).
  4. Remove the shift lever assembly.
