Counter Drive Gear: Disassembly

Using SST and a press, drive out the ball bearing.

SST 09950-00020, 09950-60010 (09951-00330), 09950-70010 (09951-07100)

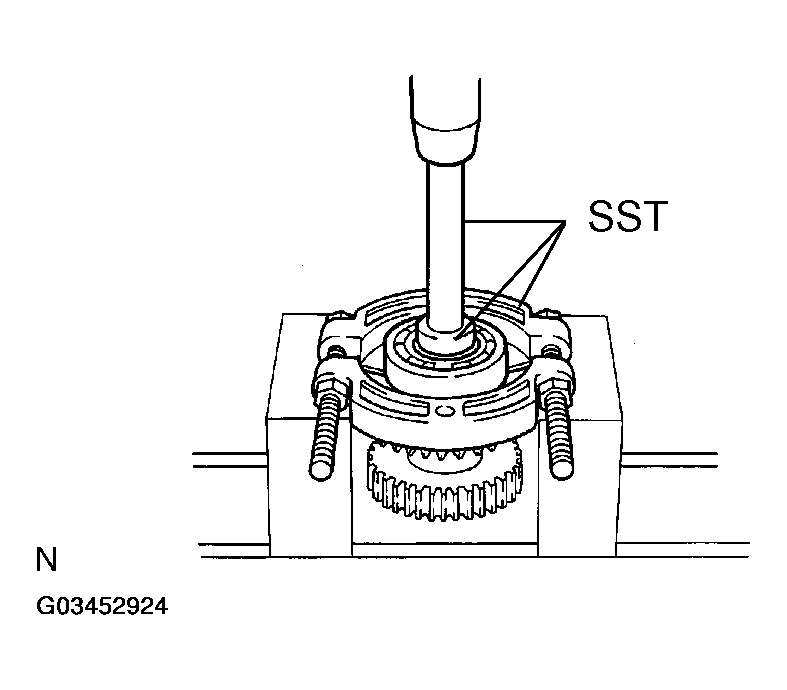

Fig 1: Removing Ball Bearing LH (MG2 Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST and a press, drive out the ball bearing.

   SST 09950-00020, 09950-60010 (09951-00330), 09950-70010 (09951-07100)

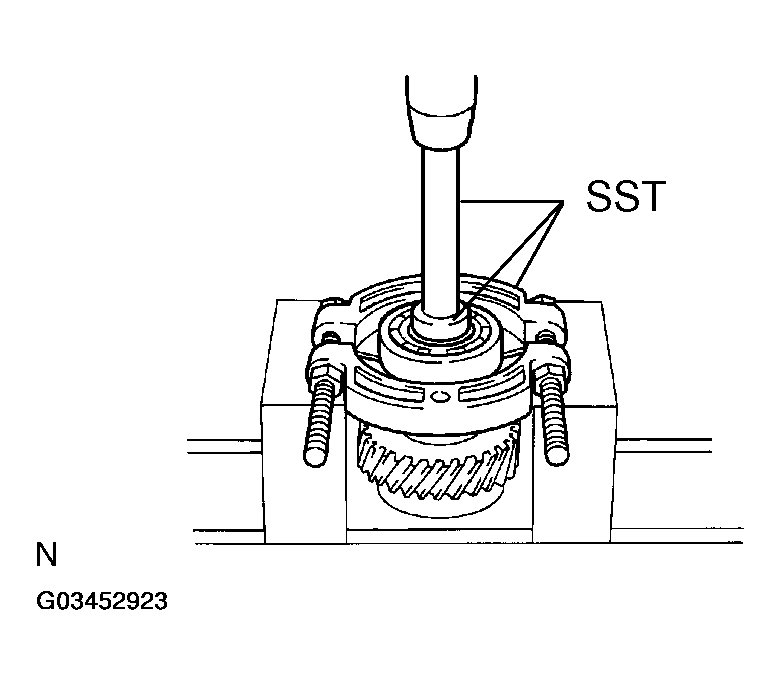

   Fig 2: Removing Ball Bearing RH (MG2 Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
