Counter Drive Gear: Reassembly

1. INSTALL BALL BEARING RH (MG1 SIDE)

   Using SST and a press, press in the ball bearing.

   SST 09950-60010 (09951-00460), 09950-70010 (09951-07100)

   Fig 1: Installing Ball Bearing RH (MG1 Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL BALL BEARING LH (MG2 SIDE)

Using SST and a press, press in the ball bearing.

SST 09950-60010 (09951-00330, 09951-00460), 09950-70010 (09951-07100)

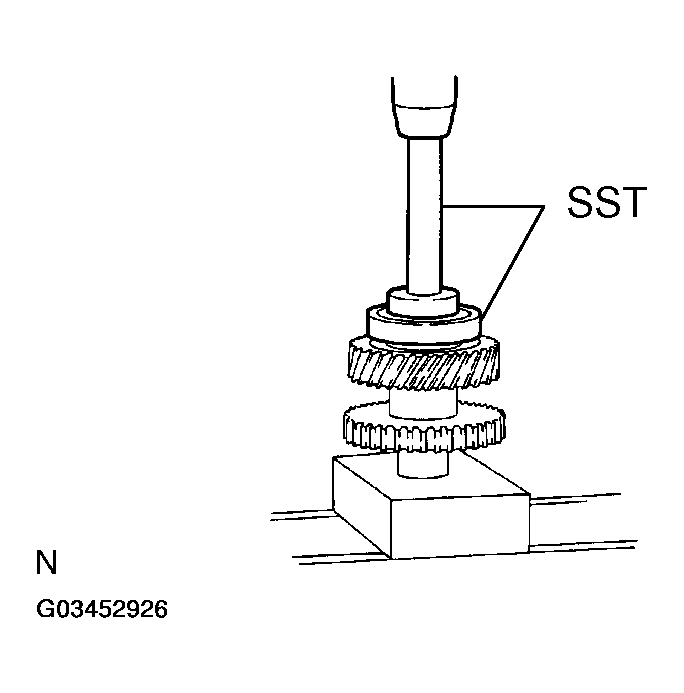

Fig 2: Installing Ball Bearing LH (MG2 Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
