Counter Driven Gear: Disassembly

1. REMOVE TAPERED ROLLER BEARING (MG1 SIDE)

   Using SST and a press, remove the tapered roller bearing. SST 09527-1001 1, 09950-00020, 09950-60010 (09951-00360), 09950-70010 (09951-07100)

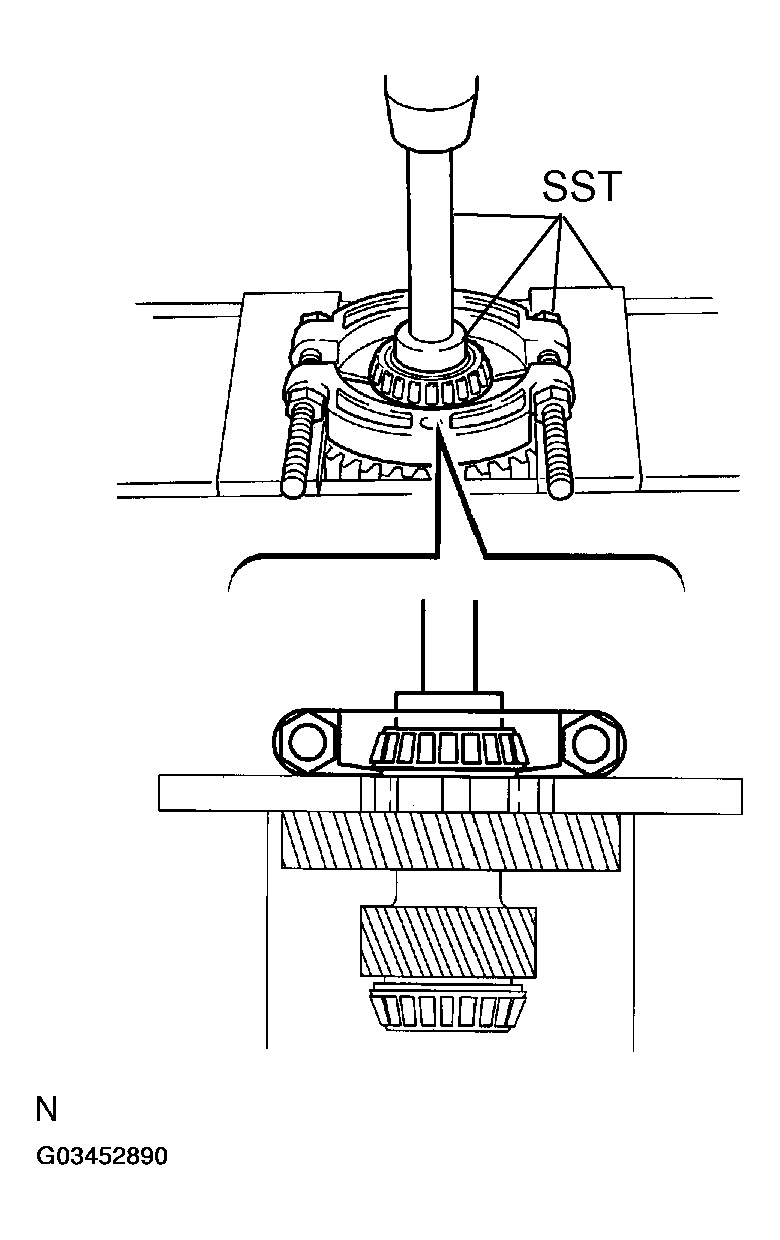

   Fig 1: Removing Tapered Roller Bearing (MG1 Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE TAPERED ROLLER BEARING (MG2 SIDE)

Using SST and a press, remove the tapered roller bearing. SST 09950-00020, 09950-60010 (09951-00360), 09950-70010 (09951-07100)

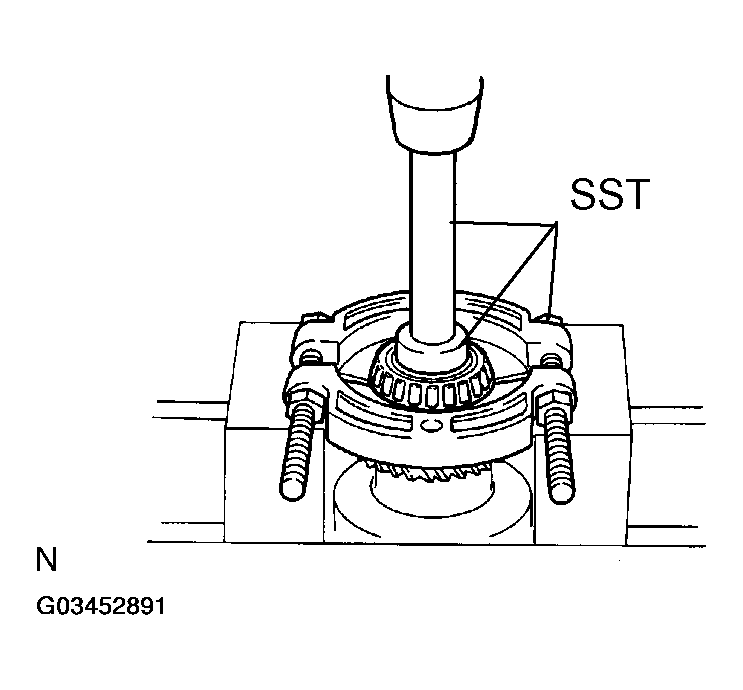

Fig 2: Removing Tapered Roller Bearing (MG2 Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
