Differential Case: Disassembly

REMOVE TAPERED ROLLER BEARING RH
Using SST, remove the tapered roller bearing RH.

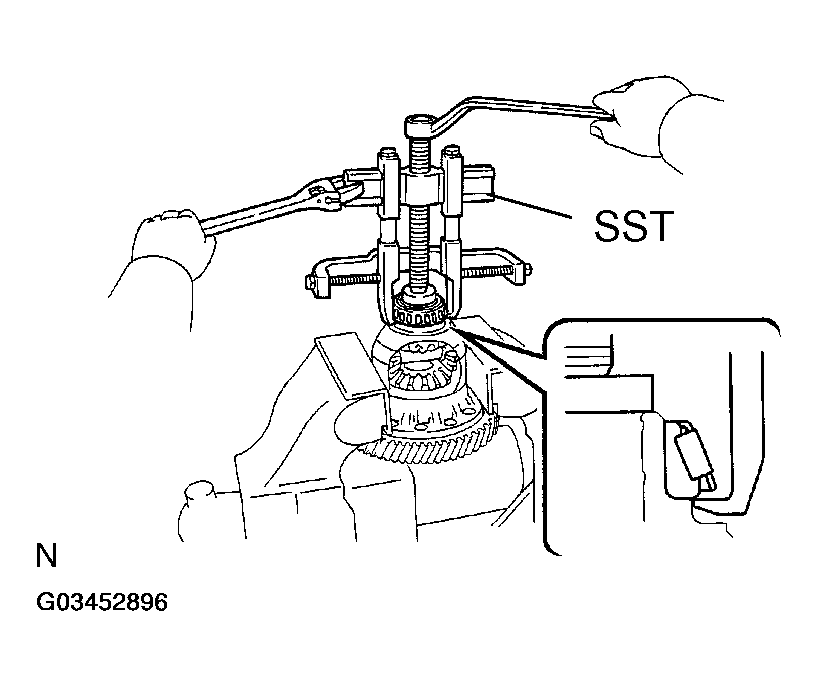

Fig 1: Removing Tapered Roller Bearing RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09950-40011 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04060, 09958-04010)
REMOVE TAPERED ROLLER BEARING LH
Using SST, remove the tapered roller bearing LH.

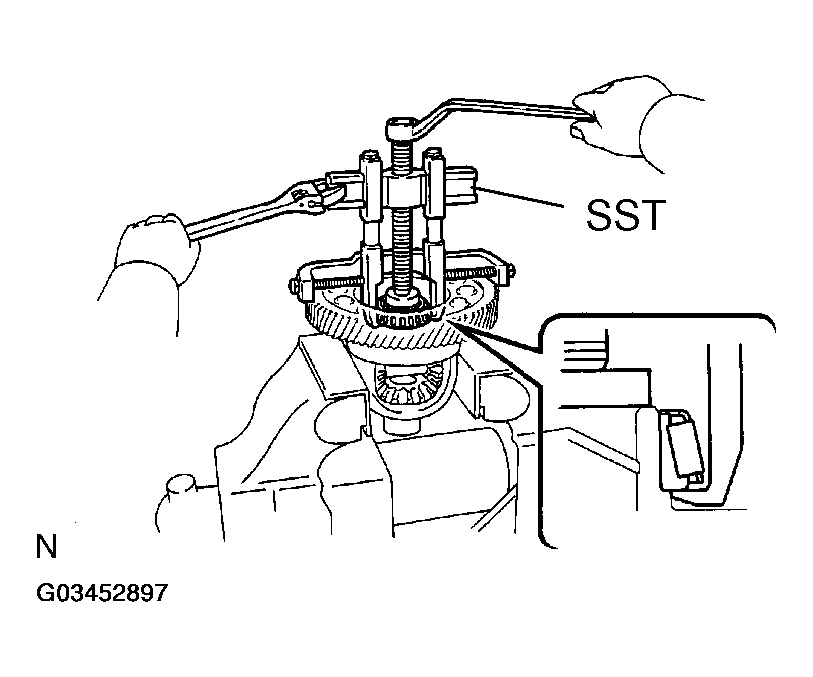

Fig 2: Removing Tapered Roller Bearing LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09950-40011 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04060, 09958-04010)
DISASSEMBLE DIFFERENTIAL CASE

Using a pin punch and a hammer, drive out the straight pin.

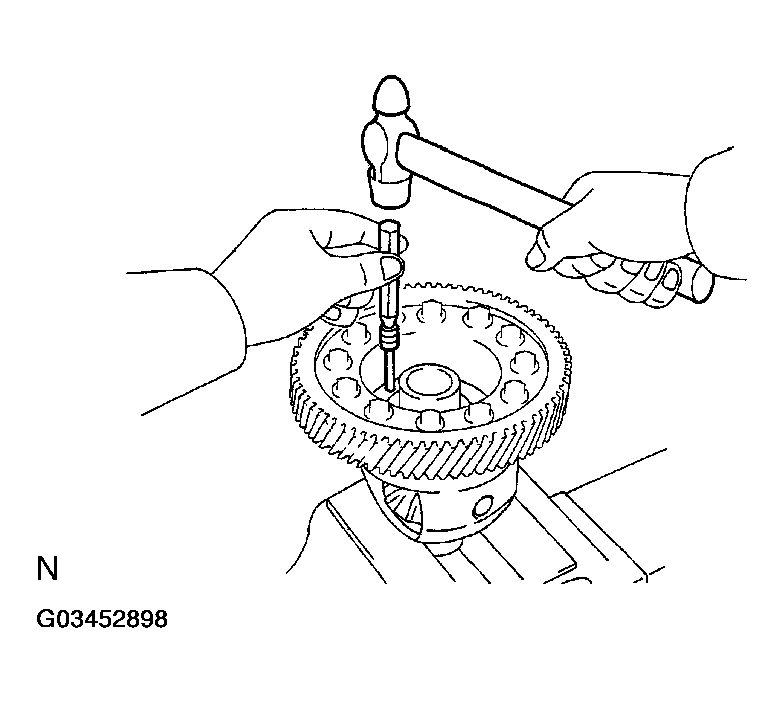

Fig 3: Removing Straight Pin
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the pinion shaft, 2 pinions, 2 pinion thrust washers, 2 side gears and 2 side gear thrust washers from the case.

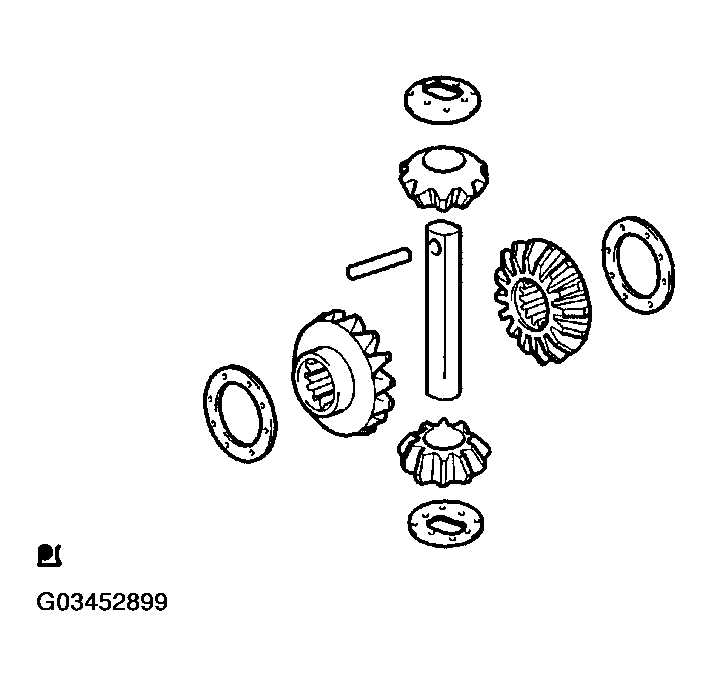

Fig 4: Removing Pinion Shaft, Pinions, Pinion Thrust Washers, Side Gears And Side Gear Thrust Washers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
