Differential Case: Reassembly

ASSEMBLE DIFFERENTIAL CASE

Coat the 2 side gear thrust washers and 2 pinion thrust washers with ATF.
Install the 2 side gears, 2 pinions and 4 thrust washers to the case.

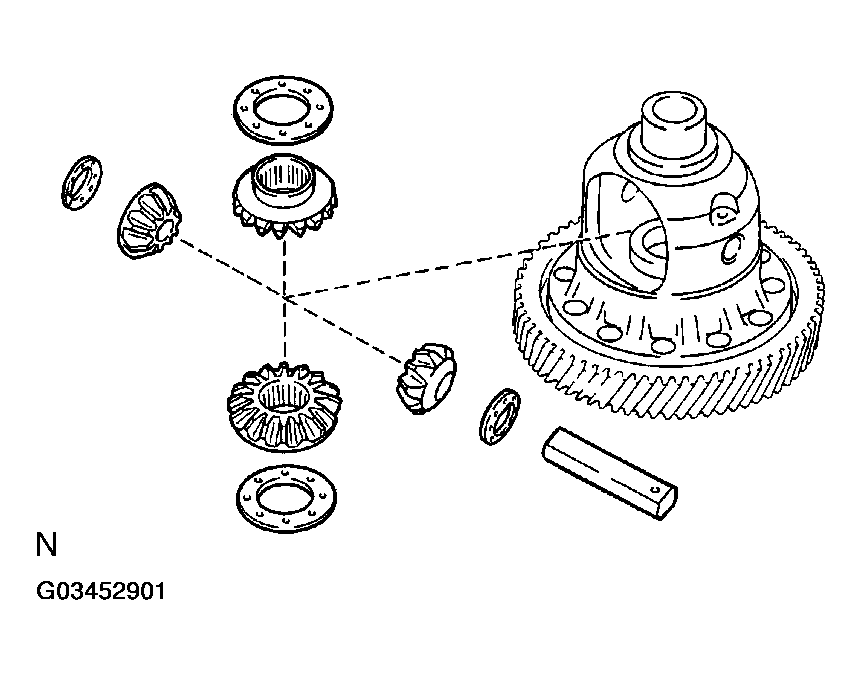

Fig 1: Installing Side Gears, Pinions And Thrust Washers To Differentials Case
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the side gear backlash.

Measure the side gear backlash while pushing one pinion gear toward the case.

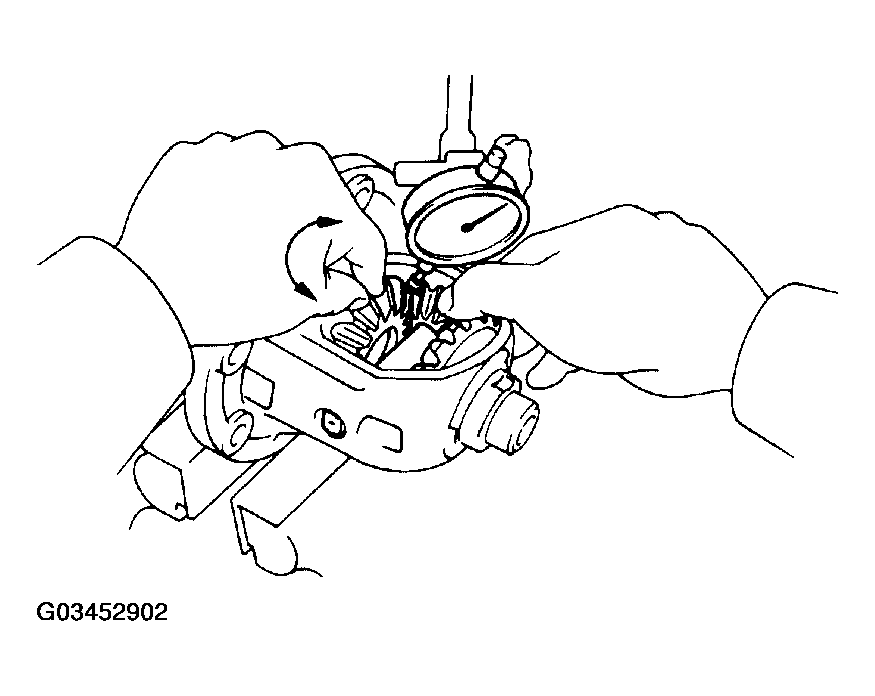

Fig 2: Measuring Side Gear Backlash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard backlash: 0.05 - 0.20 mm (0.0020 - 0.0079 in.)

Referring to the table below, select thrust washers which backlash is surely within the specified range. Select washers of the same size for both sides.

Thrust washer thickness

THRUST WASHER THICKNESS SPECIFICATIONS

Thickness	Thickness
0.95 mm (0.0374 in.)	1.10 mm (0.0433 in.)
1.00 mm (0.0394 in.)	1.15 mm (0.0453 in.)
1.05 mm (0.0414 in.)	1.20 mm (0.0472 in.)

If the backlash is not within the specified range, install a thrust washer of a different thickness.

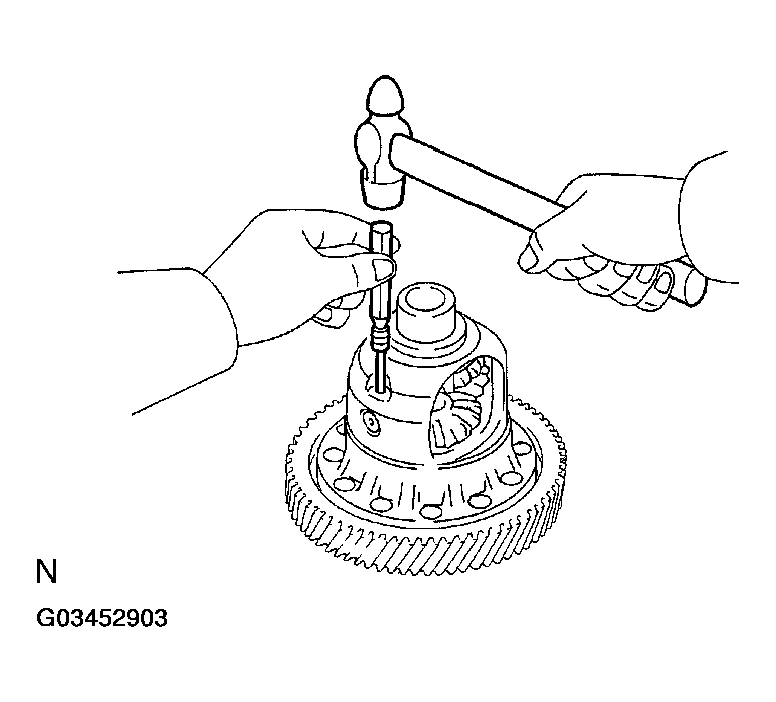

Fig 3: Installing Straight Pin

Using a pin punch and a hammer, install the straight pin.
Stake the differential case.

INSTALL 2 TAPERED ROLLER BEARINGS

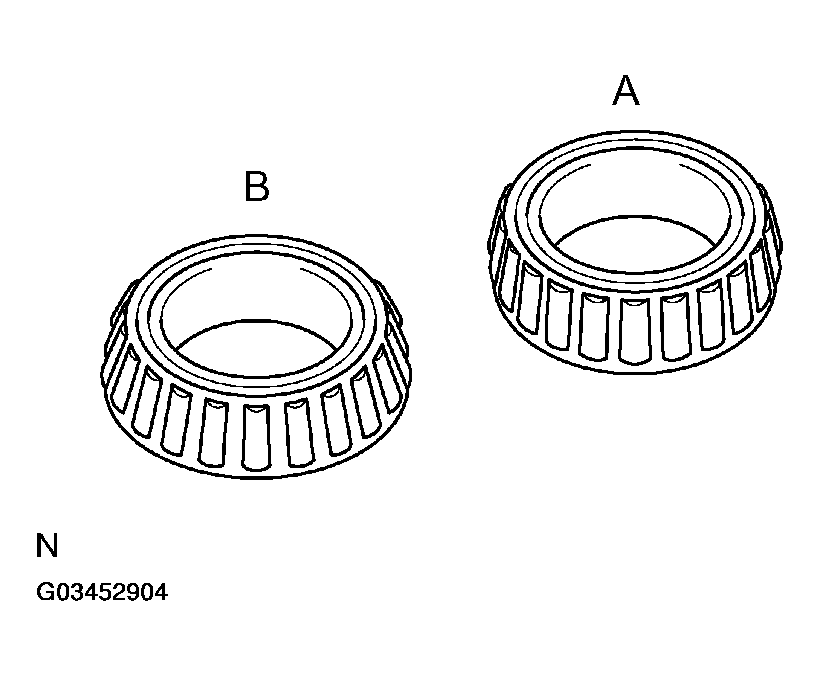

CAUTION: A: The one which has bigger rollers (The number of rollers is 22.)
B: The one which has smaller rollers (The number of rollers is 24.)

Fig 4: Installing Tapered Roller Bearings
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using SST and a press, press in the tapered roller bearing RH. (Bearing B)
  SST 09710-22021 (09710-01031), 09950-70010 (09951-07100)

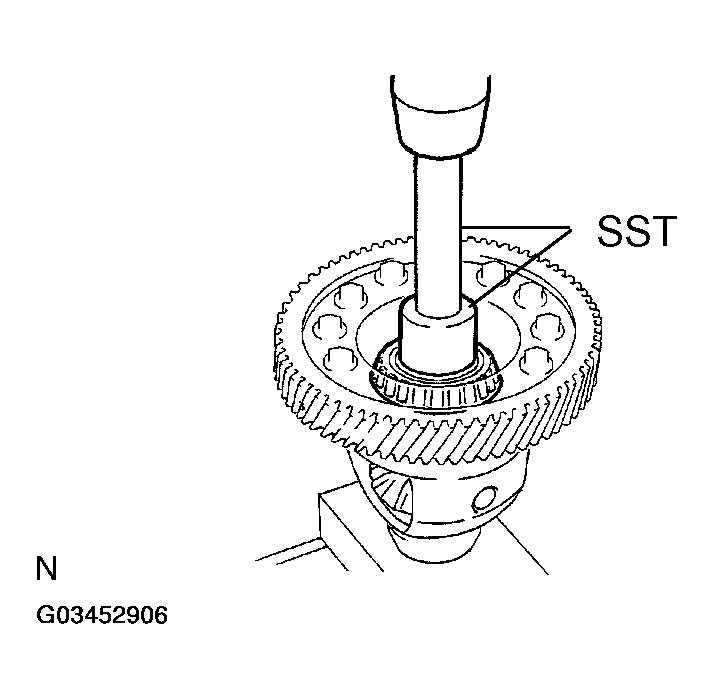

  Fig 5: Installing Tapered Roller Bearing RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, press in the tapered roller bearing LH. (Bearing A)
SST 09710-22021 (09710-01031), 09950-70010 (09951-07100)

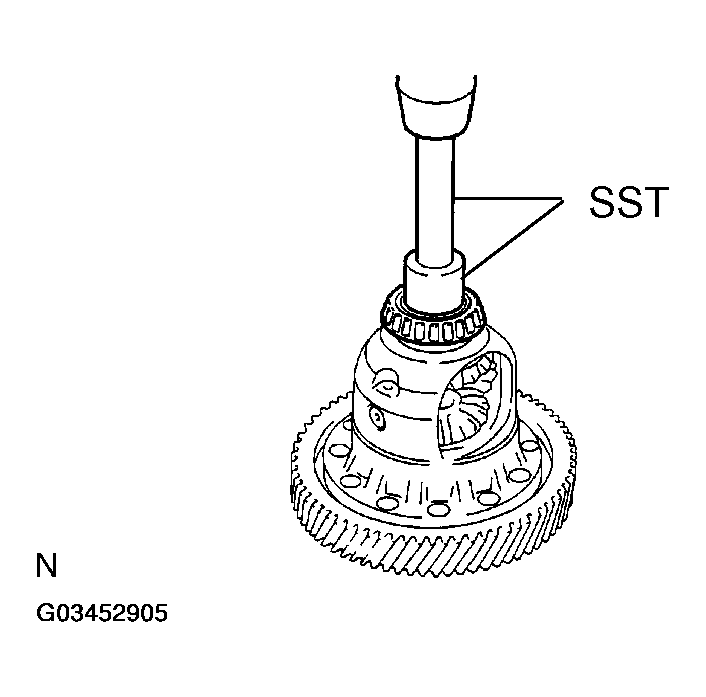

Fig 6: Installing Tapered Roller Bearing LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
