Input Shaft: Inspection

1. INSPECT BUSH OF SUN GEAR (MG1 SIDE)
   1. Using a dial indicator, measure the inside diameter of the bush.

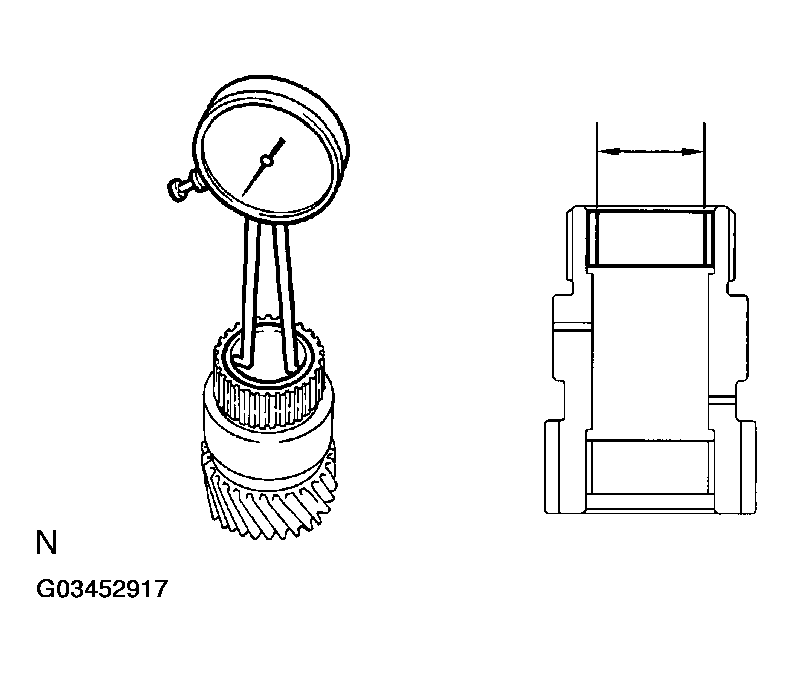

      Fig 1: Measuring Inside Diameter Of Bush (MG1 Side)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard diameter:

      25.525 - 25.546 mm (1.00492 - 1.00575 in.)

      Maximum diameter: 25.596 mm (1.00771 in.)

   2. Visually check and make sure that burnt spots and scratches are not identified.

   If the inside diameter exceeds the limit, replace the sun gear assembly.

2. INSPECT BUSH OF SUN GEAR (MG2 SIDE)
   1. Using a dial indicator, measure the inside diameter of the bush.

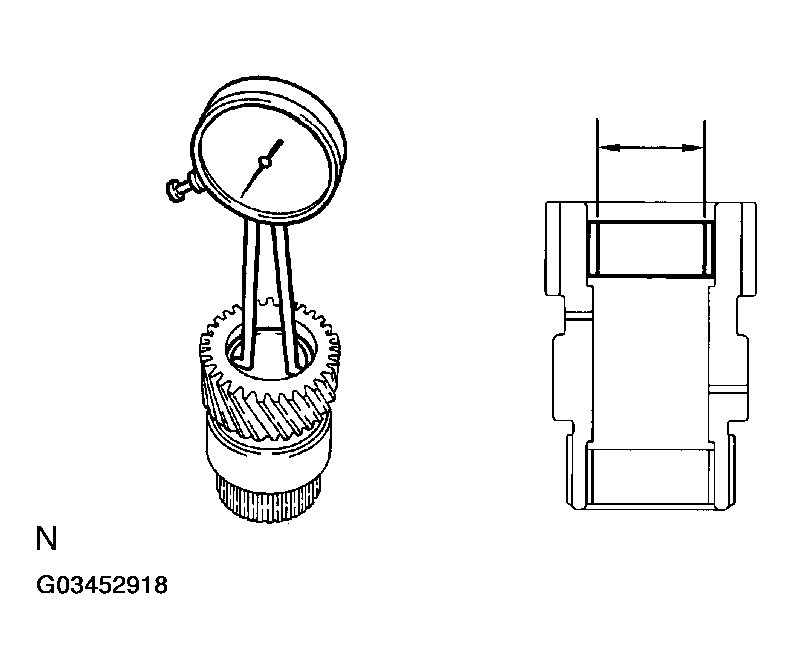

      Fig 2: Measuring Inside Diameter Of Bush (MG2 Side)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard diameter:

      25.525 - 25.546 mm (1.00492 - 1.00575 in.)

      Maximum diameter: 25.596 mm (1.00771 in.)

   2. Visually check and make sure that burnt spots and scratches are not identified.

   If the inside diameter exceeds the limit, replace the sun gear assembly.

3. CHECK NEEDLE ROLLER BEARING

Check that burnt spots, deformation or play due to the wear is not identified.

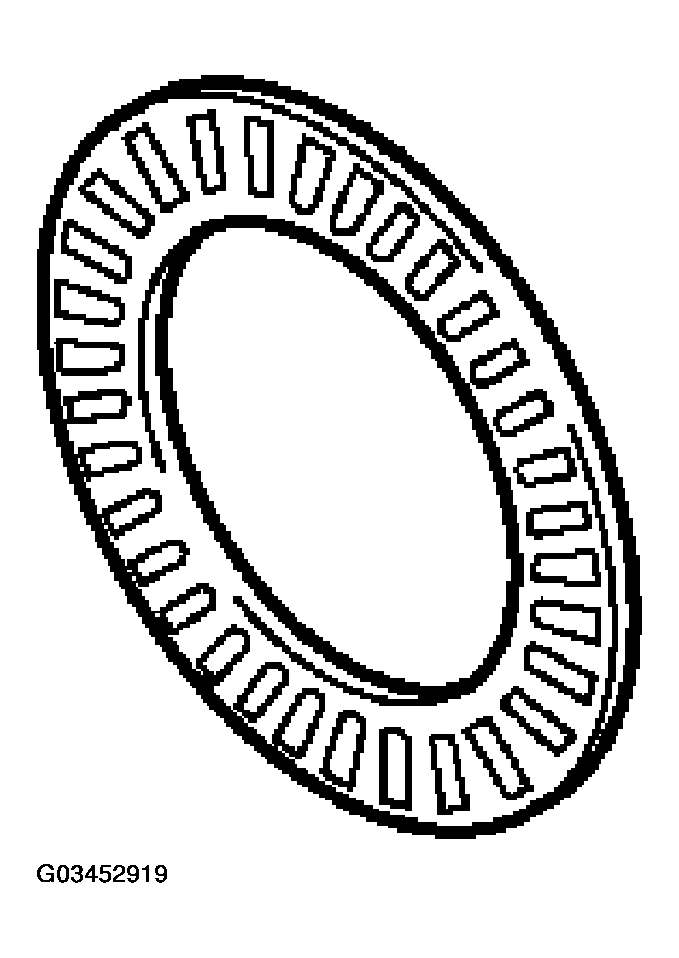

Fig 3: Identifying Needle Roller Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If they are identified, replace the needle roller bearing.
