Input Shaft: Reassembly

  1. INSTALL NEEDLE ROLLER BEARING AND BEARING RACE

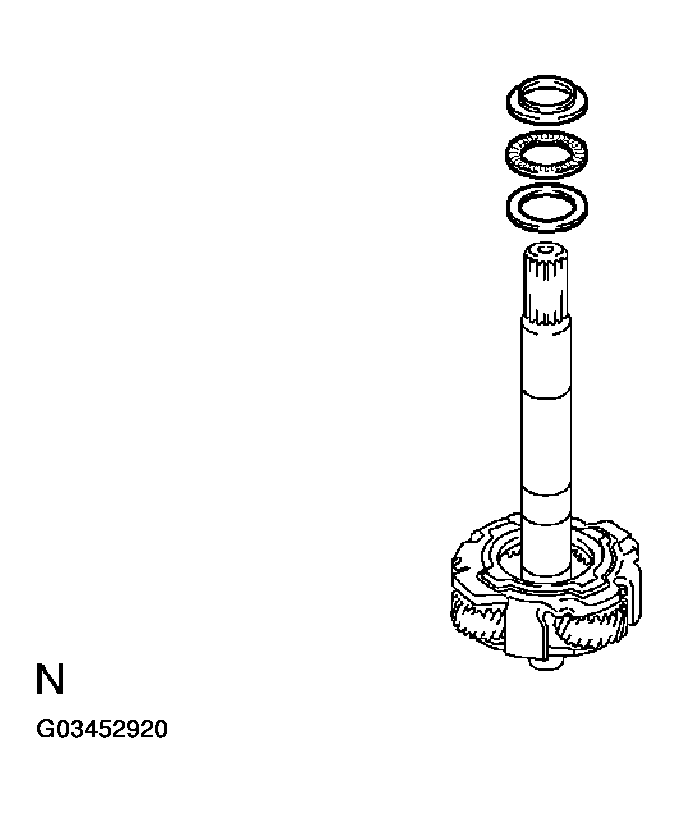

    Fig 1: Installing Needle Roller Bearing And Bearing Race
    G03452920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL PLANETARY SUN GEAR TO INPUT SHAFT

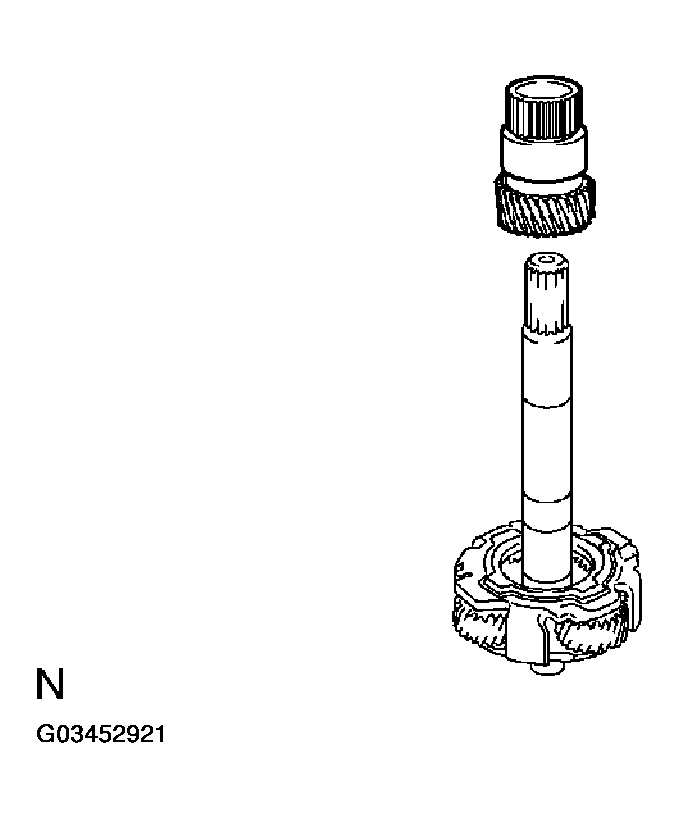

    Fig 2: Installing Planetary Sun Gear To Input Shaft
    G03452921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
