On-Vehicle Repair

REMOVE ENGINE UNDER COVER LH
REMOVE OIL PUMP
1. Remove the plug.
2. Remove the O-ring from the plug.

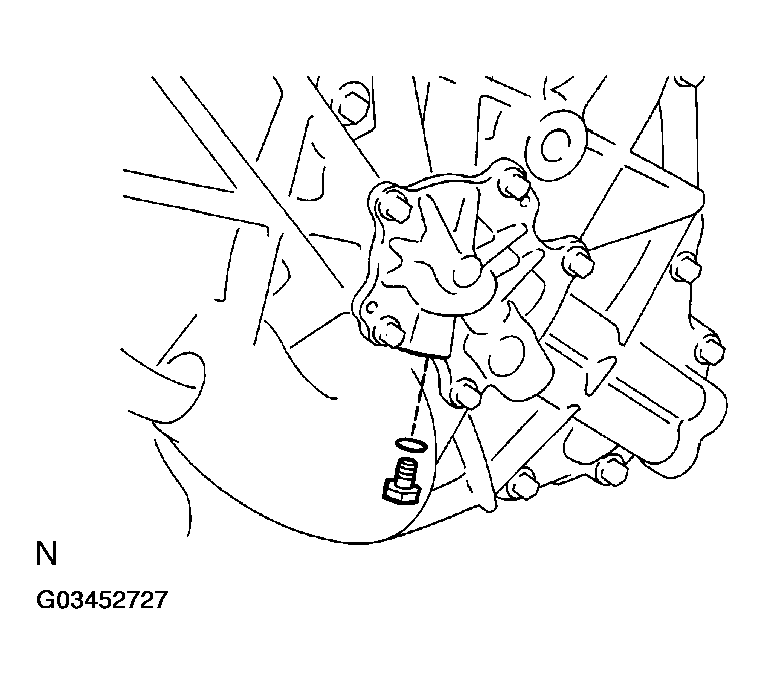

  Fig 1: Removing O-Ring From Plug
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 5 bolts and oil pump cover.

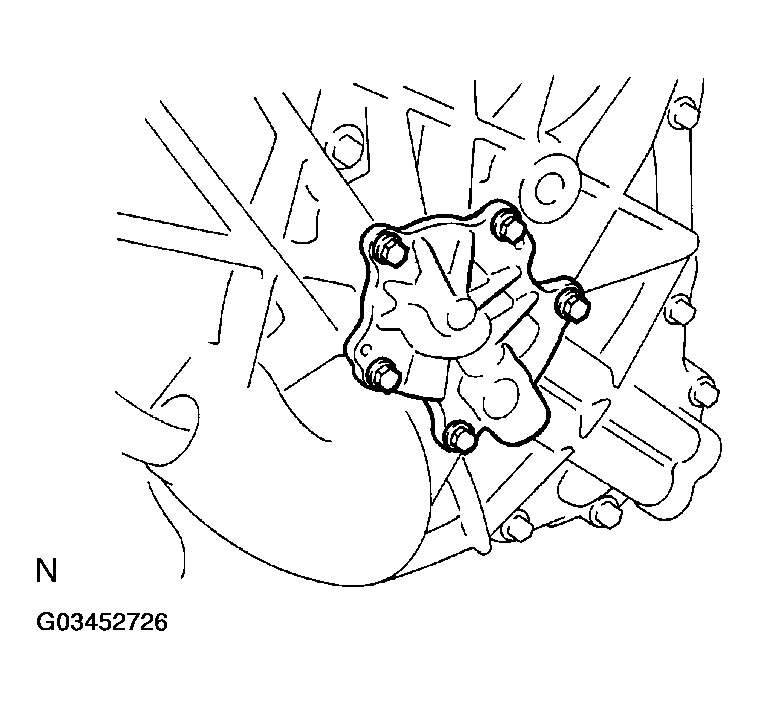

  Fig 2: Removing Oil Pump Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the O-ring.

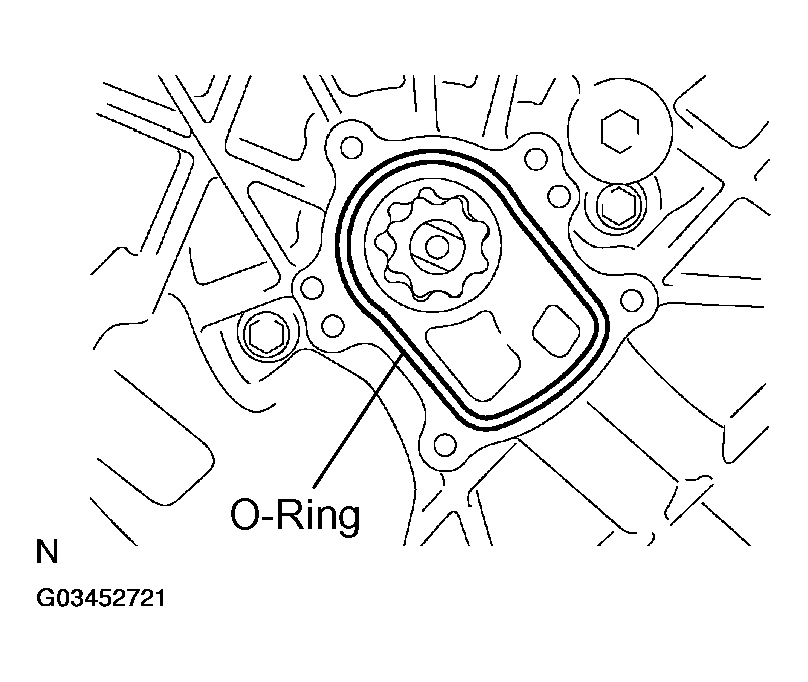

  Fig 3: Removing O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the oil pump driven rotor and drive rotor.

  Fig 4: Removing Oil Pump Driven Rotor And Drive Rotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the oil pump drive shaft.

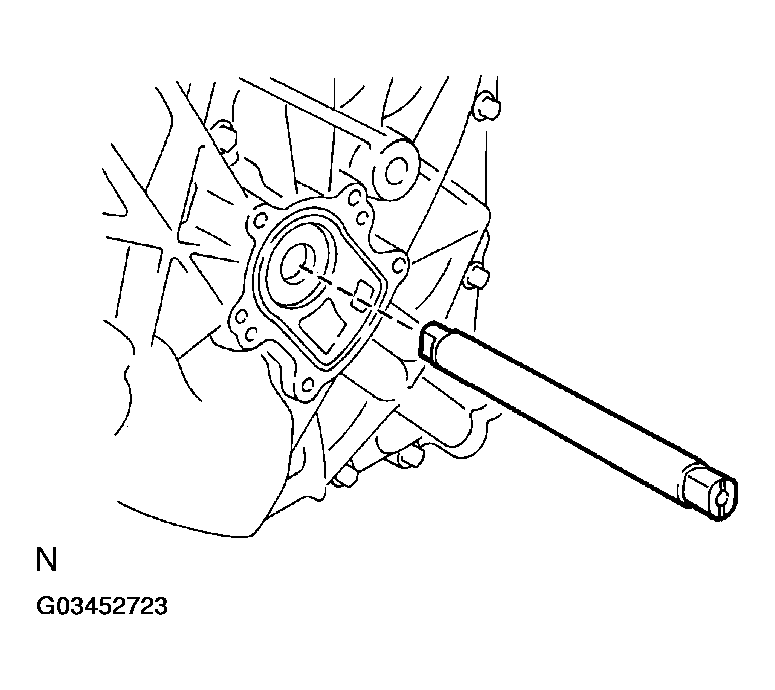

  Fig 5: Removing Oil Pump Drive Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL PUMP
1. Apply ATF to each sliding part.
2. Install the oil pump drive shaft.
3. Install the oil pump driven rotor and drive rotor.

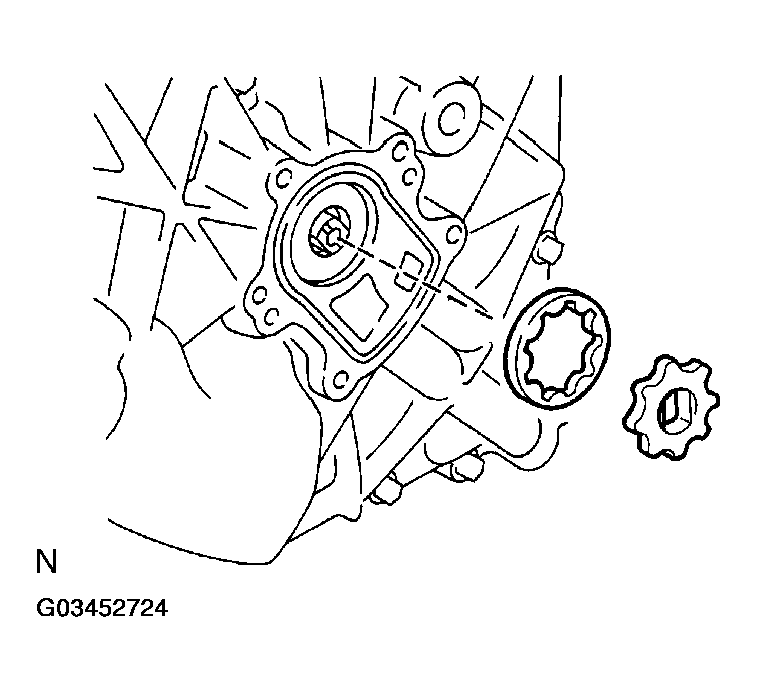

  Fig 6: Installing Oil Pump Driven Rotor And Drive Rotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

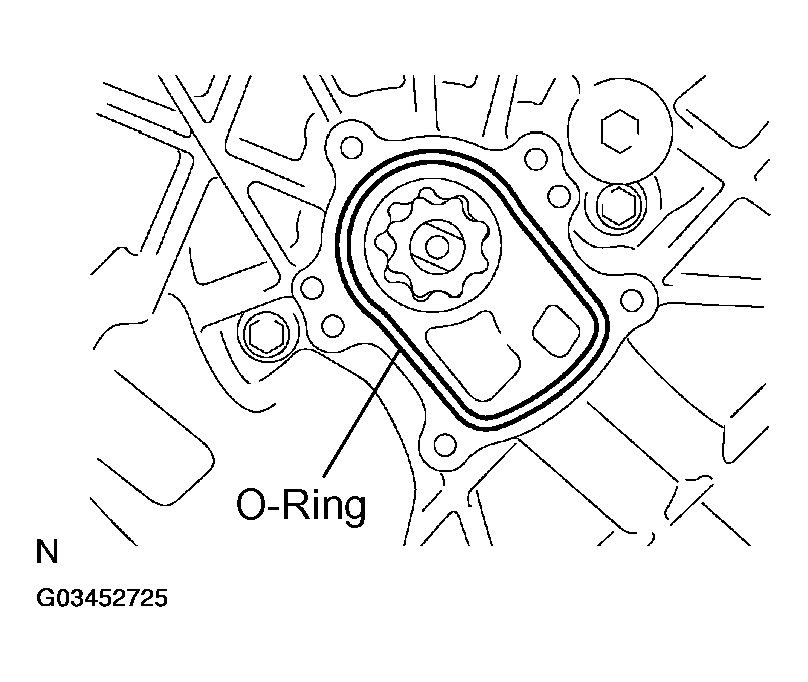

4. Install a new O-ring.

  Fig 7: Installing O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Apply liquid sealer to 2 or 3 threads of the bolt end.
  Sealant Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

  Fig 8: Locating Liquid Sealer Applying Point
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the oil pump cover with the 5 bolts.
  Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
7. Install a new O-ring and the plug.

  Fig 9: Installing O-Ring And Plug
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 7.35 N.m (75 kgf.cm, 65 in..lbf)
INSTALL ENGINE UNDER COVER LH
