Shift Lock System: Inspection

1. INSPECT SHIFT POSITION SENSOR
   1. Remove the steering column upper cover and lower cover.
   2. Disconnect the shift position sensor connector.
   3. Check continuity between terminals shown in SHIFT POSITION SENSOR TERMINALS CONTINUITY SPECIFICATIONS  when the shift lever is moved to each position

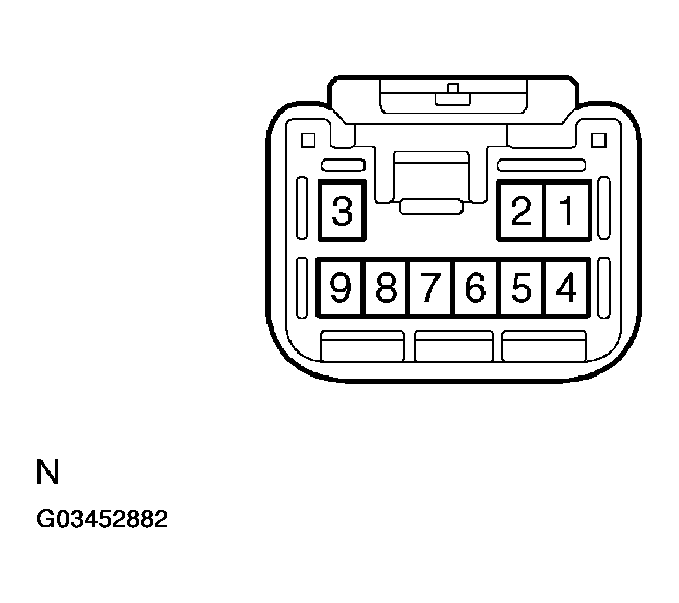

      Fig 1: Identifying Shift Position Sensor Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      SHIFT POSITION SENSOR TERMINALS CONTINUITY SPECIFICATIONS



      Shift Position	Terminal No. to continuity	Terminal No. to continuity
      P	1-2	3-8-9
      R	1-4	3-8-9
      N	1-5	3-8-9
      D	1-6	3-8-9
      B	1-7	3-8-9

   4. Connect the shift position sensor connector.
   5. Install the steering column upper cover and lower cover.
2. INSPECT SHIFT LOCK CONTROL ECU

   Using a voltmeter, measure the voltage at each terminal.

   NOTE: Do not disconnect the ECU connector.

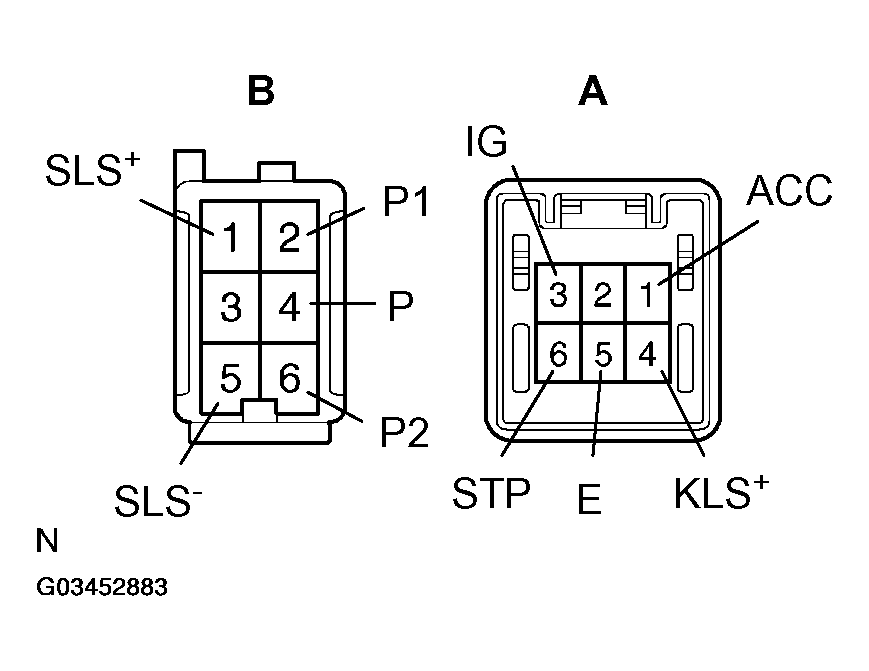

   Fig 2: Identifying Shift Lock Control ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   SHIFT LOCK CONTROL ECU CONNECTOR TERMINALS VOLTAGE SPECIFICATIONS



   Terminal	Measuring Condition	Voltage (V)
   A, 1 - A, 5 (ACC - E)	Ignition switch ACC	10 - 14
   A, 3 - A, 5 (IG - E)	Ignition switch ON	10 - 14
   A, 6 - A, 5 (STP - E)	Depressing brake pedal	10 - 14
   A, 4 - A, 5 (KLS+ - E)	5. Ignition switch ACC and P position	0
   	6. Ignition switch ACC and except P position	7.5 - 11
   	7. Ignition switch ACC and except P position (After approx. 1 second)	6 - 9.5
   B, 1 - B, 5 (SLS+ - SLS- )	1. Ignition switch ON and P position	0
   	2. Depress brake pedal	8 - 13.5
   	3. Except P position	0
   B, 2 - B, 4 (P1 - P)	1. Ignition switch ON, P position and depress brake pedal	0
   	2. Shift except P position under conditions above	9 - 13.5
   B, 6 - B, 4 (P2 - P)	1. Ignition switch ACC, P position	9 - 13.5
   	2. Shift except P position under conditions above	0

3. INSPECT SHIFT LOCK SOLENOID
   1. Disconnect the solenoid connector.
   2. Using an ohmmeter, measure the resistance between terminals.

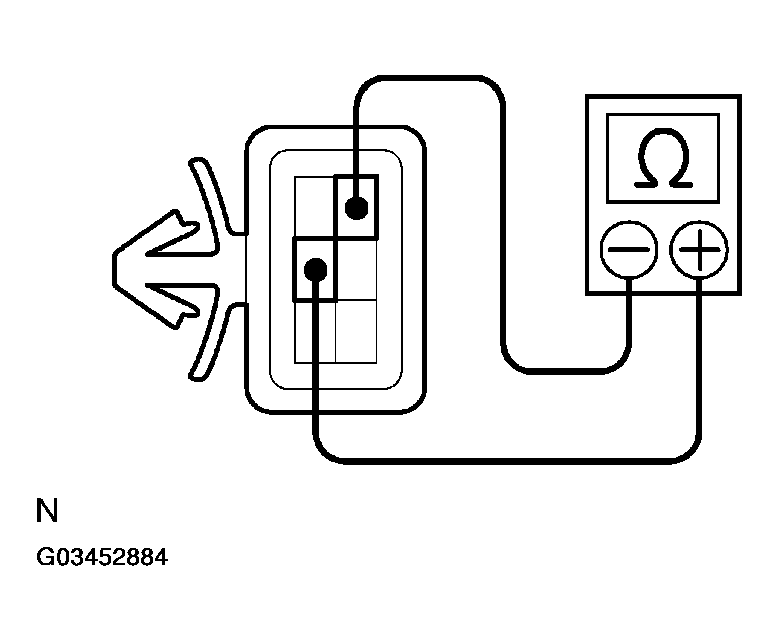

      Fig 3: Measuring Resistance Between Shift Lock Solenoid Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance: 29 - 35 Ω

      If the resistance value is not as specified, replace the solenoid.

   3. Apply battery positive voltage between terminals. Check the operation.

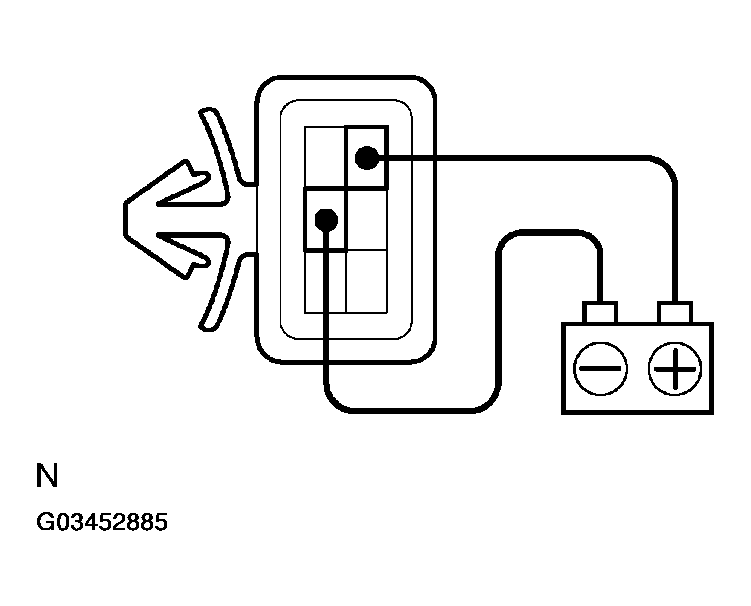

      Fig 4: Inspecting Shift Lock Solenoid Operation

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the solenoid does not operate, replace the solenoid noise can be heard from the solenoid.

4. INSPECT KEY INTERLOCK SOLENOID
   1. Disconnect the solenoid connector.
   2. Using an ohmmeter, measure the resistance between terminals 3 and 4.

      Standard resistance: 12.5 - 16.5 Ω

      If the resistance value is not as specified, replace the solenoid.

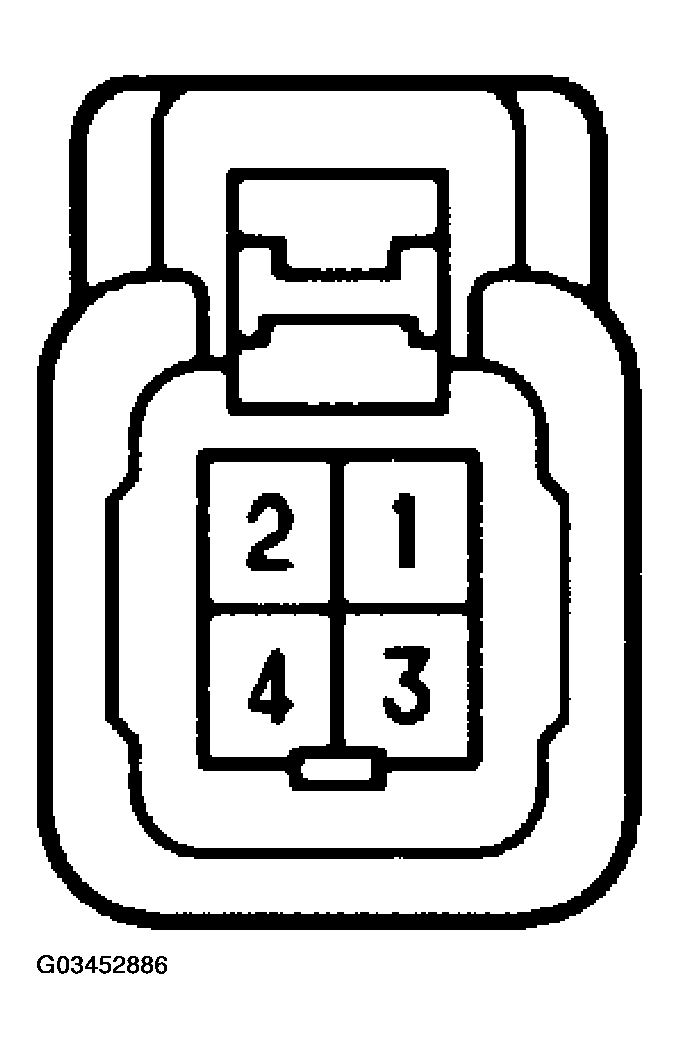

      Fig 5: Identifying Key Interlock Solenoid Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Apply battery positive voltage between the terminals 3 and 4. Check that an operation sound can be heard from the solenoid.

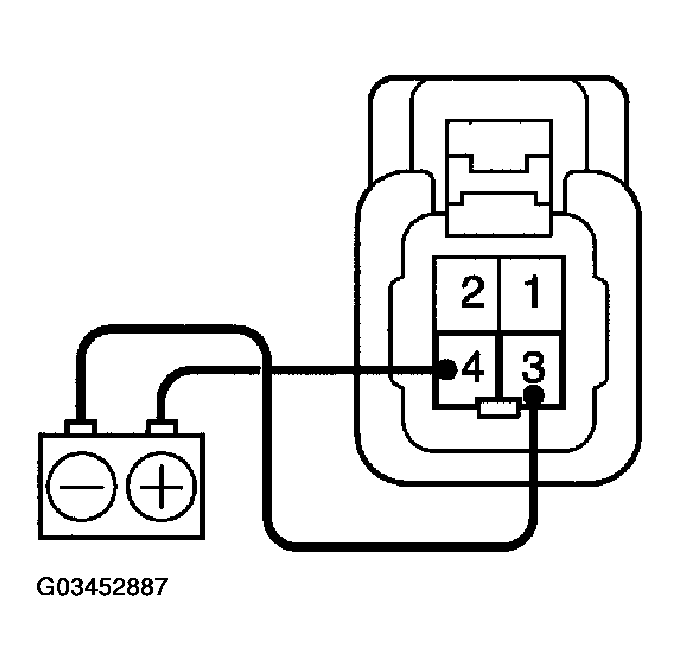

   Fig 6: Inspecting Key Interlock Solenoid Operation
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the solenoid does not operate, replace the solenoid.

5. INSPECT SHIFT LOCK CONTROL SWITCH

Check that there is continuity between terminals.

Fig 7: Identifying Shift Lock Control Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not identified, replace the switch.
