Shift Lock System: Location

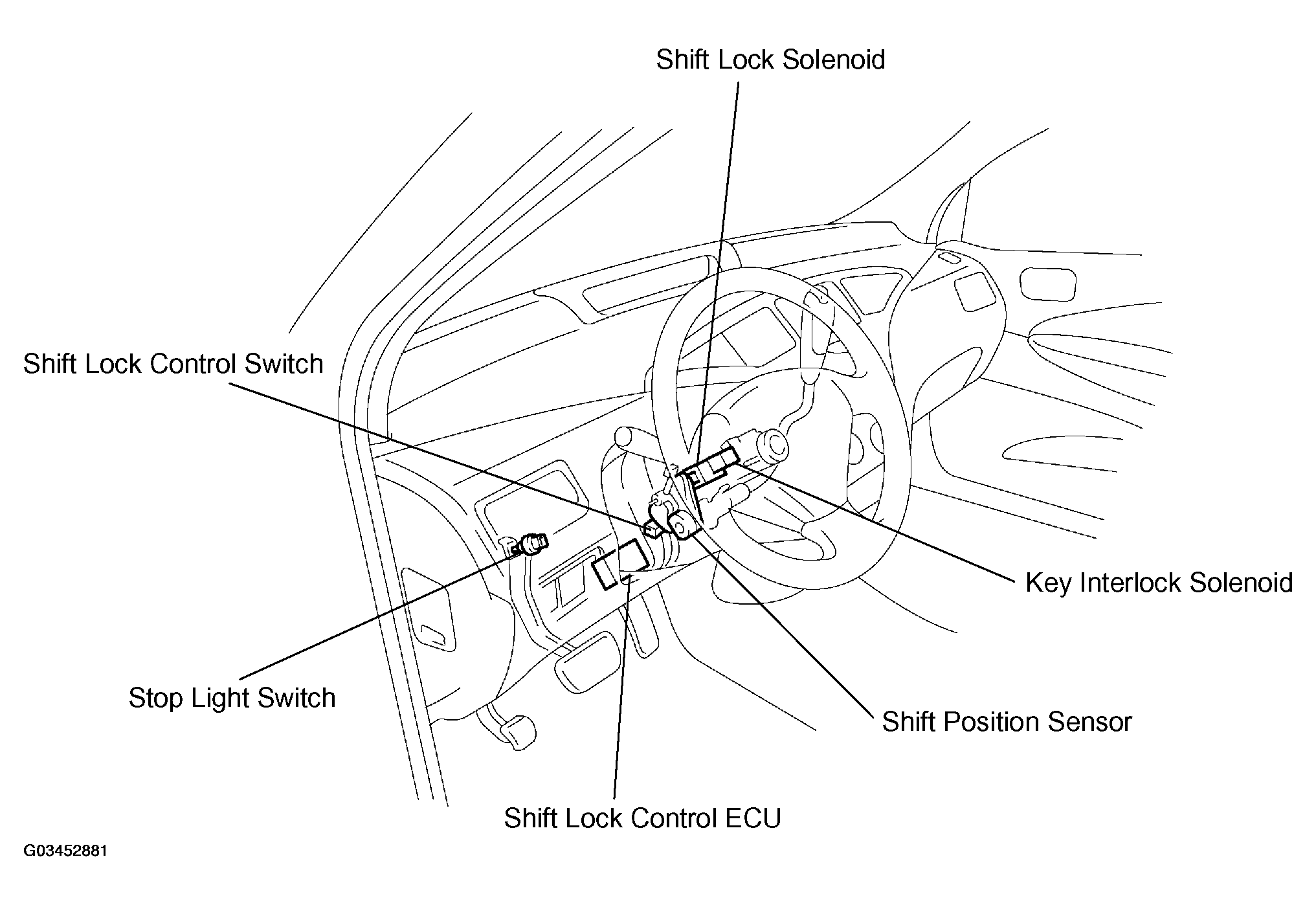

Fig 1: Locating Shift Lock System Components

G03452881

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
