Component Locations

For body control system component locations, see Fig 1 and Fig 2 .

Fig 1: Locating Body Control System Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

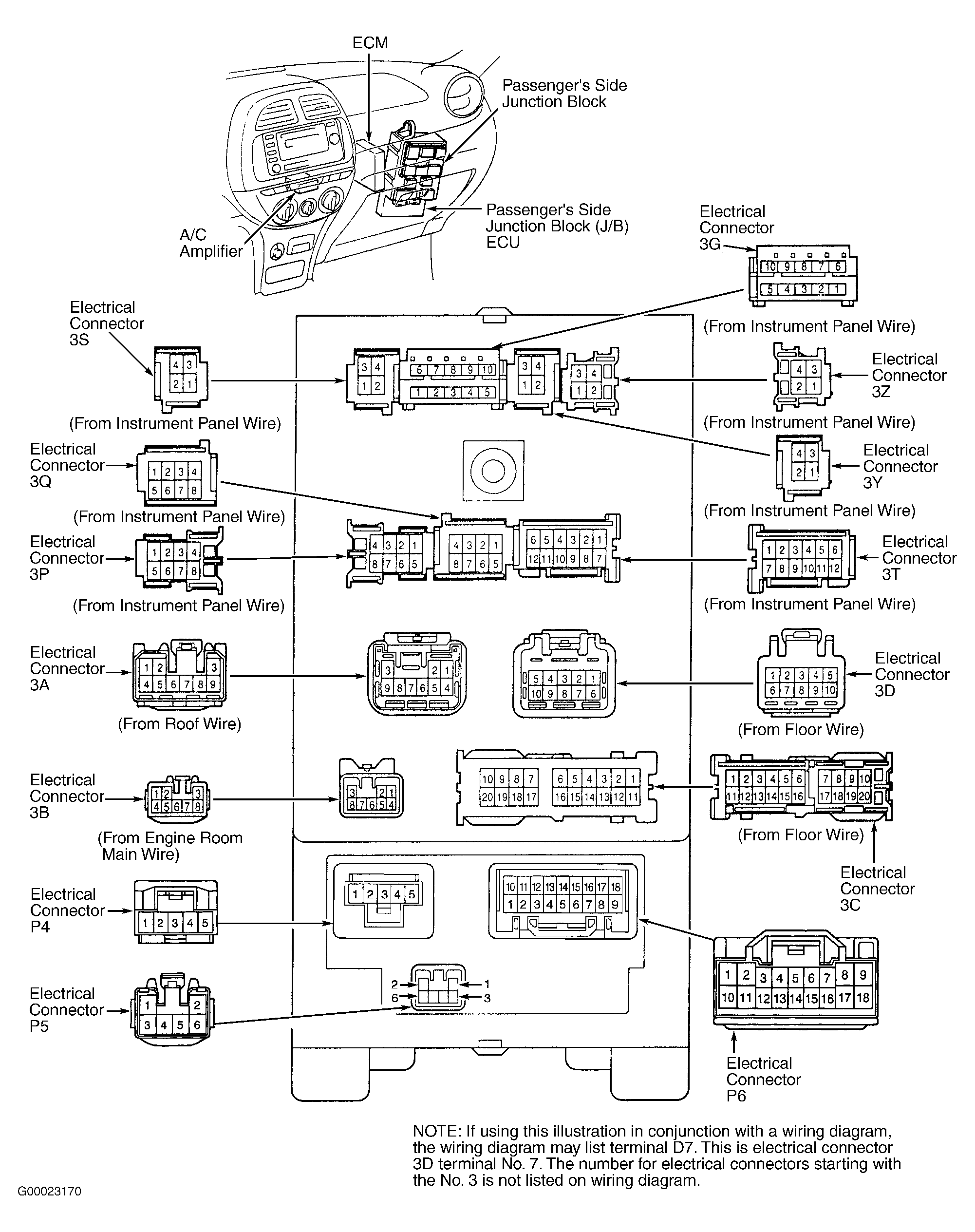

Fig 2: Locating Passenger's Side Junction Block Electronic Control Unit & Identifying Electrical Terminals & Electrical Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
