Power Door Lock Control Switch

NOTE: Power door lock control switch may also be referred to as door lock control switch.

On driver's side front door with power windows, power door lock control switch is incorporated into the power window master switch. See Fig 1. On driver's side front door without power windows and passenger's side front door, power door lock control switch is located on the door panel and is a separate switch.
On all applications, disconnect electrical connector from power door lock control switch. Note power door lock control switch electrical terminal identification. See Fig 1.

Using ohmmeter, check that continuity and no continuity is as specified between indicated power door lock control switch electrical terminals in relation to power door lock control switch position. See POWER DOOR LOCK CONTROL SWITCH CONTINUITY table. Replace power door lock control switch if defective.

POWER DOOR LOCK CONTROL SWITCH CONTINUITY

Application & Switch Position

Switch Terminals No.

Specification

Driver's Side Front Door With Power Windows

LOCK

1, 3 & 5

Continuity

OFF

⁽¹⁾

UNLOCK

1, 3 & 8

Continuity

Driver's Side Front Door Without Power Windows & Passenger's Side Front Door

LOCK

3 & 6

Continuity

OFF

⁽¹⁾

UNLOCK

3 & 5

Continuity

⁽¹⁾	There should be no continuity between any terminals.

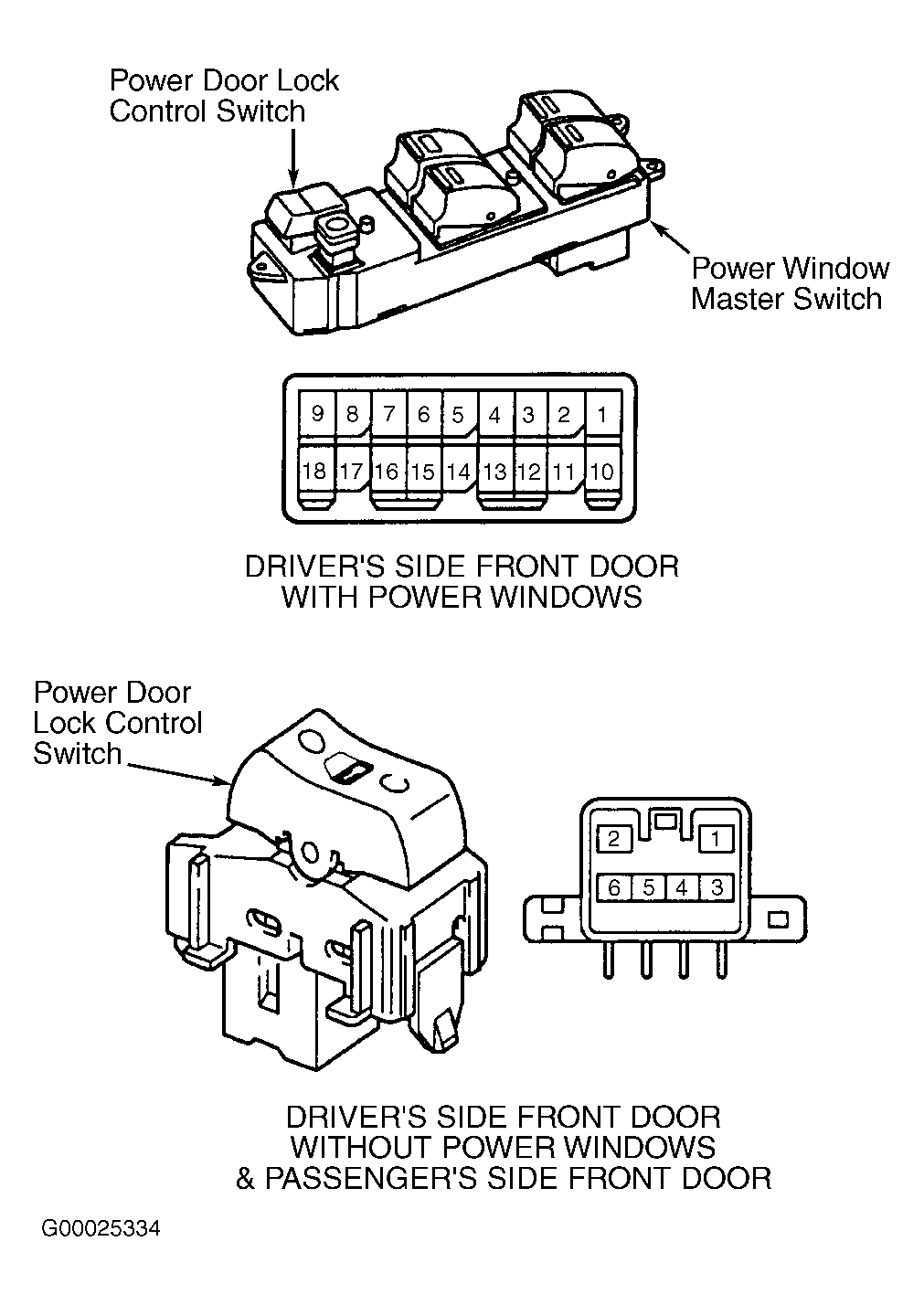

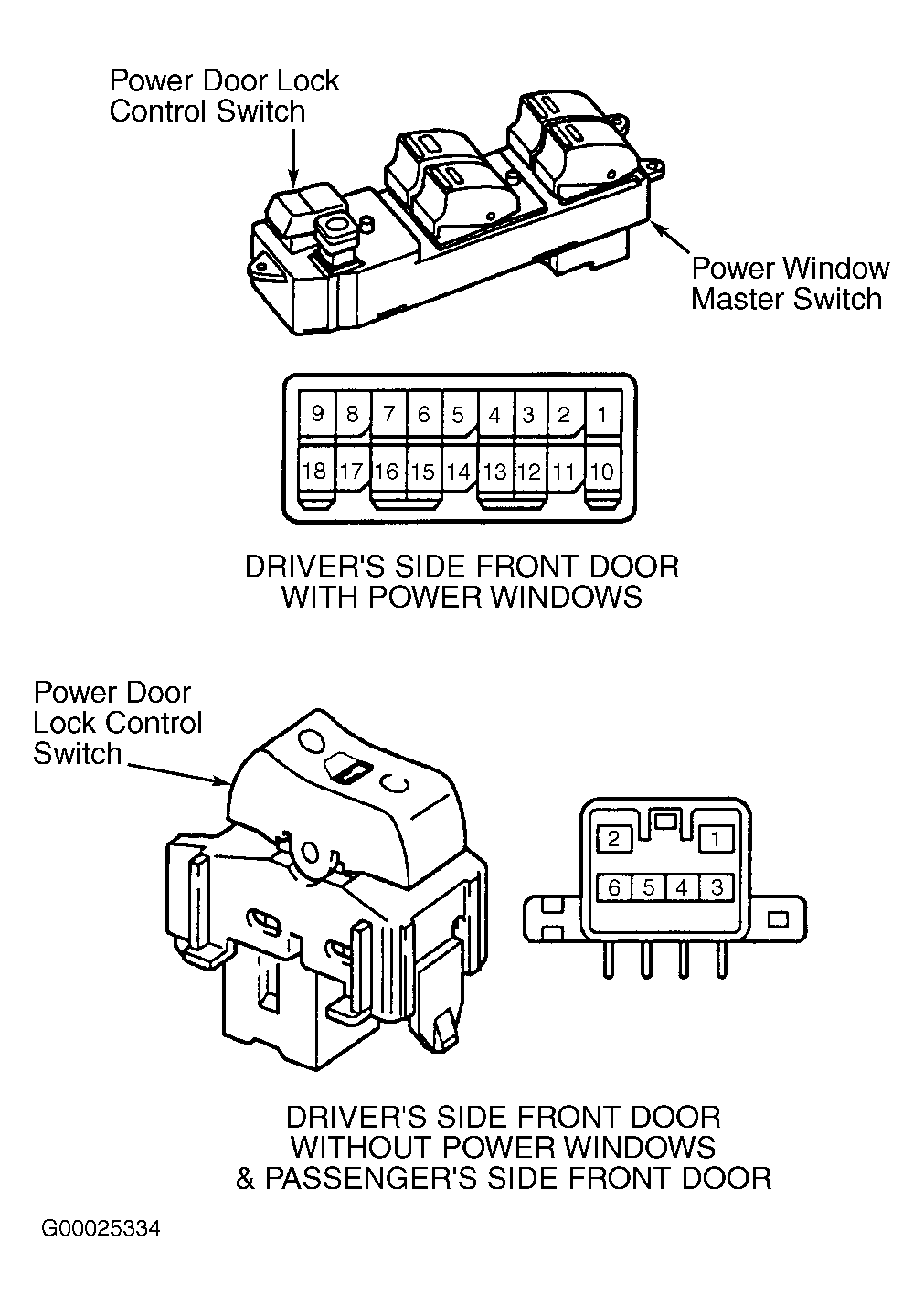

Fig 1: Locating Power Door Lock Control Switch On Power Window Master Switch & Identifying Power Door Lock Control Switch Electrical Terminals
