Deceleration Sensor: Components

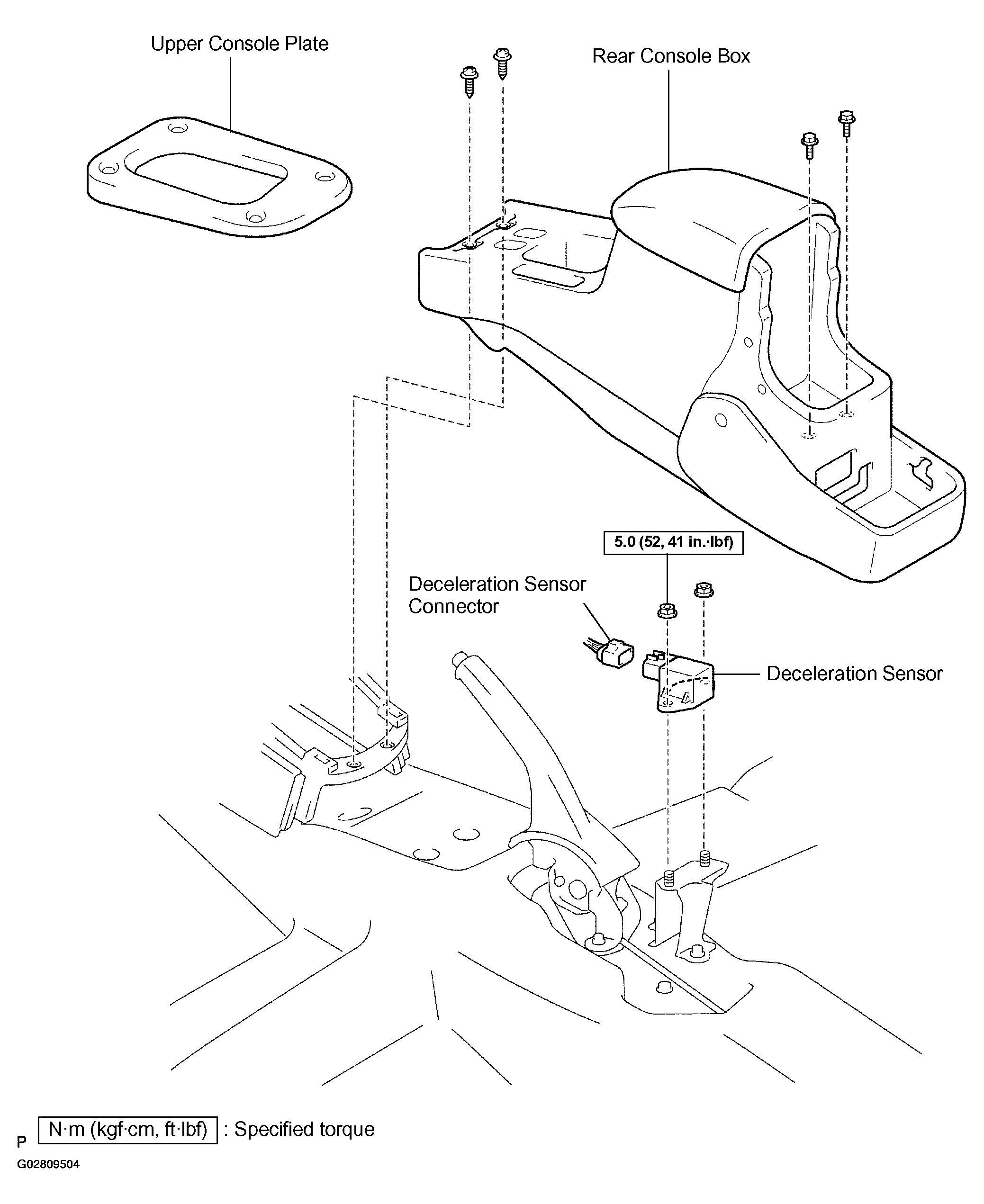

Fig 1: Identifying Components For Deceleration Sensor Removal
G02809504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
