Remove Deceleration Sensor

  1. Remove the rear console box and upper console plate.
  2. Disconnect the sensor connector.
  3. Remove the 2 nuts and deceleration sensor.

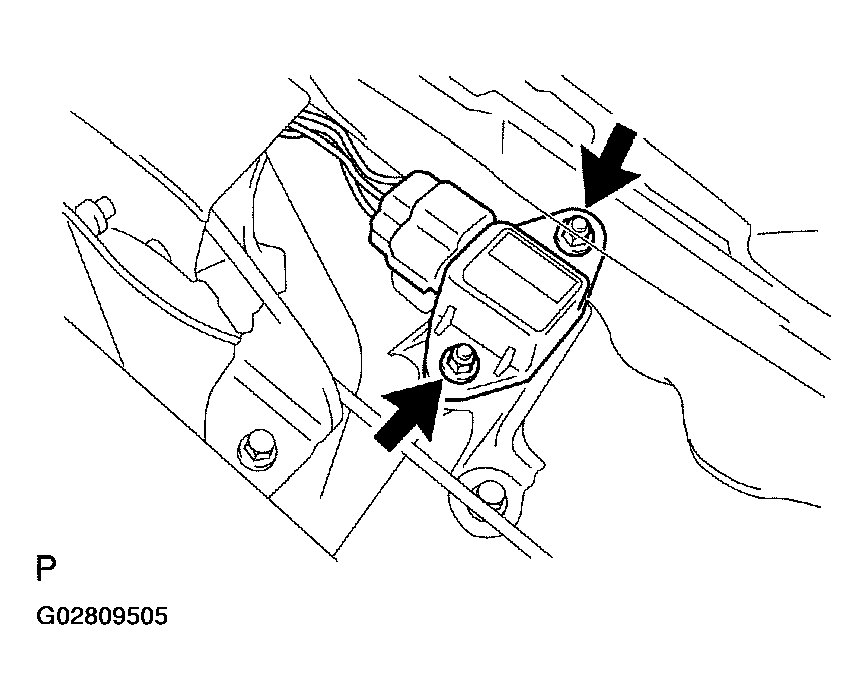

    Fig 1: Locating 2 Nuts And Deceleration Sensor For Removal
    G02809505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 5.0 N.m (52 kgf.cm, 41 in..lbf)
