Front Interior Light
- Front interior light is located on the headliner. See Figure. Remove front interior light and disconnect electrical connector.

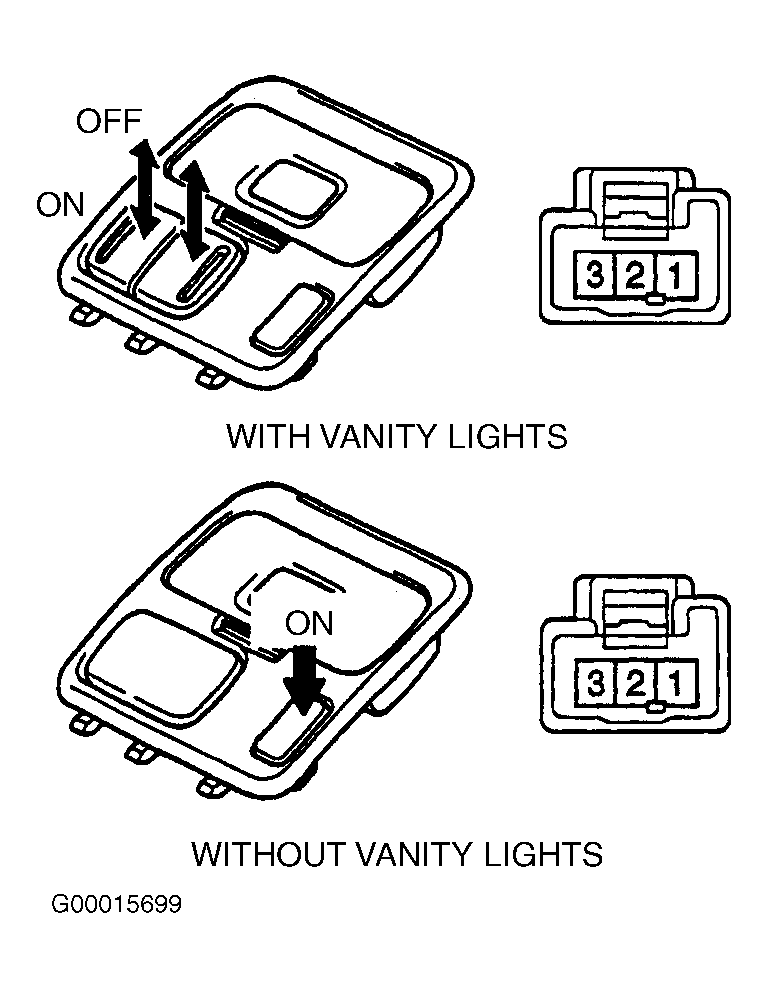

- Using ohmmeter, check that continuity exists between terminals No. 1 and 3 with switch on front interior light in ON position. See Fig 1. Check that continuity exists between terminals No. 2 and 3 with switch on front interior light in DOOR position. See Fig 1. Replace switch for front interior light if continuity is not as specified.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
