Ignition Switch And Key Unlock Warning Switch: Inspection

  1. Inspect Ignition Switch Continuity  :

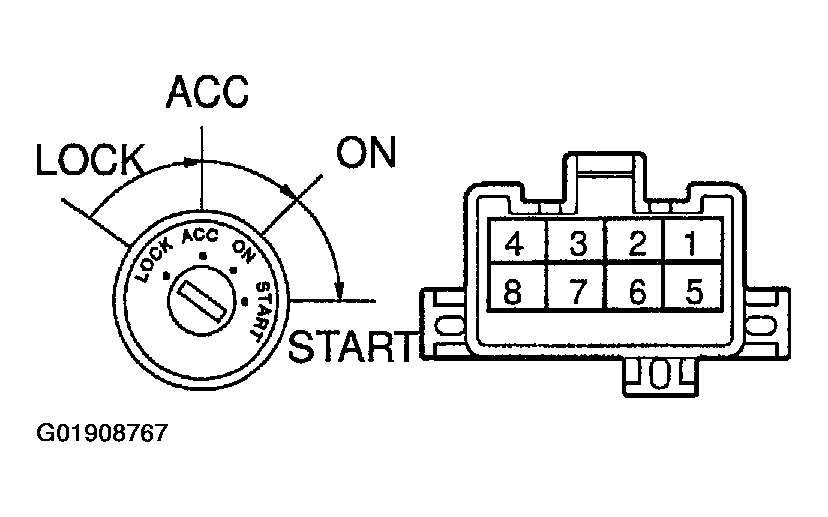

    Fig 1: Identifying Key Positions & Locating Ignition Switch Terminals
    G01908767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

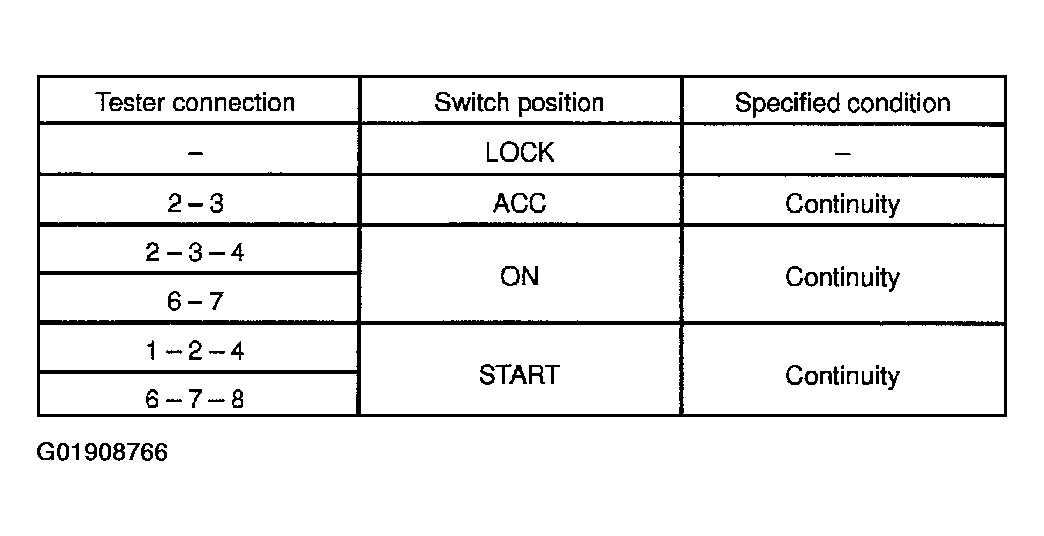

    Fig 2: Key Position Specifications Chart
    G01908766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the continuity is not as specified, replace the switch.

  2. Inspect Key Unlock Warning Switch Continuity  :

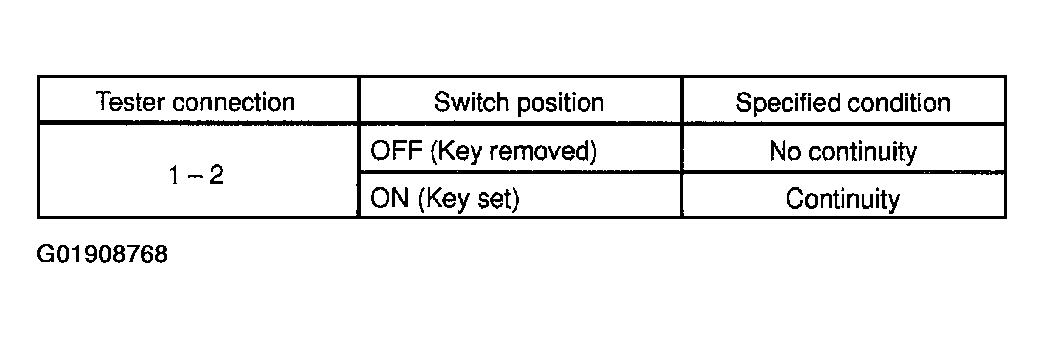

    Fig 3: Key Unlock Warning Switch Continuity Specifications Chart
    G01908768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

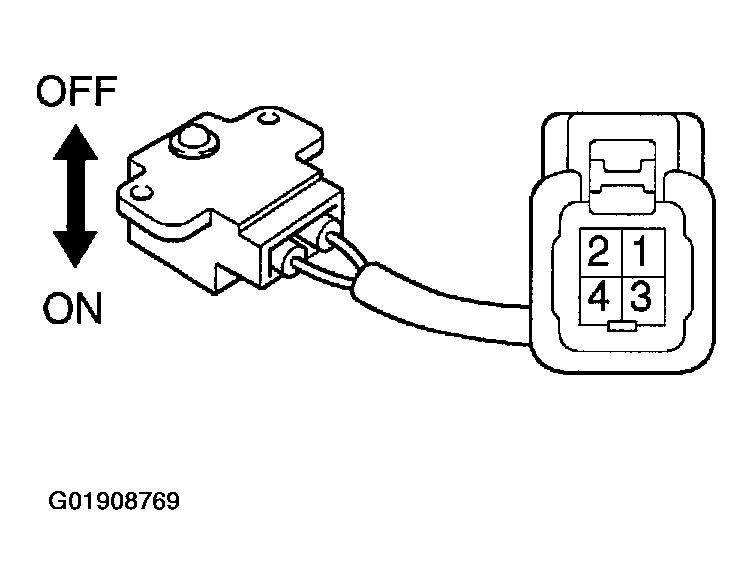

    Fig 4: Identifying Key Unlock Warning Switch Terminals
    G01908769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the continuity is not as specified, replace the switch.
