Home >> Toyota >> 2002 >> 4Runner Base >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System >> Back Door Power Window Control System >> Location
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Back Door Power Window Control System: Location

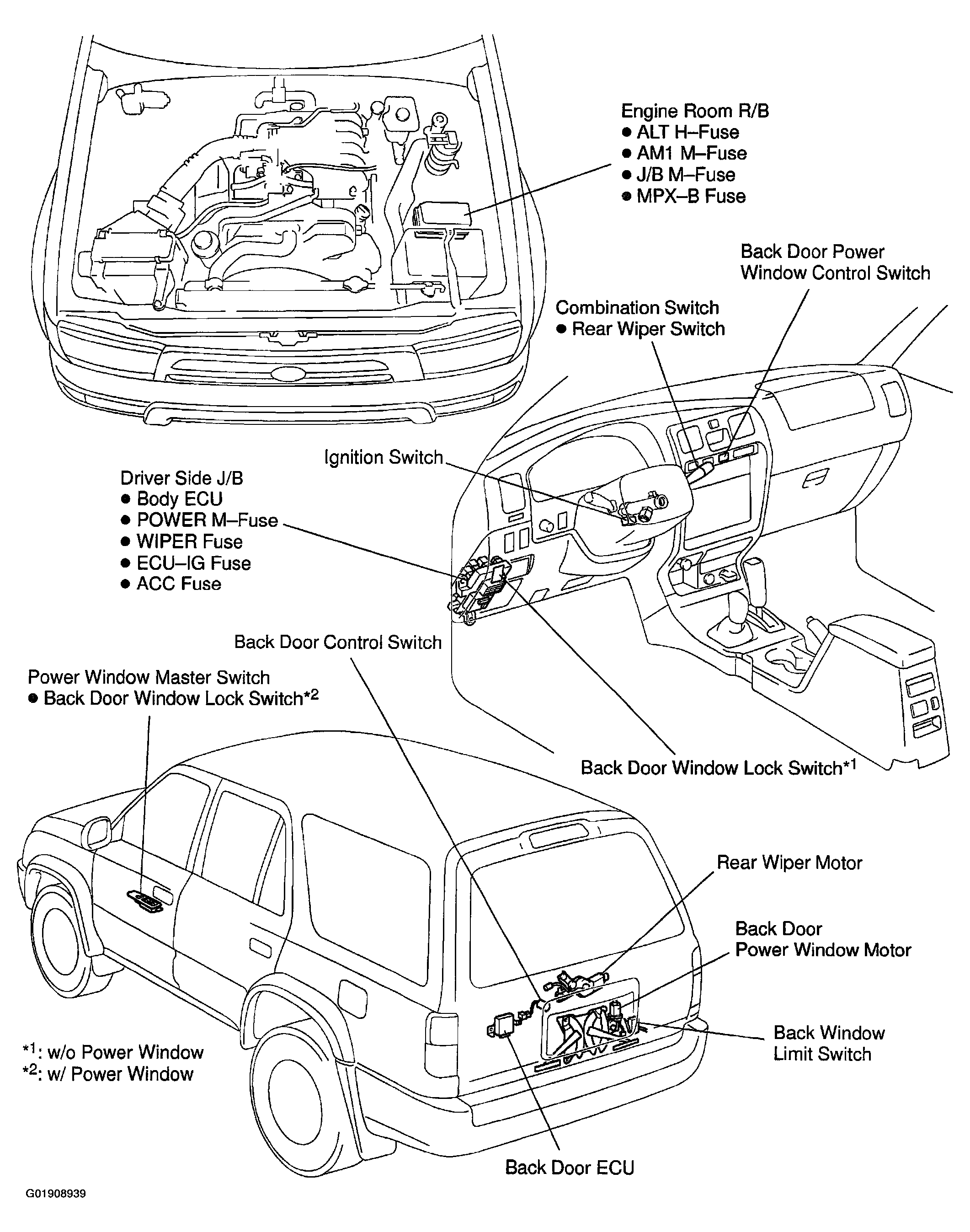

Fig 1: Locating Back Door Power Window Control System Components
G01908939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
