Pin Voltage Test
For pin voltages of ECU see
Fig 1
-
Fig 3
.

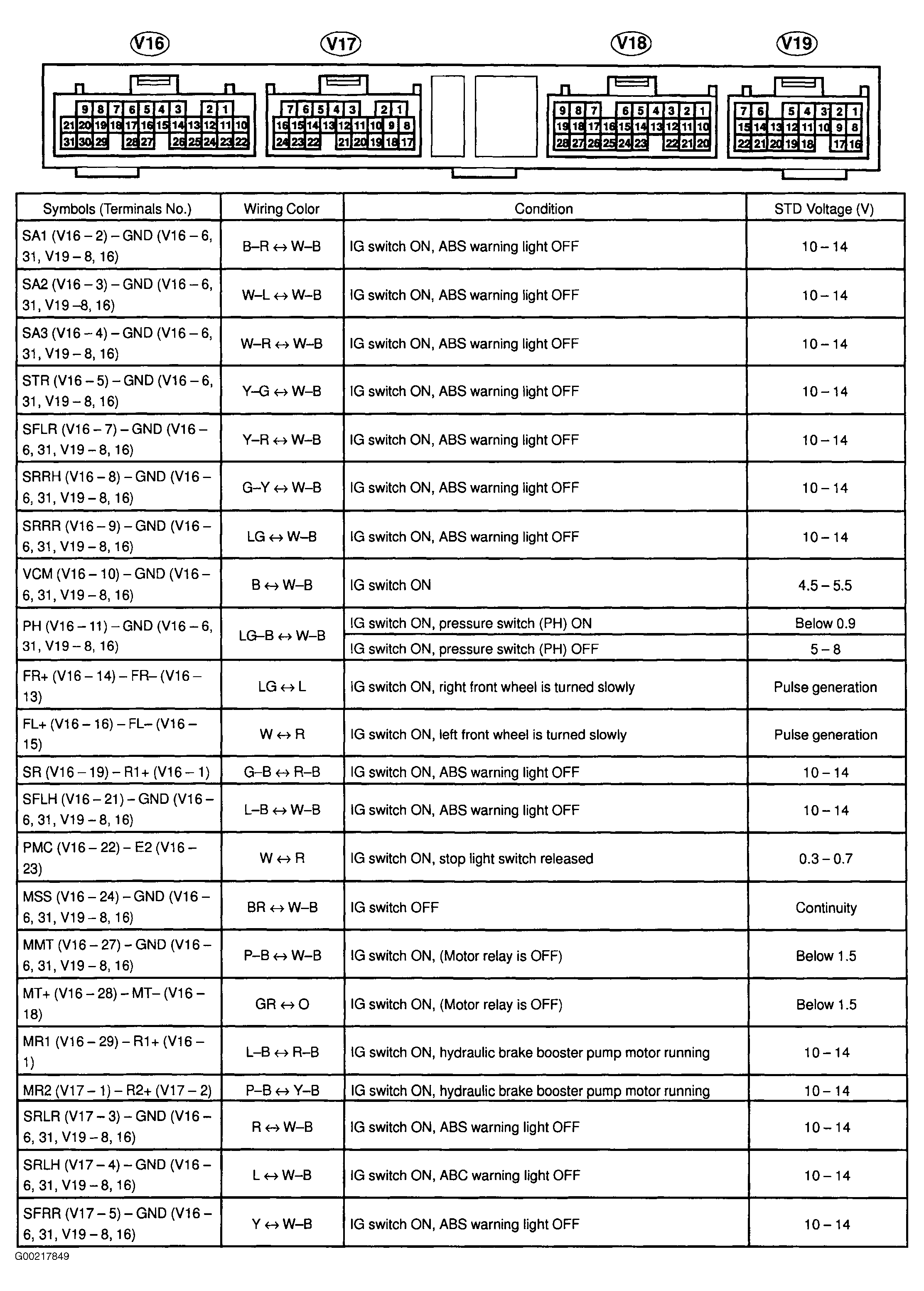

Fig 1: 4Runner ABS ECU Pin Voltage Chart (1 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

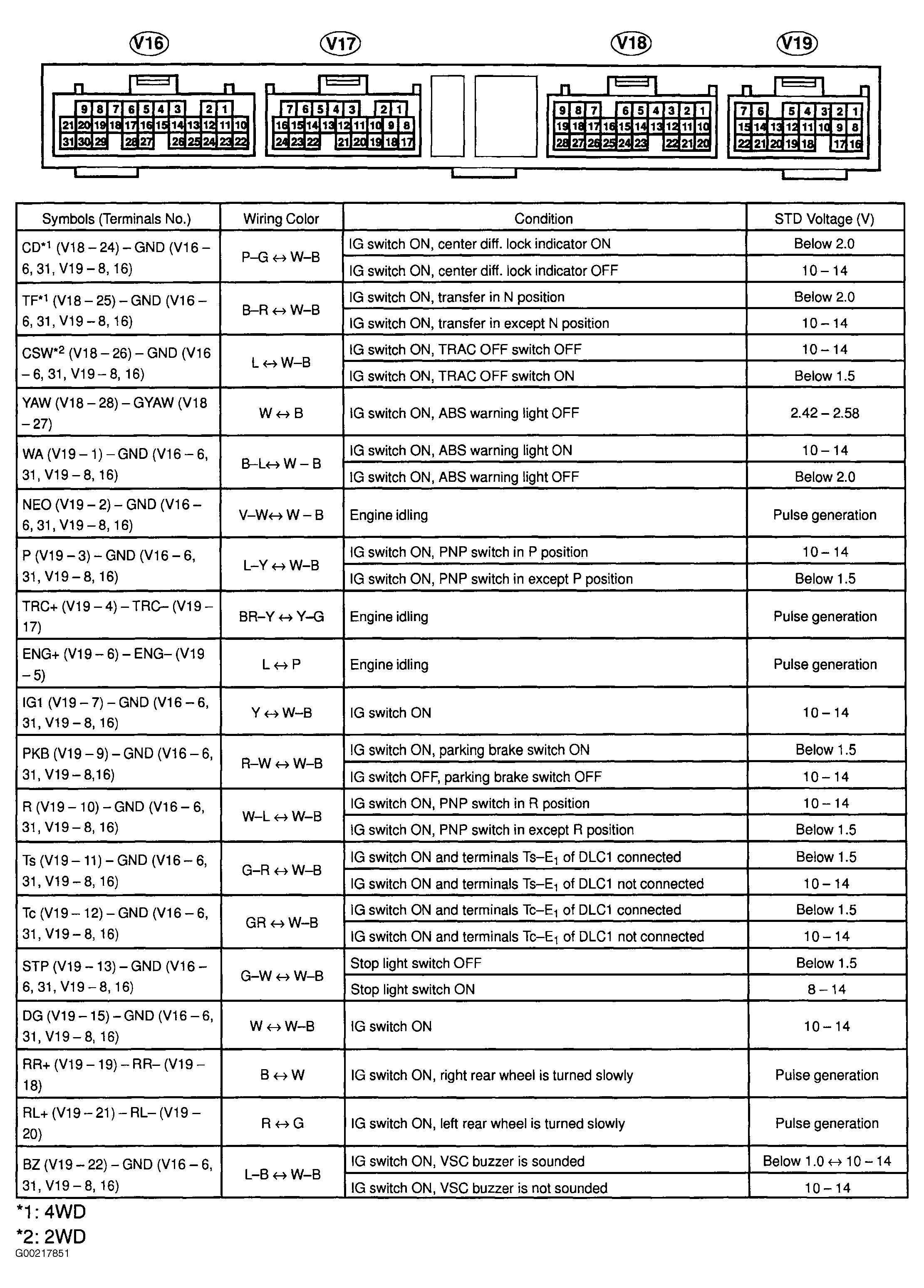

Fig 2: 4Runner ABS ECU Pin Voltage Chart (2 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

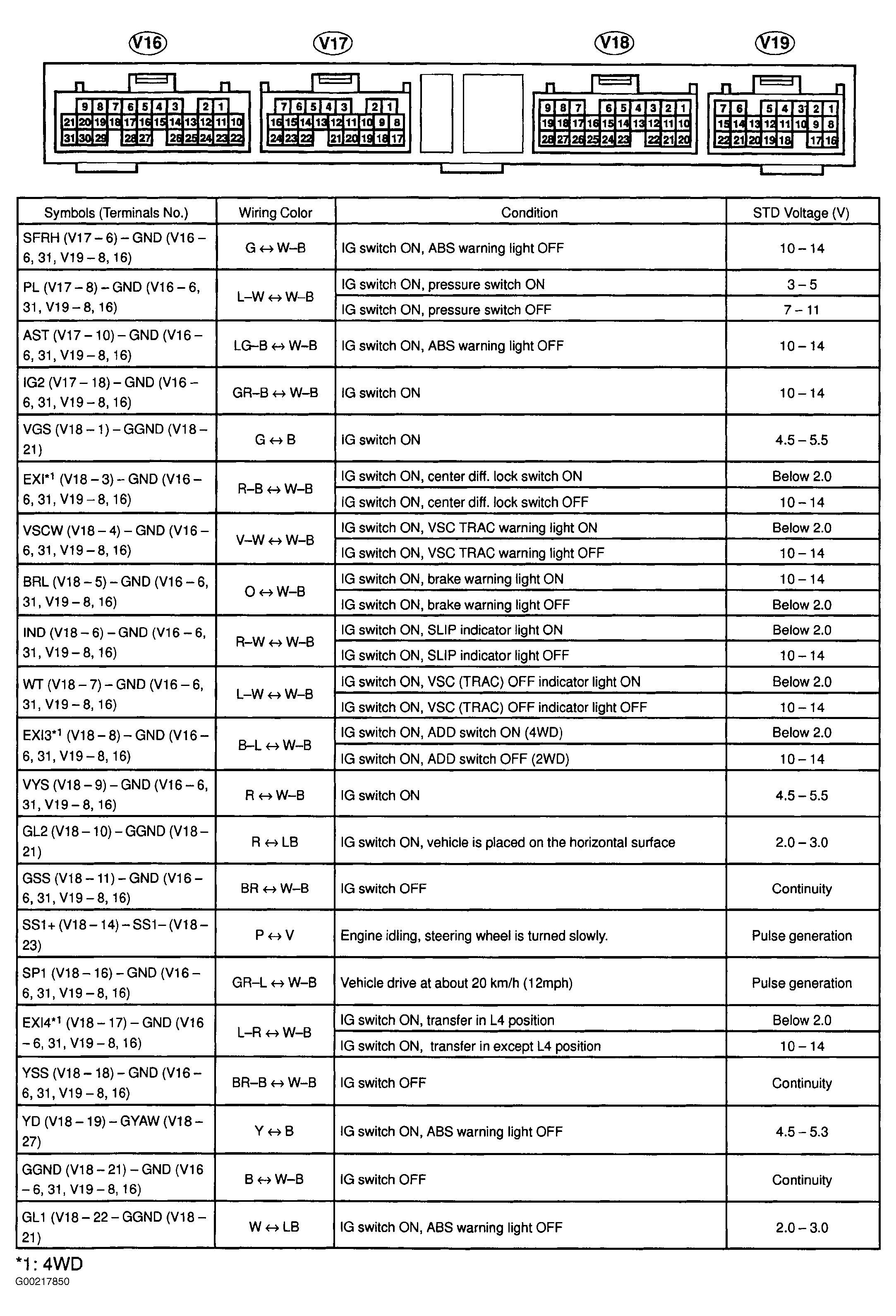

Fig 3: 4Runner ABS ECU Pin Voltage Chart (3 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
