Testing Procedure

For Wiring Diagram, seeFig 1. For testing procedure see Fig 2 and Fig 3 .

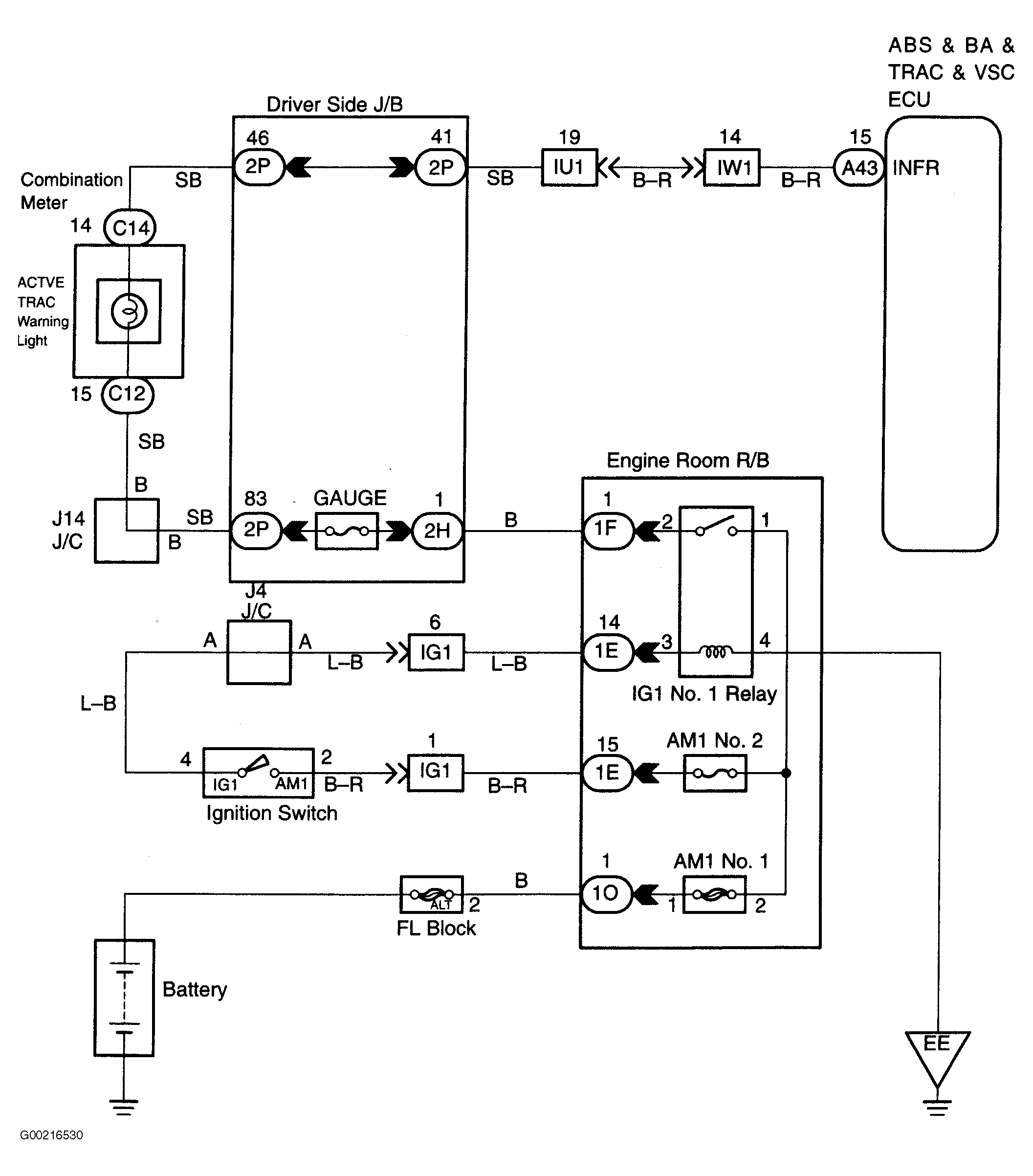

Fig 1: ACTIVE TRAC Indicator Light Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

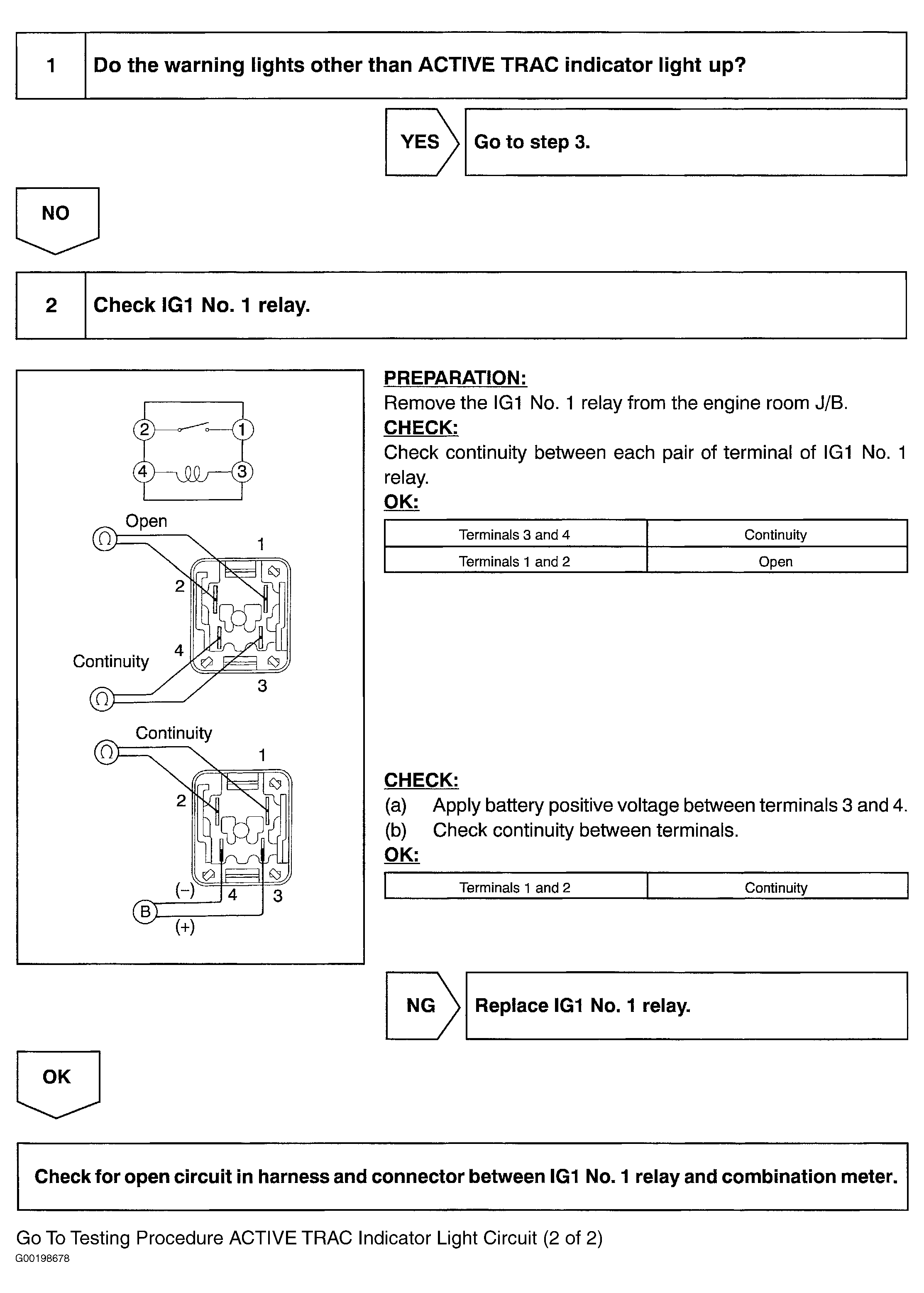

Fig 2: Testing Procedure ACTIVE TRAC Indicator Light Circuit (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

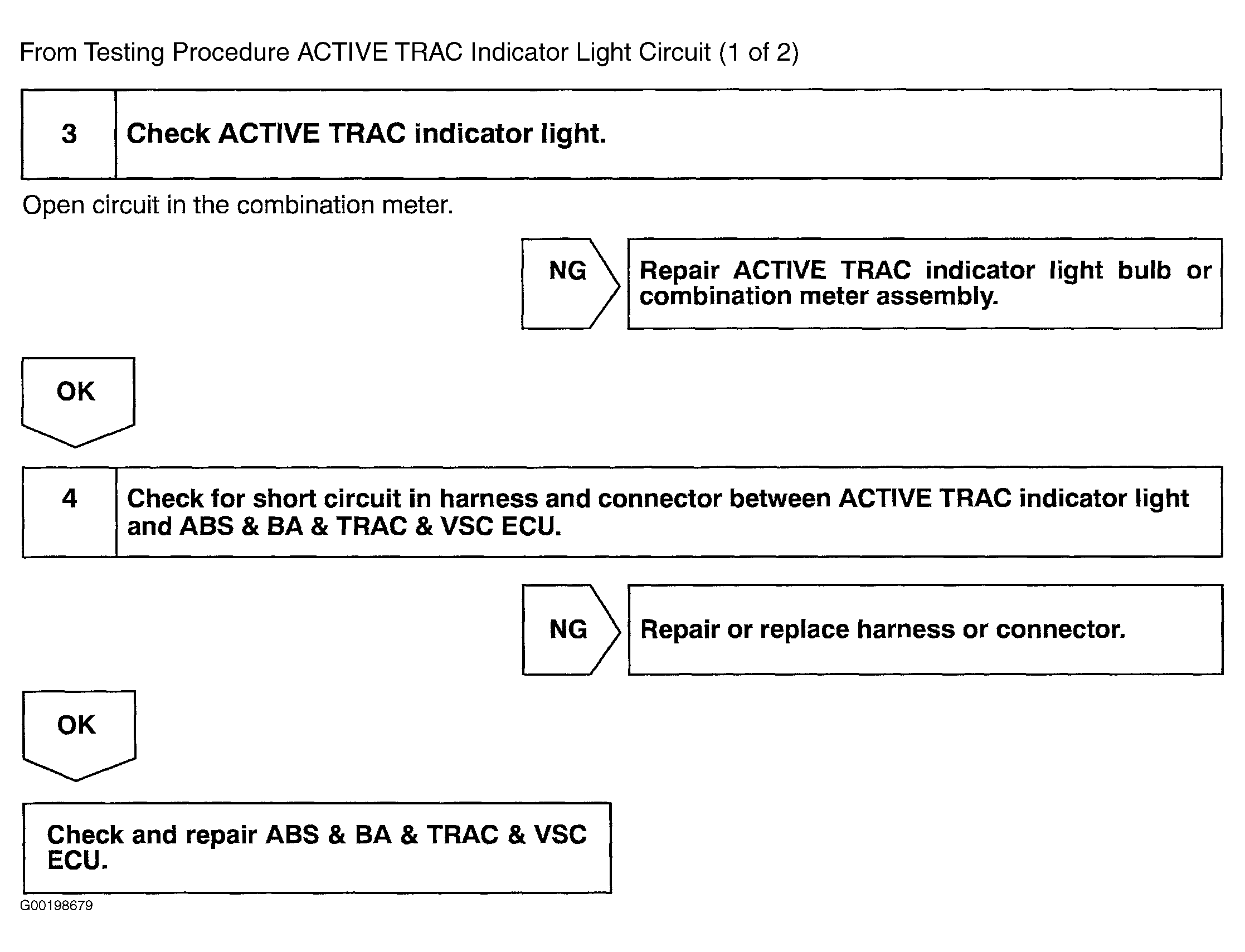

Fig 3: Testing Procedure ACTIVE TRAC Indicator Light Circuit (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
