Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Center J/B | Behind left side of dash, to right of steering column. See Figure. |
| Driver Side J/B | On lower left side of dash. See Figure. |

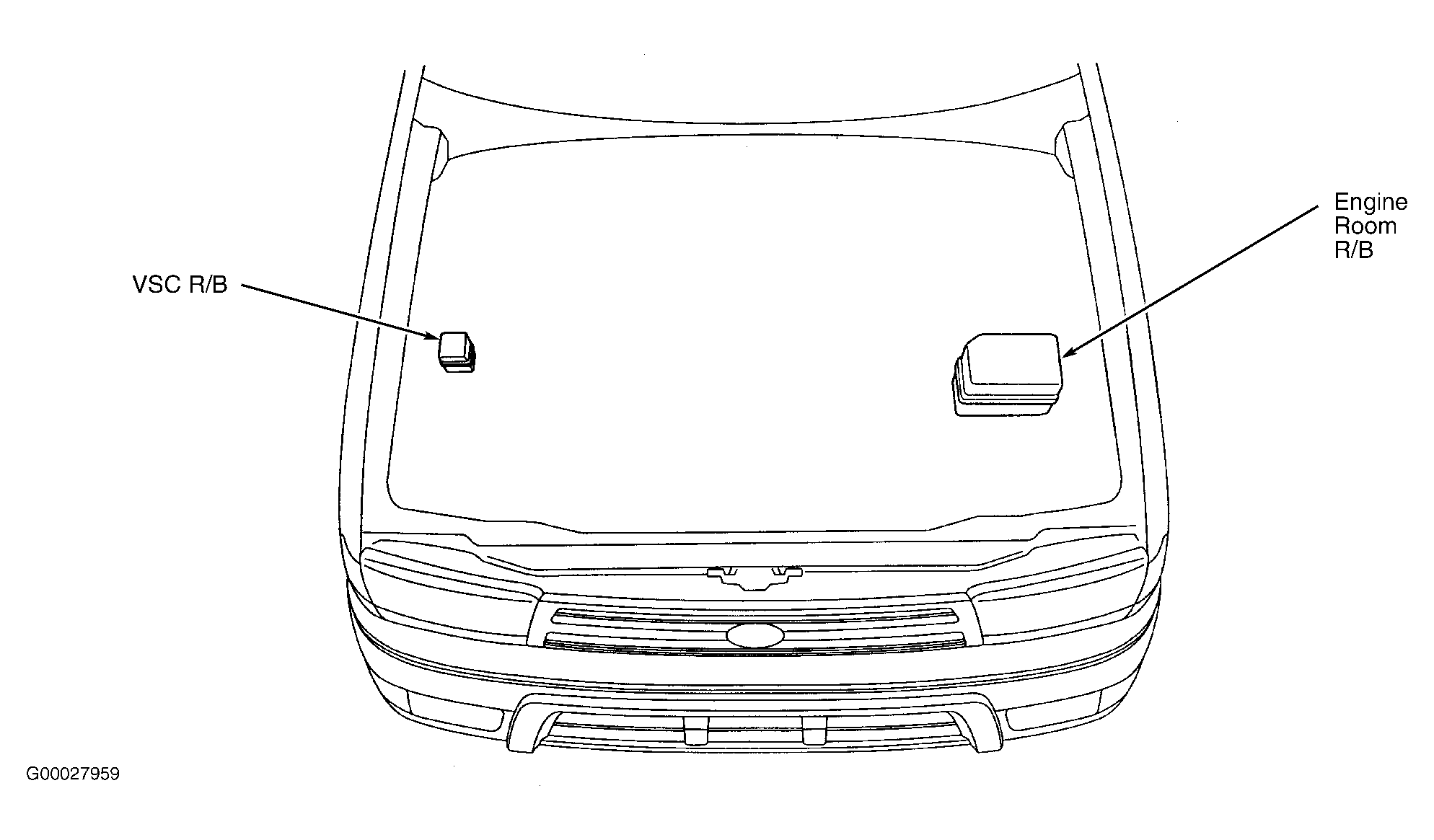

| Engine Room R/B | On left side of engine compartment, on inner fender panel. See Figure. |
| VSC R/B | On right side of engine compartment. See Figure. |
