Oxygen Sensor Location (Fwd V6)

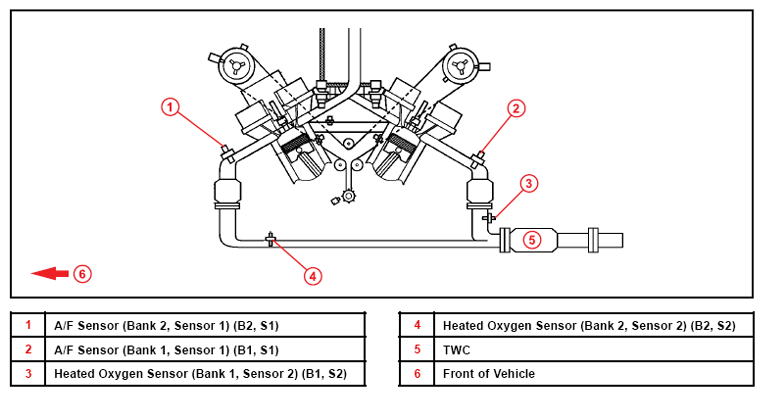

Fig 1: A/F And O2 Sensor Identification - FWD V6
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
