Oil And Filter: Inspection

Check engine oil quality.
Check the oil for deterioration, entry of water, discoloring or thinning.

If the quality is visibly poor, replace the oil.
1. Oil grade:
  1. API grade SJ, Energy-Conserving or ILSAC multigrade engine oil. SAE 5W-30 is the best choice for your vehicle, for good fuel economy, and good starting in cold weather.

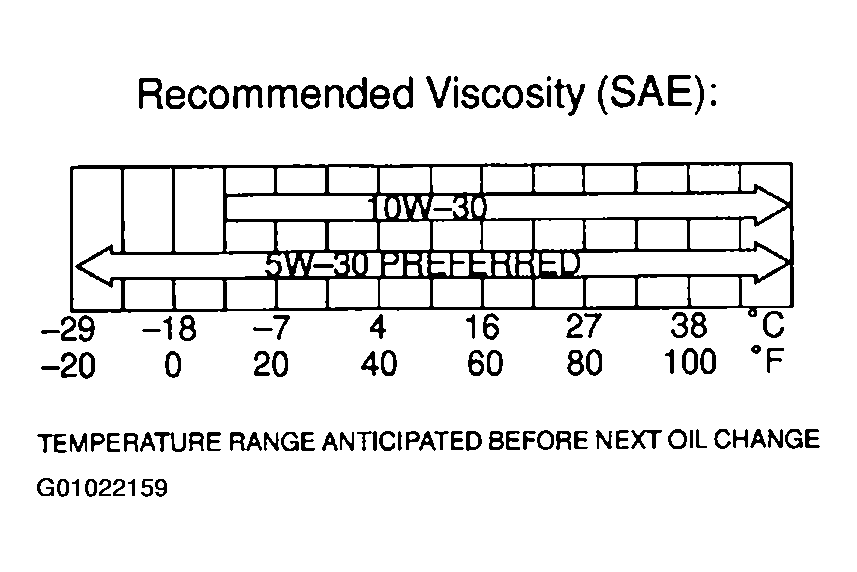

Fig 1: Displaying Recommended Viscosity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Check engine oil level.
The oil level should be between the low level and full level marks on the dipstick.
Check oil level.
The oil level should be between the "L" and "F" marks on the level gauge. If low, check for leakage and add oil up to the "F" mark. If low, check for leakage and add oil up to the full level marks.
NOTE:
- When inserting the oil dipstick, insert the curved tip of the dipstick facing the same direction as the curve of the guide.
- If the dipstick gets caught while inserting it, do not force it in. Reconfirm the direction of the dipstick.
Remove oil pressure switch.
Using SST, remove the oil pressure switch.
1. SST 09816-30010

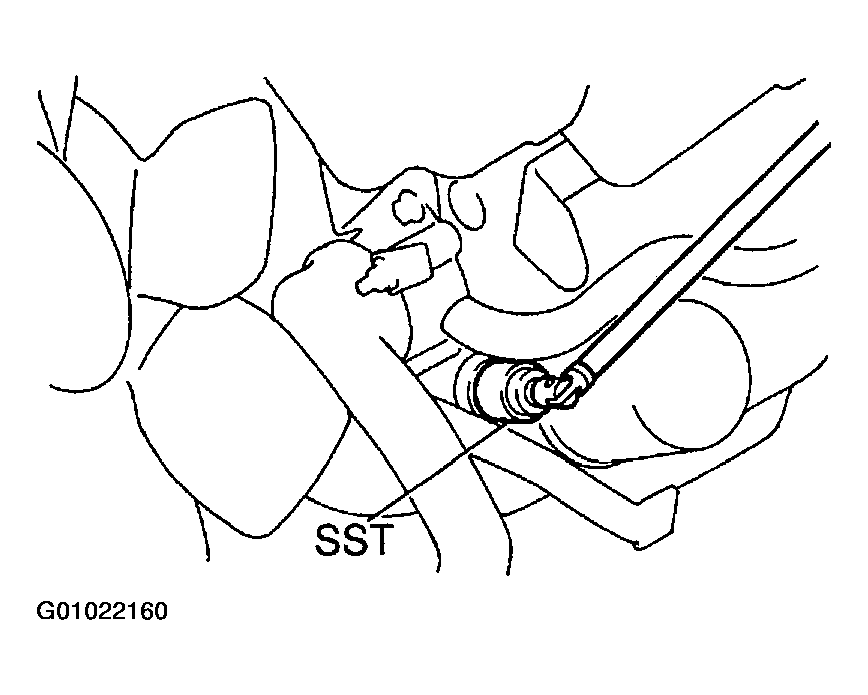

  Fig 2: Removing Oil Pressure Switch Ussing SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install oil pressure gauge.
Warm up engine.
Allow the engine to warm up to normal operating temperature.
Measure oil pressure.
Oil pressure:

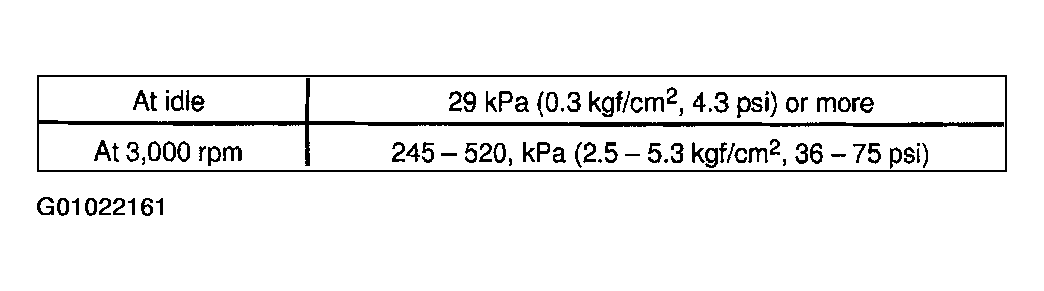

Fig 3: Displaying Oil Pressure Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove oil pressure gauge.

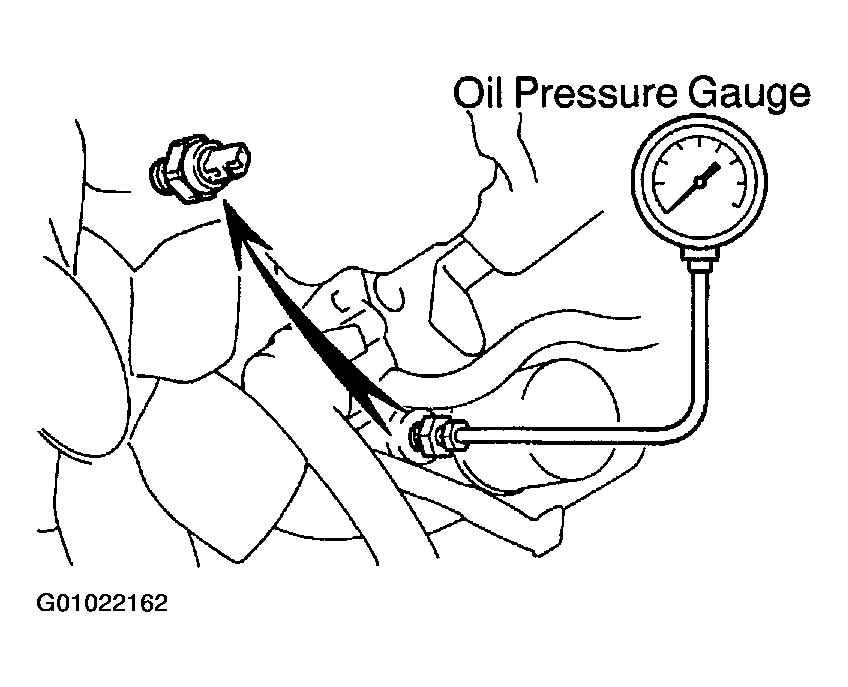

Fig 4: Displaying Oil Pressure Gauge
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install oil pressure switch.
1. Apply adhesive to 2 or 3 threads.
  1. Adhesive:Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

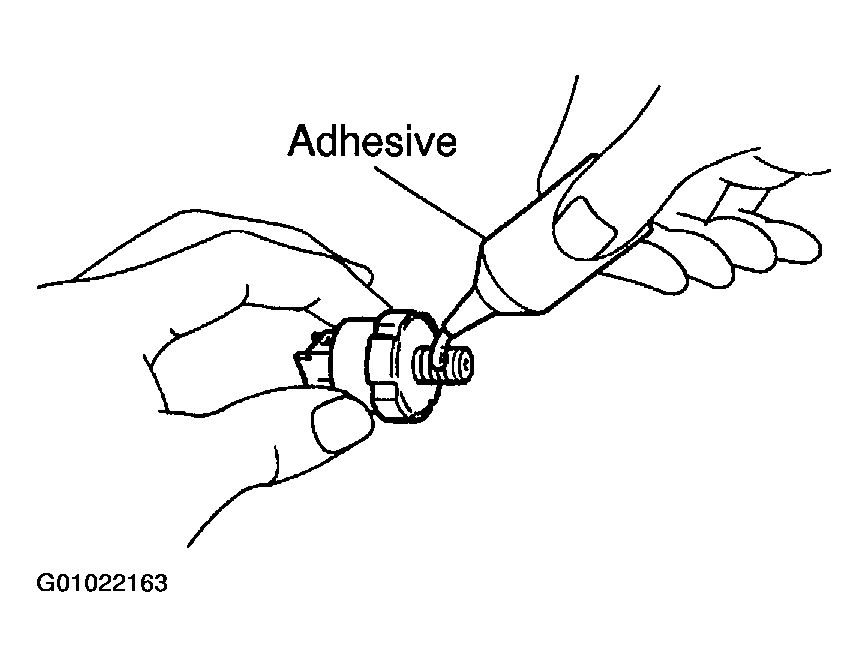

    Fig 5: Applying Adhesive To Oil Pressure Switch
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, install the oil pressure switch.
  1. SST 09816-30010
  2. Torque:15 N.m (150 kgf.cm, 11 ft.lbf)
Start engine and check for leaks.
