Oil Cooler: Components

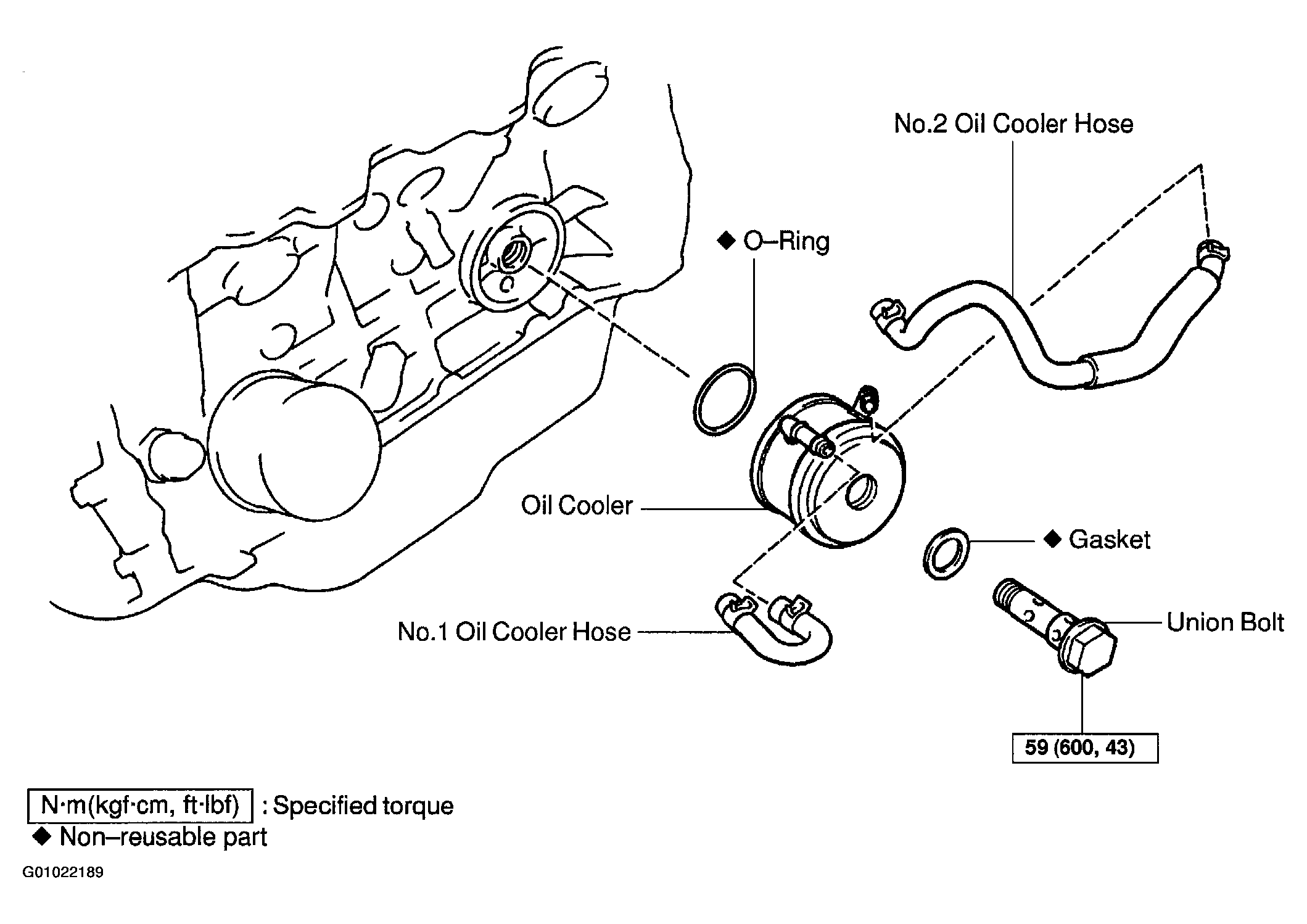

Fig 1: Identifying Oil Cooler Components
G01022189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
