Oil Pump: Reassembly

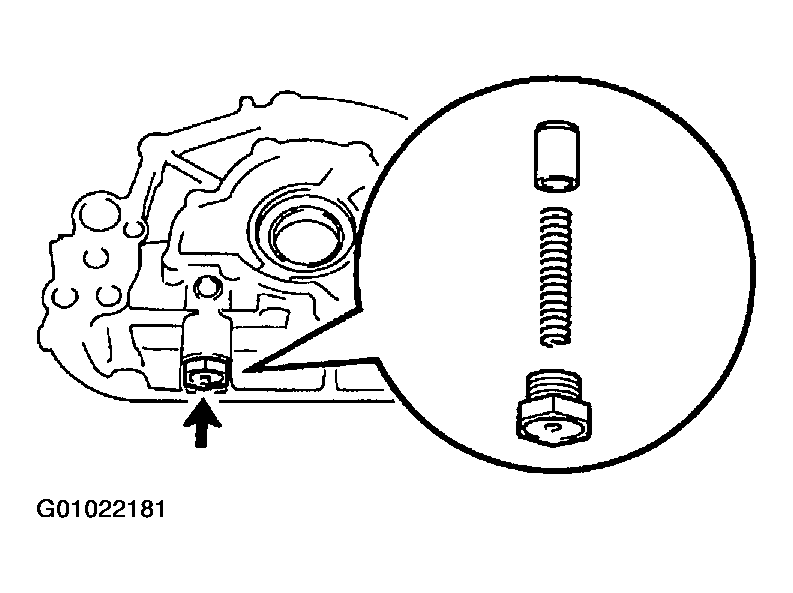

Install relief valve.
Install the relief valve, compression spring, new gasket and plug.

Fig 1: Installing Relief Valve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

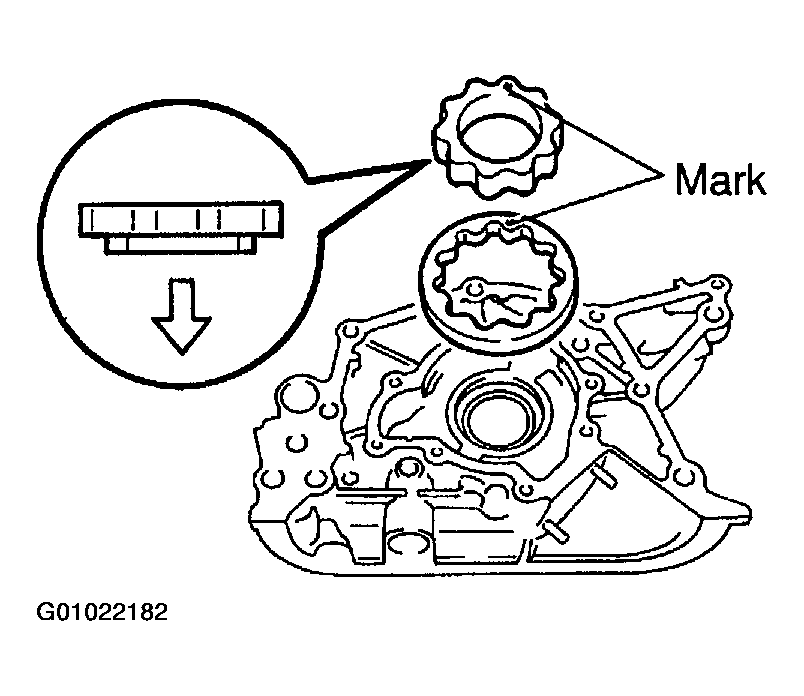

Install driven and drive rotors.
1. Install the drive and driven rotor.
  NOTE:
  Place the drive and driven rotor into pump body with the marks facing the pump body cover side.

  Fig 2: Installing Driven & Drive Rotors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

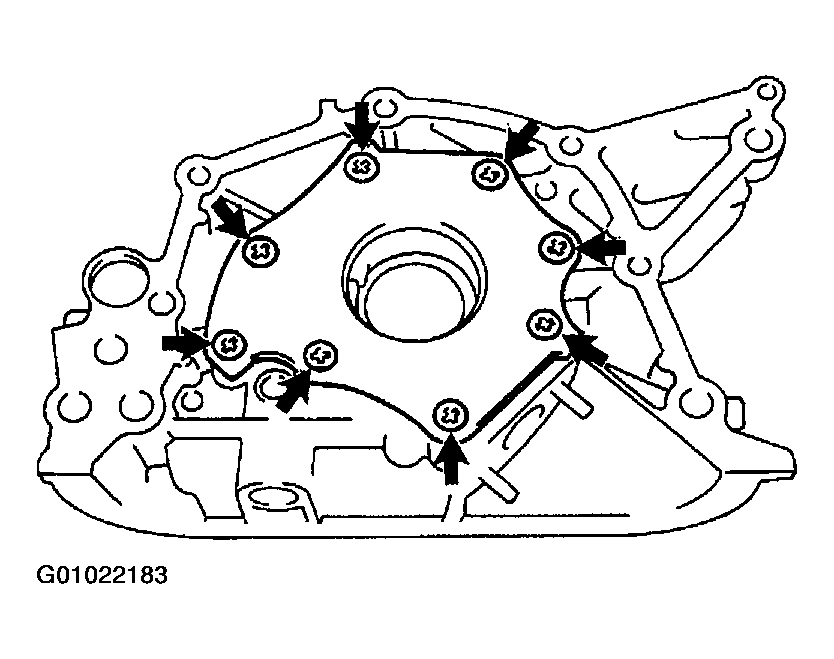

2. Install the pump body cover with 8 screws.
  1. Torque: 10 N.m (105 kgf.cm, 8 ft.lbf)
  Fig 3: Installing Pump Body Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
