System Tests: ECM

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

From ECM and cruise control voltage and resistance values, see Fig 1.

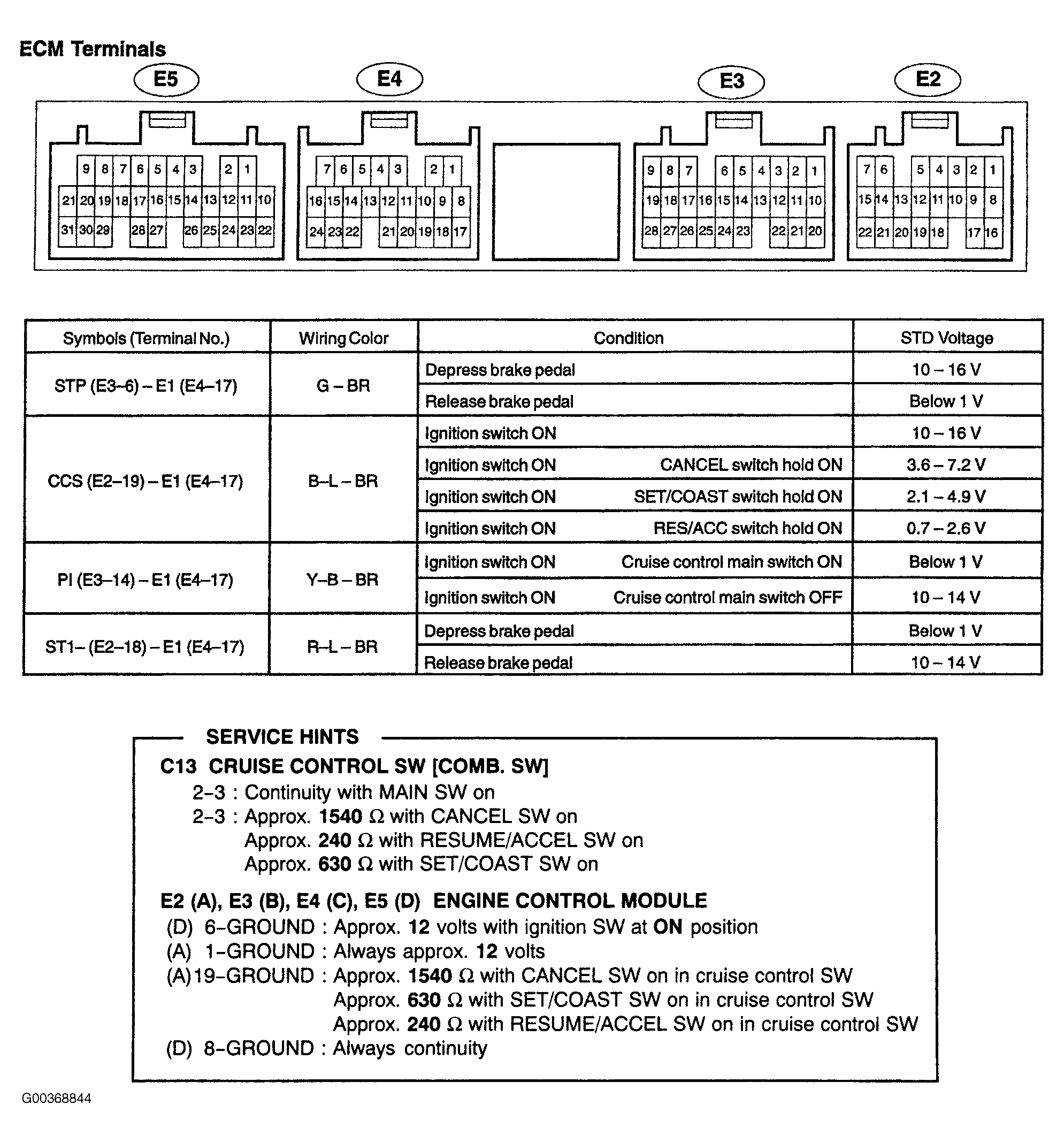

Fig 1: Identifying ECM and Cruise Control Voltage And Resistance Values
G00368844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
